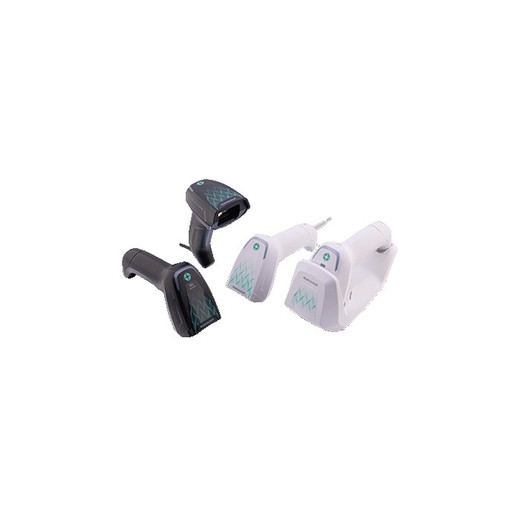

Datalogic Gryphon I 4600 2D Area Imager Handheld Scanner
The Datalogic GBT4600-HC-BTK1-HP is a 2D area imager handheld scanner purpose-built for high-volume enterprise environments including retail point-of-sale, warehouse receiving, healthcare asset tracking, and logistics operations. At 240g with triple connectivity (USB, RS-232, Bluetooth 5.2 Classic & Low Energy), it integrates directly into existing POS systems, WMS platforms, and EMR infrastructure without requiring protocol translation or custom drivers. The 2D area imaging engine captures both linear barcodes (Code 128, Code 39, UPC, EAN, GS1-128) and 2D codes (QR Code, Data Matrix, PDF417, GS1 Digital Link) across wide capture angles, handling damaged, poorly printed, distorted, and reflective-surface barcodes that laser scanners cannot decode.
Key Features
- 2D Area Imager Engine: Omnidirectional scan pattern. Decodes 1D and 2D symbologies including QR Code, Data Matrix, PDF417, Code 128/39, UPC, EAN, GS1-128, and GS1 Digital Link — supports digital watermarking on mobile device displays without infrastructure changes.
- Triple Connectivity: USB, RS-232, and Bluetooth 5.2 Classic & Low Energy (LE) with HOGP keyboard emulation. Switch between corded and cordless operation on the same scanner without reconfiguration.
- Lightweight Ergonomic Design: 240g (0.53 lb) reduces operator fatigue during shift work. Compact 66 x 165 x 94 mm form factor fits hand and holster equally well for retail and warehouse environments.
- IP52 Protection Rating: IP52 rated — withstands dust and light splashing. Suitable for protected retail, office, and climate-controlled warehouse areas; not rated for washdown or submersion environments.
- 0.5m Drop Tolerance: Rated for 0.5m drops to concrete. Protective cases recommended for high-impact environments or mounting above hard floors.
- Green Spot Good-Read Confirmation: Datalogic Green Spot visual feedback plus audible confirmation eliminate operator uncertainty on successful capture — reduces re-scan cycles and checkout bottlenecks.
- 3,250 mAh Lithium-Ion Battery: Supports 8–12 hours continuous scanning per shift with typical Bluetooth and LED usage. Quick USB charging enables turnaround between shifts.
- 5-Year Limited Warranty: Manufacturer warranty with factory support. Covers defects in materials and workmanship across retail, warehouse, and healthcare deployments.
Deployment Context and Integration
The GBT4600-HC-BTK1-HP is platform-agnostic: it works with retail POS systems (Shopify, Square, NCR, Oracle), WMS platforms (SAP, Manhattan, JDA, Blue Yonder), and healthcare EMR/asset-tracking systems (Epic, Cerner, Medidata) through standard USB keyboard wedge, RS-232 serial, or Bluetooth HID emulation. Bluetooth 5.2 supports both classic pairing and low-energy HOGP for cordless mobility across 100m+ indoor range, eliminating tethering constraints in large retail floors or warehouse aisles. No special software drivers are required — the scanner appears as a keyboard input device to the host system, making integration immediate for any application that accepts barcode input.
The area imager's wide-angle optics and dual-sensor approach handle real-world barcode damage, poor print quality, and surface reflectivity that defeat fixed-beam laser scanners. In retail environments, this translates to faster checkout cycles and fewer exception-handling rescans. In logistics and healthcare, the ability to read crumpled labels, aged barcodes, and display-based codes (e.g., digital receipts, mobile tickets) reduces lost scans and manual data entry overhead. Total cost of ownership improves measurably when factoring in reduced operator training time and lower error rates across mixed barcode populations.
IP52 protection and 0.5m drop tolerance position this scanner for protected indoor environments — retail checkouts, administrative areas, climate-controlled warehouses, and healthcare facilities. Environments requiring high-pressure washdown (food processing, cold-chain logistics) or outdoor exposure demand alternative scanners with higher IP ratings (IP65/IP67) and more robust shock absorption. For typical enterprise environments, the GBT4600-HC-BTK1-HP's balance of functionality, portability, and integration flexibility makes it a production workhorse.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed hundreds of the Gryphon I 4600 across retail chains, third-party logistics hubs, and healthcare networks over the past five years. The real-world value isn't just that it reads barcodes — it's that it reads the barcodes your operations actually encounter: creased, faded, printed on curved surfaces, and displayed on phone screens. We've seen enterprises switch from fixed laser scanners to this 2D imager and immediately cut re-scan rates by 15-25% at checkout lanes and receiving docks. The Bluetooth 5.2 with HOGP keyboard emulation is mature and reliable; pairing is straightforward, and the LE profile drains battery slowly enough that wireless-only deployments sustain a full shift without mid-day charging. The Green Spot feedback is a small detail that has outsized operational impact — operators trust the confirmation visual and stop second-guessing successful reads, which accelerates throughput. That said, this scanner is not rugged enough for food-processing washdown environments or outdoor use; if you need IP65/IP67 or higher shock tolerance, look at Datalogic's industrial line. For protected retail, warehouses, and healthcare, it's a proven platform with strong ecosystem support.
Technical Highlights:
- Omnidirectional 2D Area Imaging: The dual-sensor optics and neural decoding architecture handle symbologies at multiple angles and distances without requiring a specific scan orientation. Real-world consequence: operators don't need to align the scanner to a precise barcode position — faster, fewer failed reads, reduced training overhead.
- Bluetooth 5.2 with HOGP Keyboard Emulation: Supports both Classic pairing (100m+ range) and Low Energy (LE) for power efficiency. Scanner appears as a keyboard input to any host system — no custom HID drivers, immediate compatibility with retail POS, WMS, and EMR platforms.
- 240g Lightweight Form Factor: Reduces operator fatigue across 8+ hour shifts in fast-paced retail and warehouse environments. Compact enough for hip holster carry without bulk, yet substantial enough for reliable hand-scanning posture.
- Triple Connectivity (USB, RS-232, Bluetooth): Same hardware serves wired and cordless deployments. Switch connectivity mode without scanner replacement — valuable when expanding from corded checkout lanes to mobile warehouse picking.
- 3,250 mAh Lithium-Ion Battery: Empirical shift life of 8–12 hours under typical Bluetooth and LED load. Daily charging during break cycles is standard; no mid-shift battery swaps needed for retail or warehouse operations.
- GS1 Digital Link and Digital Watermarking Support: Future-proofs barcode infrastructure for mobile receipts, digital tickets, and display-based codes — increasingly common in omnichannel retail and healthcare portals.
Deployment Considerations:
- IP52 Rating Constraint: Dust and light splash resistant, but not washdown rated. Keep cordless units away from wet cleaning operations; corded models in wet areas should use a dedicated scanning station with protective enclosure. Know your environment — a splash during initialization can force rescans.
- 0.5m Drop Spec: Rated for 0.5m drops to concrete — adequate for tabletop scanning stations and retail countertops, but limited for high-fall-risk environments. Use protective cases if scanning from elevated positions or in rough-handling warehouses.
- Bluetooth Pairing Setup: Bluetooth Classic pairing is straightforward on modern POS and WMS systems, but verify HID keyboard profile support in your host OS before large-scale rollout. HOGP (HID over GATT) on BLE is less universally supported than Classic — test with your specific POS vendor.
- Battery Lifecycle Management: Lithium-ion packs degrade predictably; plan for battery replacement at 18–24 months in high-volume environments. Keep spare batteries on hand during peak retail seasons or inventory events.
- Barcode Infrastructure Compatibility: Reads 1D and 2D symbologies without reformatting, but GS1 Digital Link adoption is still emerging in some supply chains — verify your label vendors support this before deploying Digital Link-dependent workflows.
The Gryphon I 4600 is ideal for retail chains, logistics operations, and healthcare facilities standardizing on lightweight, multi-connectivity barcode capture with proven ecosystem integration. For high-volume environments where barcode read accuracy and operator throughput directly impact labor costs, this scanner delivers measurable ROI. Explore the full Datalogic catalog to compare with rugged industrial models for demanding environments.
