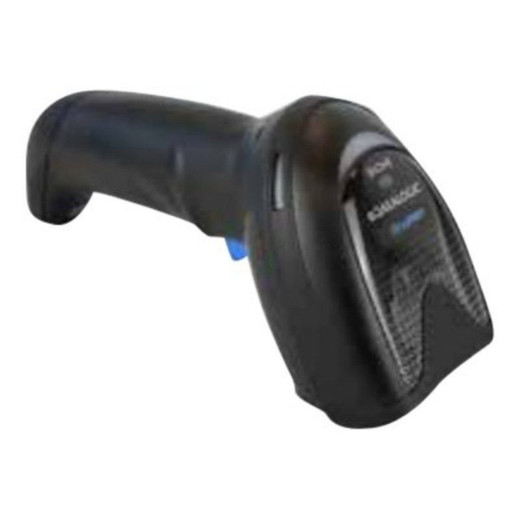

Datalogic GBT4500-HC-BTK1 2D Handheld Barcode Scanner
The Datalogic GBT4500-HC-BTK1 is a 2D area imager scanner built for retail checkouts, warehouse picking, and light industrial data capture. Unlike single-line laser scanners that require straight-on barcode alignment, the 2D area imager technology captures the entire barcode field, which means you can read damaged, poorly printed, or angled barcodes without repositioning — a real productivity gain in real-world environments where label quality varies.
Key Features
- 2D Area Imager Engine: Reads 1D and 2D barcodes, postal codes, and composite codes from nearly any angle without manual adjustment. Eliminates the scan-and-reposition frustration that slows high-volume operations.
- Snappy Decoding: Factory-tuned decoding processes diverse barcode formats — Code 128, EAN, UPC, QR, DataMatrix, PDF417, and others — without requiring operator configuration. Reduces time-to-deployment compared to laser scanners needing mode switching.
- Datalogic Green Spot Feedback: Visual good-read indication (green LED) plus audible confirmation removes ambiguity about whether a scan succeeded, reducing keying errors and re-scans in high-throughput retail and warehouse settings.
- Lightweight Ergonomic Design at 222g (0.49 lb): Designed for extended hand-held use without fatigue. The compact 64 x 160 x 89 mm form factor accommodates various grip styles and hand sizes, critical for all-shift operators in fast-moving environments.
- Multiple Wired Connectivity Options: USB, RS-232, and Keyboard Wedge interfaces ensure compatibility with legacy POS terminals, modern retail systems, and warehouse management software without needing a separate adapter. Keyboard Wedge mode treats the scanner as a keyboard input device, simplifying integration with existing software.
- HD (High-Density) Variants Available: If your operation handles small or densely-printed barcodes, HD-equipped versions deliver sharper decoding performance without swapping hardware platforms — supports future scaling without full replacement.
- 5-Year Limited Warranty: Covers defects in materials and workmanship, protecting your capital investment and reducing risk of unplanned downtime in mission-critical retail and warehouse operations.
Integration & Compatibility
The GBT4500-HC-BTK1 connects directly to POS systems, mobile workstations, and enterprise software via standard USB or RS-232 serial connections. Keyboard Wedge mode allows drop-in replacement of older barcode scanners without software modification — the scanner appears as a keyboard to your application, eliminating integration complexity. Centralized configuration reduces IT overhead when deploying across multiple locations, and Datalogic's factory support and certified repair network ensure rapid issue resolution if hardware fails.
When to Choose a Different Model

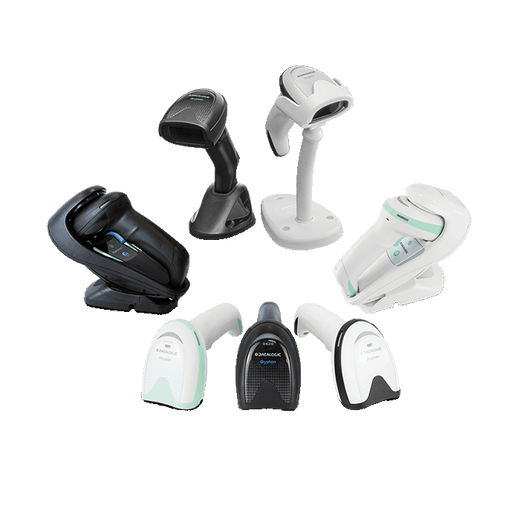

The GBT4500-HC-BTK1 is strictly wired — organizations requiring mobile scanning in large warehouses or outdoor receiving areas should evaluate wireless variants in the Gryphon family. If you need integration with mobile devices or tablets, consider Bluetooth-enabled alternatives. For applications requiring extreme durability ratings or industrial-hardened housings, higher-tier industrial imagers may offer additional environmental protection.
Frequently Asked Questions
Q: Is the GBT4500-HC-BTK1 suitable for small barcode applications?
A: Yes. HD (high-density) variants are available for small or densely-printed barcode environments. Standard and HD versions share the same form factor and connectivity, allowing you to standardize on one platform while adapting imaging capability to your specific barcode label size.
Q: What's the warranty on the GBT4500-HC-BTK1?
A: 5-year limited warranty against defects in materials and workmanship. This covers typical retail and warehouse use and includes access to Datalogic's authorized repair network for rapid turnaround if hardware fails.
Q: Can the GBT4500-HC-BTK1 work with my legacy POS system?
A: Yes. The scanner supports USB, RS-232, and Keyboard Wedge connectivity. RS-232 and Keyboard Wedge modes ensure compatibility with older POS terminals; USB supports modern systems. No special drivers required for Keyboard Wedge operation.
Q: Does the GBT4500-HC-BTK1 require software configuration for different barcode formats?
A: No. The Snappy decoding engine automatically recognizes and decodes 1D, 2D, postal, and composite barcodes without operator intervention or mode switching. This simplifies deployment and reduces training overhead.
Q: Is the GBT4500-HC-BTK1 wireless?
A: No, it is wired only (USB, RS-232, Keyboard Wedge). The model is designed for fixed-location retail, office, and light industrial scanning. Wireless mobility requires a different model from the Gryphon family.
Q: What barcode types does the GBT4500-HC-BTK1 read?
A: The scanner reads 1D barcodes (Code 128, EAN, UPC, Code 39, etc.), 2D codes (QR, DataMatrix, PDF417), postal codes, and composite codes. The 2D area imager captures all these formats without requiring format-specific configuration.
The GBT4500-HC-BTK1 represents a solid, no-frills 2D area imager for high-volume scanning environments. The Snappy decoding engine eliminates the single biggest pain point of older laser scanners — the requirement to position barcodes at exact angles for successful reads. Real warehouses and retail floors have damaged labels, worn stickers, and angled placements; the 2D area imager captures them all. At 222g, the scanner is light enough for all-shift hand-held use without operator fatigue, which directly correlates to accuracy and throughput in fast-moving facilities.
Technical Highlights:
- 2D Area Imager (vs. Laser): Reads barcodes from multiple angles without manual reposition. Laser scanners require straight-on alignment; the GBT4500-HC-BTK1 handles real-world label wear and placement variance without additional handling steps.
- 222g Lightweight Design: Under half a pound means operators can scan continuously for 8+ hours without hand fatigue or dropped accuracy. Critical in retail checkouts and warehouse picking where volume and speed are tied to operator comfort.
- Multiple Connectivity (USB / RS-232 / Keyboard Wedge): Keyboard Wedge mode is a silent killer feature — it makes the scanner appear as a keyboard to legacy POS systems, eliminating custom integration work. USB and RS-232 cover modern and vintage systems without adapter requirements.
- Factory-Tuned Decoding: Recognizes 1D, 2D, postal, and composite codes automatically. No barcode-mode switching needed — reduces deployment time and operator retraining compared to scanners requiring manual format selection.
Deployment Considerations:
- Wired Only: USB/RS-232 tethering is fine for fixed retail checkouts and warehouse workstations, but mobility is constrained. If operators roam large warehouse floors or outdoor receiving areas, you'll need wireless alternatives from the Gryphon family or a separate wireless product line.
- Integration Effort: Keyboard Wedge integration is genuinely zero-effort; USB and RS-232 require serial/USB drivers. If your system is 10+ years old, verify Keyboard Wedge compatibility before purchase to avoid surprises during deployment.
Position this scanner for retail point-of-sale, office document/mail scanning, and fixed warehouse workstations where operators stay in one location. High-density variants are a smart hedge if label sizes vary across your facility — standardize hardware, swap imaging modules as needed.
