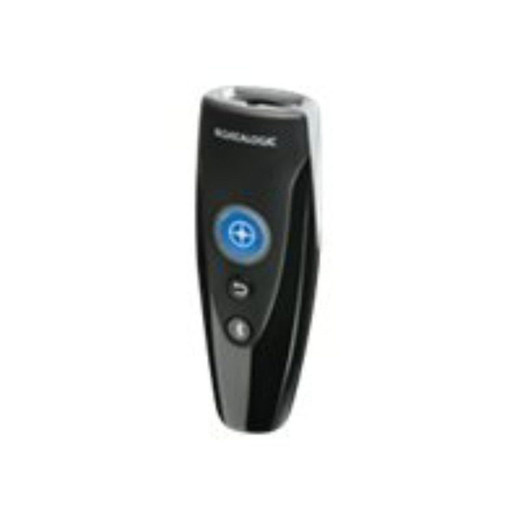

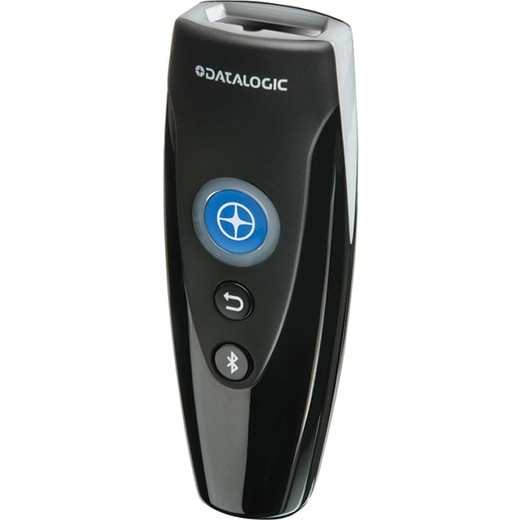

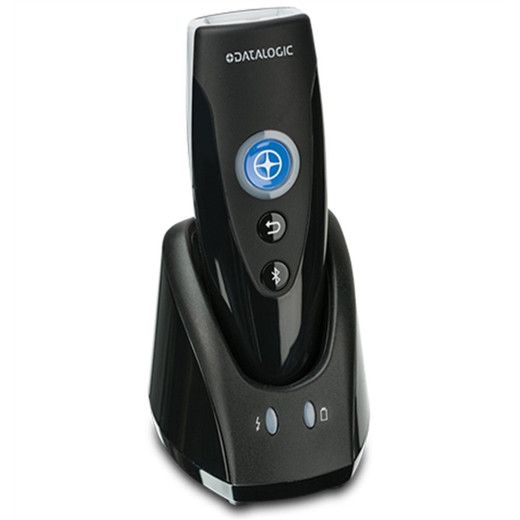

Datalogic DBT6400-BK 2D Pocket Barcode Scanner
The Datalogic DBT6400-BK is a compact 2D area imager designed for mobile field operations where cordless scanning and portability trump industrial ruggedization. At 82 grams and measuring 46 x 89 x 23 mm, this pocket-sized scanner connects via Bluetooth 4.0 to smartphones, tablets, and computers running Android, iOS, or Windows — eliminating the need for dedicated mobile terminals in light-to-medium-intensity workflows. The 2D imaging engine reads 1D barcodes (Code 128, EAN-13) and complex 2D formats (QR Code, Data Matrix, Aztec) quickly, with a 650 nm laser sensor wavelength optimized for typical scan distances in retail, logistics, and field asset management.
Key Features
- 2D Area Imager (650 nm wavelength): Captures both linear and matrix codes in a single optical pass. The imager approach (as opposed to laser line scanning) tolerates skewed or rotated barcodes better, which matters when field workers are scanning in awkward positions or lighting.
- Bluetooth 4.0 with 25-meter range: Low-power wireless means the scanner won't drain host device batteries aggressively, and 25 meters of range covers most warehouse aisles and outdoor lot operations without line-of-sight constraints. Useful for tethered workflows where the host device stays visible but the scanner roams.
- 700 mAh battery, ~3,000 reads per charge: A full shift of moderate scanning (e.g., 300–400 reads per hour) completes on one charge. Heavy-volume operations (1,000+ reads daily) will require a second unit or a vehicle charging dock. Plan battery management accordingly—a single charger for a 10-person team is insufficient.
- Cross-platform compatibility (Android, iOS, Windows): Works with standard barcode-capture SDKs and commercial apps (Zebra DataWedge, Symbol Enterprise Browser, iOS app store barcode libs). No proprietary OS required, which simplifies IT integration and reduces licensing overhead.
- Ultra-portable form factor (82 g): Fits shirt or pants pockets without bulk. Light enough for all-day wear in field harnesses, vehicle mounts, or wrist straps. Critical for operations where workers alternate between scanning and hands-on tasks (picking, packing, asset verification).
- 1-Year Limited Warranty: Standard manufacturer coverage against defects. Covers internal failure but not accidental drops, water damage, or battery degradation. Extended warranty available through authorized partners if multi-year coverage is required.
Deployment Context & Tradeoffs
The DBT6400-BK bridges smartphone barcode apps (often unreliable camera focus, slow processing) and industrial handheld terminals (heavy, $800+, overkill for occasional scanning). Choose this if workers already carry smartphones or tablets—the scanner becomes an input peripheral rather than a separate device to manage. Avoid this in high-drop-risk environments (warehouse floors with 6-foot shelving, outdoor construction sites) because the pocket-sized plastic housing lacks industrial hardening (no IP67 rating, no shock-rated case). The 3,000-read battery window suits one-shift operations; multi-shift deployments require chargers at each location or a hot-swap battery strategy.
Integration & Compatibility
Pairs via standard Bluetooth without special firmware. Most barcode scanner applications and warehouse automation platforms recognize HID keyboard input from Bluetooth devices natively, so integration is typically plug-and-play. Refer to your mobile app or MDM solution documentation to confirm Bluetooth 4.0 support; older devices (iOS 9 or earlier, Android 4.x) may have pairing inconsistencies. Consult the mobile data capture selection guide if you are evaluating multiple scanner form factors.
What's in the Box
1x Datalogic DBT6400-BK pocket scanner, 1x USB charging cable, 1x quick-start guide (printed), 1x wrist strap.
Frequently Asked Questions
Q: What barcode formats does the DBT6400-BK read?
A: The 2D area imager reads 1D formats (Code 128, EAN-13, UPC-A, Codabar) and 2D codes (QR Code, Data Matrix, PDF417, Aztec). Exact supported list is in the product datasheet; most standard retail and logistics barcodes are included.
Q: Can I use the DBT6400-BK with an iPad or Android tablet?
A: Yes. The scanner pairs via Bluetooth 4.0 with any iOS or Android device that supports standard Bluetooth HID input. The host device then runs a barcode-capture app (native SDK, web form, or commercial app) that interprets the scanner's output.
Q: How often do I need to charge the battery?
A: Approximately 3,000 reads per 700 mAh charge. If your team performs 300 reads per person per shift, one scanner handles one shift. High-volume operations (1,000+ reads/person/shift) should plan for two scanners or a mid-shift top-up using a USB charger.
Q: Is the DBT6400-BK waterproof?
A: No. There is no IP rating specified, so this scanner is designed for indoor, dry environments. Occasional splashes may not cause immediate failure, but regular exposure to rain, washdown, or dust will shorten its lifespan. If you need water resistance, consider an industrial-rated alternative.
Q: What's the warranty, and is extended coverage available?
A: The DBT6400-BK includes a 1-Year Limited Warranty against manufacturing defects. Extended warranty and support plans may be available through authorized partners; contact your reseller for options.
Q: Can I mount the DBT6400-BK to a forklift or vehicle?
A: The scanner itself is too small for fixed mounting, but you can use an optional third-party cradle or wrist strap to secure it to equipment. Confirm compatibility with the cradle vendor before purchasing.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Datalogic DBT6400-BK occupies a strategic position in the mobile data capture spectrum: it bridges smartphone-based scanning apps (unreliable focus, slow processing, battery drain) and industrial handheld terminals (heavy, expensive, overkill for occasional workflows). For field teams already deploying iOS or Android devices, the DBT6400-BK becomes a low-cost input peripheral. It's most effective in environments where workers alternate between scanning and hands-on tasks—picking, asset audits, delivery verification—where a dedicated terminal would impede mobility.
Technical Highlights:
- 700 mAh battery, ~3,000 reads per charge: One shift of moderate-intensity scanning (300–400 reads/person) completes on a single charge. Plan for a charger per 2–3 scanners if your team works rotating shifts.
- Bluetooth 4.0, 25-meter range: Low-power wireless avoids aggressive host-device battery drain. The 25-meter range covers typical warehouse aisles and outdoor lots without line-of-sight constraints—useful for tethered workflows where the host stays visible but the scanner roams.
- 2D area imager (650 nm, 1D + 2D formats): Imager-based approach tolerates skewed or rotated codes better than laser-line scanners, which is real value in field operations where workers scan at awkward angles under poor lighting.
- 82-gram weight, pocket form factor: All-day wearability without fatigue. Critical for operations where workers alternate hands and need to remain mobile without encumbrance.
Deployment Considerations:
- No IP rating — avoid wet or dusty environments. This scanner lacks industrial hardening (no IP67, no shock rating). It's designed for controlled indoor spaces (retail floors, climate-controlled warehouses). Washdown facilities, outdoor construction sites, and high-drop-risk environments will wear it out quickly.
- 3,000 reads defines the shift window. High-volume operations (1,000+ reads per person per day) must either deploy two scanners per worker or position chargers strategically. A single charger for a 10-person team creates bottlenecks at shift change.
- Bluetooth pairing is straightforward but requires host-device compatibility verification. Older devices (iOS 9, Android 4.x) may have pairing inconsistencies. Test against your deployed OS versions before full rollout.
Position the DBT6400-BK for small-to-medium teams performing light-to-moderate scanning in controlled environments—field asset audits, last-mile delivery verification, stock-take operations where BYOD or tablet-based workflows already exist. Skip this if you operate high-drop-risk warehouses, washdown facilities, or need integrated inventory management with rugged enterprise terminals.
