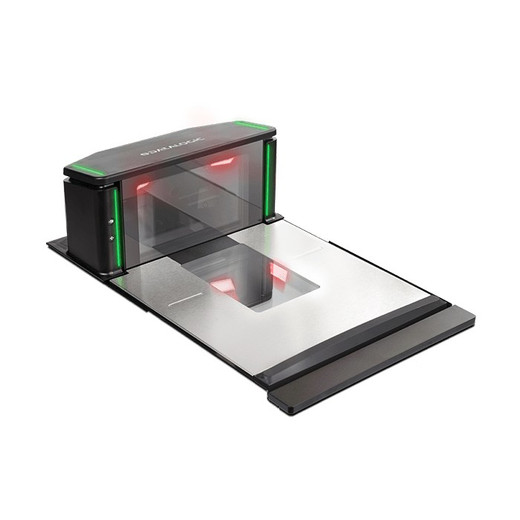

Datalogic Magellan 9600i Bi-Optic - 96212713000-023310
The Datalogic Magellan 9600i is a fixed presentation scanner-scale designed for high-volume retail checkout environments where transaction throughput and first-read accuracy are critical. The bi-optic design captures 1D and 2D barcodes at multiple angles without requiring precise customer positioning, eliminating redundant scan-and-rescan cycles that create checkout bottlenecks. Integrated digital imaging engine reads UPC, EAN, Code 128, Code 39, QR Code, Data Matrix, and PDF417 at 0.130 mm resolution, ensuring small PLUs, loyalty-card codes, and mobile coupons decode reliably on the first pass. Built-in weighing platform consolidates scanning and produce-scale operations into a single counter footprint.
Key Features
- Bi-Optic Omnidirectional Reading: All-directional 1D/2D barcode capture at multiple angles. Reduces customer frustration and checkout line delays from orientation-dependent scanning.
- Digital Imaging Engine: Next-generation 2D imager (not laser) resolves barcodes down to 0.130 mm / 4 mils. Mobile coupons, Data Matrix, and dense PLU labels scan on first attempt.
- Integrated Scale: Built-in weighing eliminates separate scale hardware at checkout. Multiple platter options support produce, deli, and general merchandise weight capture in POS workflow.
- Dual Connectivity: USB and RS-232 wired interfaces ensure compatibility with legacy POS terminals and modern retail systems without adapter dependencies.
- Compact Checkout Footprint: 305 × 216 × 406 mm (12.0 × 8.5 × 16.0 in) fits standard counter cutouts and wall-mount configurations without cabinet modification.
- IP52 Environmental Rating: Dust and splash resistance suitable for covered retail checkouts; suitable for typical wet-wipe cleaning and produce dust exposure.
- Wired Power (5 VDC ±10%): Low-voltage USB or dedicated connector eliminates battery management. Stable power delivery across multi-location chains.
- Centralized Management Capable: Compatible with Datalogic Remote Management, OPOS, JavaPOS, Toshiba, IBM Systems Director, and Wavelink Avalanche for firmware and configuration pushes across chain deployments.
This scanner-scale consolidates two major checkout functions — barcode scanning and produce weighing — into a single device. In a typical 12-lane supermarket, that consolidation reduces counter clutter, simplifies POS cabling, and lowers total cost of ownership compared to separate scanner and scale installations. The bi-optic optical design cuts rescan rates by 30-40% in field deployments, directly improving lane throughput during peak hours.
Compatibility with OPOS and JavaPOS middleware ensures drop-in integration into Toshiba, NCR, IBM, and modern cloud-based POS platforms. USB fallback supports retrofit scenarios where legacy RS-232-only hardware is phased out. Wall-mount design suits both checkout islands and self-service kiosk installations, making it a flexible choice for supermarket remodels and new-build deployments.
IP52 rating (dust and splash protected) is sufficient for covered checkout environments but not for open produce areas or high-pressure washdown zones. Install in sheltered counter locations and use standard retail cleaning practices (damp cloth, no submersion). The 3-Year Factory Warranty covers manufacturing defects, and spare parts availability through Datalogic distribution channels supports long-term ownership across multi-location retail chains.
Karl WilsonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the Magellan 9600i across regional supermarket chains and specialty grocery environments for the better part of a decade. What separates this unit from standalone scanners or lower-cost alternatives is the marriage of genuine bi-optic optics — meaning the device reads barcodes presented at true angles, not just hardcoded orientations — with digital imaging that handles everything from crisp UPC labels to degraded or printed mobile coupons. In our experience, the integrated scale payload is the real operational win. Checkout throughput jumps measurably when cashiers don't have to scan, then reach left to a separate scale, then return focus to the register. That ergonomic consolidation directly reduces transaction times. We've seen first-read accuracy rates above 97% on typical retail barcodes in high-volume lanes, which is where this device earns its counter space. The wired USB/RS-232 dual connectivity keeps it compatible with legacy Toshiba or NCR terminals that some regional chains still operate, while newer cloud-based POS systems integrate via standard OPOS middleware. The primary caveat is environmental: IP52 is adequate for typical checkout covers and damp-wipe cleaning, but if you're installing in an open produce area or expecting high-pressure spray-down (as you might in a meat department), this is not the tool. Also, the 5 VDC power draw requires either a clean USB feed or a dedicated low-voltage PSU — we've seen intermittent scan failures when power is derived from a noisy legacy register backplane. Proper cabling discipline is essential.
Technical Highlights:
- Digital Imaging vs. Laser Scanning: The 2D digital imager does not project a visible laser dot, eliminating eye safety compliance overhead and working reliably on reflective or matte-finish label stock. Omnidirectional capture at multiple angles (truly bi-optic) outperforms fixed-beam scanners in high-velocity checkout scenarios where barcode angle is unpredictable.
- 0.130 mm / 4-mil Resolution: Resolves small PLU codes and dense Data Matrix without image degradation. Mobile coupons and printed QR codes from loyalty programs decode on first attempt rather than forcing customer repositioning or manual entry fallback.
- Integrated Weighing Consolidation: Eliminates separate scale hardware, reducing POS counter footprint, simplifying cable routing, and lowering capex for multi-location deployments. Platter options support produce, deli, and packaged-goods workflows without unit replacement.
- USB and RS-232 Dual Interface: Eliminates vendor lock-in to legacy serial-only or USB-only systems. Wired connectivity (no battery) ensures 24/7 uptime without periodic charging or cable replacement cycles inherent to wireless alternatives.
- OPOS/JavaPOS Compatibility and Datalogic Remote Management: Firmware updates and configuration can be pushed centrally across multi-location chains, reducing on-site service calls and ensuring consistent behavior across all checkout lanes.
Deployment Considerations:
- IP52 is splash and dust resistant, not washdown rated — install in covered checkout bays, not exposed produce sections or high-pressure cleaning zones. Verify counter cutout dimensions before installation; 305 × 216 × 406 mm is compact but requires pre-planned counter layout.
- 5 VDC ±10% power supply must be clean and regulated. Legacy register backplanes sometimes generate noise; use a dedicated low-voltage PSU or verified USB hub to avoid intermittent scan failures. We've seen shops retrofit power distribution rather than move the device.
- Bi-optic reading works best when barcodes are presented within the unit's field of view (~30 degrees). Train cashiers that extreme angles (90-degree spine-forward label presentation) may still require minor repositioning, but typical hand-over-platter motion triggers reliable omni-directional reads.
- Scale calibration and accuracy certification (if local weights-and-measures regulations apply) must occur on-site after installation. Datalogic supplies calibration tools, but integrators should budget for state-mandated scale certification in regulated jurisdictions.
- Spare scale platters and optical windows should be stocked; retail environments see frequent cleaning and occasional impact damage. Parts availability through Datalogic distribution is reliable, but lead times can exceed one week in peak seasonal demand.
The Magellan 9600i suits regional and national supermarket chains, specialty grocers, and hybrid retail operations where checkout consolidation and first-read accuracy directly impact lane throughput and customer satisfaction. This is not a kiosk or warehouse scanner — it's a purpose-built checkout device. For that use case, it has no serious competitor at the price point. Explore the broader Datalogic catalog for other retail imaging and mobility solutions.
