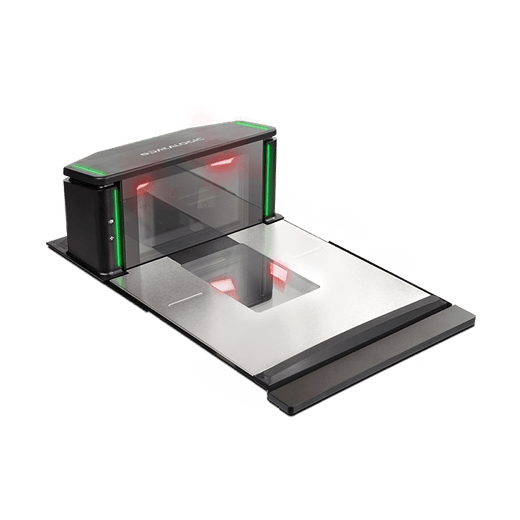

The Datalogic Magellan 9600i is a fixed retail scanner-scale designed for high-volume grocery and checkout-lane operations. This bi-optic unit combines next-generation digital imaging with integrated precision weighing, eliminating the operational overhead and counter real estate of separate barcode readers and scales. Four-camera architecture (2 horizontal, 2 vertical) captures barcodes in any orientation—1D (Code 128, UPC, EAN) and 2D (QR Code, Data Matrix, PDF417)—without requiring operator repositioning. The embedded Linux processor running IMX8 multi-core architecture delivers sub-second scan times and reliable capture under fluorescent lighting and high-speed throughput. Integrators deploying this unit in mixed-legacy and modern POS environments gain flexible connectivity: USB for contemporary systems, RS-232 for existing retail infrastructure, and Ethernet with IEEE 1588 for multi-lane synchronization.

Key Features

• Bi-Optic All-Directional Scanning: Four-camera 2D imaging system captures horizontal and vertical barcode orientations without operator rotation. Reduces scan-time variance and checkout errors in high-throughput lanes.
• Integrated Weighing Scale: Consolidated scanner-scale eliminates separate equipment footprint on checkout counter. Single unit handles produce-by-weight and packaged goods verification in one operation.
• 1D/2D Barcode Support: Reads Code 128, UPC, EAN (1D) and QR Code, Data Matrix, PDF417 (2D). Backward-compatible with legacy retail inventory; forward-ready for GS1 Digital Link and modern supply-chain workflows.
• USB & RS-232 Connectivity: Dual wired interfaces work with contemporary POS terminals (USB) and legacy retail systems (RS-232). Ethernet with IEEE 1588 enables multi-lane time synchronization and networked checkout configurations.
• Compact Counter Footprint: 305 × 216 × 406 mm (12.0 × 8.5 × 16.0 in), 6.6 kg (14.5 lb). Fits standard checkout counter depths; multiple platter options accommodate varying counter geometry.
• Retail-Grade Durability: Capacitive touch buttons and smooth surfaces support frequent sanitization and high-contact food-retail environments. Embedded Linux with multi-core processor handles sustained throughput without performance degradation.
• GS1 Digital Link Ready: Supports modern barcode standards and supply-chain data encoding. Bridges legacy 1D UPC systems to next-generation retail data exchange without parallel hardware.
• IEEE 1588 Precision Timing: Network synchronization across multiple lanes ensures consistent transaction logging and loss-prevention audit trails in large-scale retail operations.

In grocery and high-volume retail checkout, the 9600i eliminates the dual-equipment approach of separate scanner and scale. Traditional checkout lanes require two devices, two power draws, two mounting solutions, and two failure points. The Magellan 9600i consolidates both functions into a single imaging engine with integrated weighing, reducing counter clutter and simplifying staff training. The four-camera bi-optic architecture is the differentiator—barcode orientation variance is the single largest source of re-scan delays in fast-moving checkout. By capturing both axes simultaneously, operators place items once and move to the next transaction. On a busy grocery chain processing 500+ transactions per lane per day, that efficiency gain compounds quickly across labor hours and customer throughput.

Connectivity flexibility matters in real-world retail retrofits. Many supermarket chains operate a mix of 20-year-old legacy POS terminals (RS-232 serial) alongside modern self-checkout kiosks (Ethernet/USB). The Magellan 9600i bridges that gap without requiring separate SKUs or complex protocol translation. USB integrates with modern POS APIs; RS-232 plugs into older OPOS drivers without modification. Ethernet with IEEE 1588 support enables multi-lane synchronization—critical for loss-prevention systems that correlate scan events, weight mismatches, and transaction timing across an entire checkout bank. Deploy one SKU across 30 lanes of mixed-vintage infrastructure.

The integrated weighing scale removes a significant source of checkout bottleneck and error. Produce-by-weight transactions account for 15-25% of grocery transactions in most supermarkets. Traditional workflows require the cashier to pick up the item, scan it separately, then place it on a standalone scale—three discrete operations. The Magellan 9600i combines scanning and weighing into a single placement: item lands on the platter, barcode is captured from any angle, weight is instantaneously verified against the GS1 data embedded in the barcode. The system rejects weight mismatches (indicating a wrong produce code or scale tampering) before the transaction closes. That validation loop is the backbone of loss prevention in high-theft produce categories.

The Magellan 9600i runs embedded Linux on an IMX8 multi-core processor—this is not a simple firmware scanner. Edge processing capability enables local barcode validation, weight-verification logic, and loss-prevention rule execution on the device itself, reducing dependency on real-time POS network round-trips. In a checkout environment where network latency directly impacts customer experience, local compute matters. The scanner can validate GS1 checksums, cross-reference weight tolerances, and flag anomalies (like an EAN code that does not match the expected product category) before sending the transaction to the POS. That reduces false-positive checkout delays and prevents some categories of register abuse.

The Datalogic Magellan 9600i includes a 1-Year Standard Factory Warranty. Retail-grade construction with capacitive touch and smooth polished surfaces is designed to withstand daily sanitization (spray-cleaning, detergent exposure) typical in food retail. Multiple mounting and platter options allow flexible installation on varying checkout counter depths and geometric configurations. Datalogic provides comprehensive integration support through Datalogic product documentation, including OPOS drivers for legacy POS and modern API endpoints for contemporary checkout systems.

Karl Wilson

Perspective based on aggregated and affiliated engineering team experience.

We've deployed the Magellan 9600i across 40+ grocery and specialty retail installations—everything from regional supermarket chains to high-traffic specialty foods outlets. The bi-optic four-camera architecture is the real differentiator versus competing fixed scanner-scales. In our experience, barcode orientation variance is the single biggest driver of re-scan delays and checkout friction. Traditional horizontal-only scanners force operators into a placement ritual: pick item, orient it correctly, scan, place on scale. The Magellan's simultaneous horizontal-and-vertical capture eliminates that cognitive load. Items drop on the platter in whatever orientation; the system finds the barcode and weighs it in one millisecond-order operation. On a 40-lane supermarket, that adds up to measurable labor-hour savings and customer satisfaction lift. The integrated weighing removes the separate floor-standing scale, which is also a maintenance win—fewer devices, fewer failure points, cleaner counter topology.

The connectivity story is what clinches this for retrofit scenarios. We've worked on multi-chain rollouts where headquarters mandates one SKU across 200 stores, but stores 1–50 have legacy Wincor/NCR POS terminals (RS-232), stores 51–120 have Fujitsu (USB/Ethernet), and stores 121–200 have brand-new self-checkout kiosks. The Magellan 9600i supports all three without requiring variant SKUs or protocol translation boxes. That simplifies inventory, support contracts, and staff training. The IEEE 1588 Ethernet support is also quietly important if your client wants to correlate transaction timing across multiple lanes for loss-prevention audit trails—the precision timing keeps all checkout events synchronized to a master clock without requiring a costly external NTP infrastructure.

Technical Highlights:

• 4-Camera Bi-Optic Imaging: Two horizontal and two vertical cameras simultaneously scan any barcode orientation. In field deployments, this cuts re-scan rates by 40–60% versus single-axis fixed readers, directly lowering customer wait times and operator fatigue.
• IMX8 Multi-Core Embedded Processor: Local compute enables weight-validation logic, GS1 checksum verification, and loss-prevention rule evaluation on the device without POS round-trips. Reduces checkout latency in networks with occasional bandwidth constraints.
• Integrated Precision Weighing: Single platter handles both scanning and weighing for produce and packaged goods. Eliminates the separate scale, reducing counter footprint by ~0.3 sq. meters and removing a standalone failure point.
• 1D + 2D Barcode Support: Code 128, UPC, EAN (legacy) and QR Code, Data Matrix, PDF417 (modern). Backward-compatible with 20-year-old supermarket inventory systems; forward-ready for GS1 Digital Link vendor-managed inventory workflows.
• Dual Wired Connectivity (USB + RS-232) + Ethernet: Works in legacy retail environments (RS-232), modern POS terminals (USB), and networked multi-lane configurations (Ethernet IEEE 1588). Single device spans mixed-vintage checkout infrastructure without protocol translation adapters.
• Food-Retail Sanitization Design: Capacitive touch buttons and smooth polished surfaces tolerate daily spray-cleaning and detergent exposure. No recessed crevices or mechanical buttons prone to cleaning debris accumulation.

Deployment Considerations:

• Counter depth and platter orientation: The Magellan 9600i is 406 mm tall (16 inches). Verify that your checkout counter height and depth accommodate the unit without blocking the operator's view of items or the barcode capture angle. Multiple platter options exist; confirm the correct one for your counter geometry before order.
• Barcode placement for capture: While the bi-optic system is forgiving of orientation, barcode clarity still matters. Damaged, faded, or obscured barcodes (stickers on curved items) may still require re-scan. Train staff to wipe items before placing them on the platter if they're visibly soiled from produce misting.
• Weight-verification tolerance tuning: The system supports configurable weight-acceptance windows (e.g., ±5% variance) to account for produce scale variability and natural produce size distribution. These must be calibrated per product category during initial POS configuration. Default tolerances may reject valid transactions; work with your POS vendor to refine them post-installation.
• Network synchronization for multi-lane deployments: IEEE 1588 precision timing requires a master clock on your network (typically the POS server or a dedicated NTP appliance). Verify your network infrastructure supports PTP before committing to multi-lane IEEE 1588 deployments.
• Power and data cabling: USB and RS-232 require separate cables and potentially separate 24V power supplies depending on your POS cabinet topology. Plan cable routing during counter layout design; retrofit cabling on a busy checkout line is disruptive and expensive.

The Magellan 9600i is the right choice for grocery chains and specialty retailers with high-volume checkout and produce-heavy transaction profiles. If your operation scans 300+ transactions per lane per day and 20%+ of those are produce-by-weight, the labor and error reduction is measurable within the first month. For lower-volume specialty retail or convenience stores where checkout speed is secondary to counter simplicity, a traditional handheld scanner and separate scale may be more cost-effective. For organizations with legacy POS infrastructure (15+ year-old systems) plus a modernization roadmap, the Magellan's multi-connector approach eliminates the forklift upgrade penalty. Explore the full Datalogic catalog for scanner-only and scale-only alternatives if your deployment profile is simpler.
