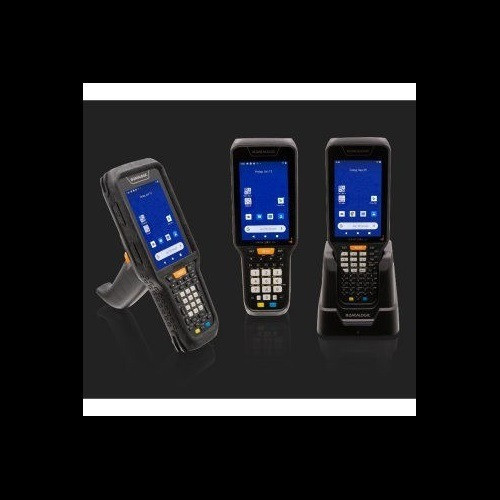

Datalogic 943500056 Skorpio X5 Rugged Mobile Computer

Datalogic 943500056 Skorpio X5 Rugged Handheld Mobile Computer

The Datalogic 943500056 is a purpose-built enterprise handheld mobile computer for warehouse, retail, and logistics operations where device durability and real-time data capture directly impact throughput and accuracy. Built on Android 10 with a Qualcomm SDA660 2.3 GHz octa-core processor, the Skorpio X5 delivers the processing power and connectivity needed for high-velocity picking, packing, and inventory management without the training overhead or vendor lock-in of proprietary platforms.

Key Features

• 4.3-inch WVGA display (800 × 480) with Gorilla Glass 3: Gorilla Glass 3 protection means the screen survives scratches and accidental impacts common in warehouse environments — important because a cracked display forces a device swap mid-shift, killing productivity. WVGA resolution is adequate for barcode and text, though text density will be tighter than larger or higher-resolution displays.
• Qualcomm SDA660 2.3 GHz octa-core processor with 3–4 GB RAM: Eight cores and 3+ GB RAM handle Android 10 GMS applications without lag, critical when workers are running warehouse management system apps, inventory queries, and barcode scanning simultaneously. This spec avoids the sluggishness that burns time in fast-paced pick operations.
• 32–64 GB Flash storage with microSD expansion: Internal storage scales from 32 GB baseline to 64 GB configurations; microSD support allows local caching of frequently accessed data and offline operation if network drops—common in warehouse zones with dead zones.
• IP65 sealed construction: IP65 means dust and water spray won't damage internal components, but water immersion is not survivable—do not deploy this device in wet dock environments requiring full submersion (IP67 or higher). Adequate for typical warehouse, retail, and outdoor logistics yards.
• Rated for 1.8 m (6 ft) drops on concrete: A 6-foot drop rating is substantial and reflects real warehouse abuse patterns—devices falling from tables, worker drops, or impacts during loading. This reduces replacement cycles and associated downtime compared to consumer-grade handhelds.
• 6,200 mAh hot-swappable battery: Hot-swappable design is operationally critical in high-density pick operations where a worker can swap a depleted battery in seconds without returning to a charging station. Compare this to non-swappable designs that force workers back to dock every 4–6 hours, creating bottlenecks. For continuous shift operations (10+ hours), plan for 1–2 backup batteries per user.
• Advanced 1D/2D barcode imaging with Green Spot feedback: Dual-stream barcode reading (both 1D and 2D codes) combined with Green Spot visual confirmation reduces false scans and rework by providing instant scan confirmation. This cuts downstream order-accuracy issues, particularly valuable in high-volume picking.
• Wi-Fi 802.11a/b/g/n/ac and Bluetooth 5.0: AC-band Wi-Fi (5 GHz) support improves throughput and reduces congestion in warehouse environments where many handheld devices operate simultaneously. Bluetooth 5.0 enables reliable pairing with peripherals (scales, printers, label makers) without constant re-pairing.
• NFC capability: Near-field communication allows tap-to-capture workflows for asset tagging, pallet identification, and rapid worker verification without manual entry.
• Operating temperature range –20 to 50°C (–4 to 122°F): This range covers typical indoor warehouse and retail spaces plus outdoor dock and yard environments. Freezer or extreme heat environments (manufacturing furnace areas) will be out of spec—confirm before deployment in temperature-critical zones.
• Lightweight at 488 g (17.2 oz): Under 500 grams enables all-day single-handed operation in pistol-grip form factor. Heavier handhelds (600+ grams) cause fatigue in high-volume picking shifts, reducing accuracy and worker throughput.

Integration and Deployment

Android 10 GMS (Google Mobile Services) foundation means the Skorpio X5 runs standard Android enterprise applications, warehouse management system integrations, and custom business logic through the Google Play ecosystem. This eliminates the vendor lock-in and limited application ecosystem of proprietary platforms, accelerating time-to-deployment across multi-site operations. Real-time Wi-Fi and Bluetooth connectivity enable live synchronization with backend inventory systems, critical for pick-accuracy validation and inventory adjustments.

The device is well-suited for warehouse picking, pack-and-ship, retail inventory verification, third-party logistics (3PL) operations, cross-dock transshipment, and returns processing. Refer to mobile device fleet management guides for guidance on provisioning, enterprise enrollment, and remote device management at scale.

Considerations

While the 4.3-inch display is suitable for barcode and navigation-focused workflows, larger displays (5.5–7 inches) on higher-end models in the same family may be necessary if workers need to view dense tabular inventory data or multi-line pick lists simultaneously. The 488-gram weight is a strength for single-handed operation but requires assessment of durability expectations—while the 6-foot drop rating is solid, heavy falls or repeated impacts from drops may eventually degrade device longevity or display durability. Plan for battery lifecycle—lithium-ion capacity degrades over 18–24 months of daily hot-swapping; budget for replacement battery inventory rotation.

Frequently Asked Questions

Q: Is the Datalogic 943500056 compatible with our warehouse management system?

A: The Skorpio X5 runs Android 10 GMS and supports standard enterprise integrations via HTTPS, SOAP, or REST APIs. Compatibility depends on your WMS architecture and whether your WMS vendor provides Android client apps or mobile web interfaces. Confirm with your WMS vendor before deployment, or consult a mobile device integrator for custom integration assessment.

Q: Can the Skorpio X5 operate in a freezer environment?

A: The operating temperature range is –20 to 50°C. Freezer environments (–18°C and below) are within specification, though Gorilla Glass and touchscreen responsiveness may degrade in sustained sub-zero conditions. Extended freezer testing is recommended before large-scale deployment.

Q: How long does the 6,200 mAh battery last per shift?

A: Battery runtime depends on display brightness, barcode scanning frequency, and Wi-Fi/Bluetooth activity. Typical 8-hour shift operations require 1–2 backup batteries. The hot-swappable design allows workers to rotate fresh batteries without dock downtime; always maintain spare battery inventory equal to 30–50% of active device count.

Q: Does the Skorpio X5 support offline mode?

A: Yes. MicroSD expansion allows local caching of master data (SKUs, locations, pricing), and Android applications can be configured for offline-first operation with synchronization when the network returns. Confirm your WMS or enterprise app supports this mode; not all systems are optimized for offline scenarios.

Q: What's the warranty on the 943500056?

A: Specific warranty terms depend on your purchase agreement and region. Consult your reseller or Datalogic directly for coverage details (manufacturer warranty, accidental damage protection, extended service plans available).

Q: Is the Skorpio X5 NDAA or TAA compliant?

A: Compliance certifications are not specified in available product documentation. Contact the supplier or Datalogic directly if government contracting or restricted-source requirements apply.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Datalogic 943500056 addresses the total cost of ownership challenge in enterprise mobile computing. Its standardized Android 10 GMS foundation reduces training overhead and accelerates time-to-productivity compared to legacy proprietary platforms. The combination of IP65 sealing, Gorilla Glass 3 protection, and 1.8 m drop rating means the device survives typical warehouse abuse without costly downtime or replacement cycles—critical when you're running a 500+ device fleet.

Technical Highlights:

• 6,200 mAh hot-swappable battery: Eliminates the charge-station bottleneck common in high-density pick operations. A worker can swap a depleted battery in 10 seconds without walking back to dock. This single feature can add 15–20% throughput efficiency in multi-shift warehouses running 10+ hour operations.
• Green Spot barcode feedback: Provides instant visual confirmation on every scan. Cuts false-positive barcode reads and associated rework—particularly valuable in high-volume picking where a 2% error rate on 5,000 picks per shift cascades into significant downstream cost.
• Qualcomm SDA660 octa-core processor with 3–4 GB RAM: Eight cores and 3+ GB eliminate the lag that burns time in WMS queries, label generation, and barcode capture loops. Laggy devices slow workers; smooth devices maintain rhythm.

Deployment Considerations:

• The 4.3-inch WVGA display is adequate for barcode-centric workflows but may crowd tabular inventory lists. If workers need to view dense multi-line pick data, evaluate larger variants in the Skorpio family.
• IP65 rating handles warehouse spray and dust but is not submersion-rated. Wet dock or high-humidity environments (like seafood or produce cold storage) may stress seals over time—validate with Datalogic before committing to high-volume wet-zone deployment.
• Hot-swappable battery design requires spare battery inventory planning: budget for 1.5–2 batteries per active device to maintain continuous coverage without worker idle time waiting for recharge.

For mid-to-large logistics networks standardizing hardware across multiple facilities, the 943500056 bridges rugged industrial durability with Android ecosystem flexibility and cost-per-unit economics. It's a pragmatic choice when you need solid real-time data capture without proprietary platform overhead.
