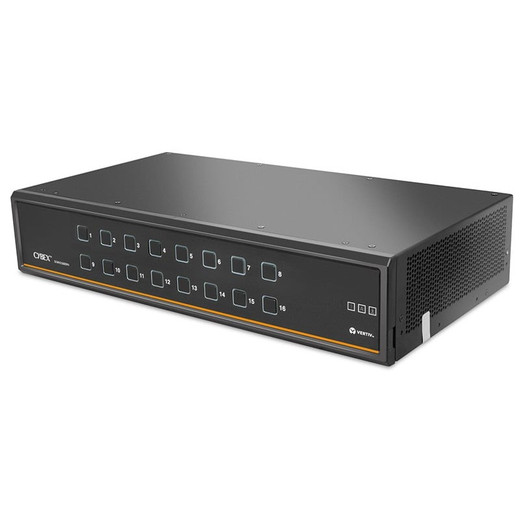

Vertiv SCMV2160DPH-400 Cybex Secure Desktop KVM Switch
The Vertiv SCMV2160DPH-400 is a Cybex Secure Desktop KVM switch engineered for environments where hardware-enforced isolation between connected systems is non-negotiable — government workstations, classified network enclaves, and multi-domain operator consoles. Carrying agency approvals from FCC Class A, CE, TUV US, TUV Canada, RCM, and VCCI, it meets the certification bar for commercial and regulated-sector deployments across North America, Europe, and Australia/New Zealand.
Overview
The Vertiv Cybex KVM line is built around the premise that physical layer isolation between network domains is more reliable than software-enforced segmentation. The SCMV2160DPH-400 sits in the secure KVM switch category — a class of hardware where USB signal filtering, unidirectional data paths, and anti-tampering mechanisms replace trust in the operating system. At 3U in height across a 17.4-inch-wide chassis, it is sized for standard equipment racks or a heavy-duty desktop installation. The 15.4 lb build reflects the internal power supply and the shielded construction that regulated procurement typically requires.
Key Features
- Multi-Agency Certification (FCC Class A, CE, TUV US, TUV Canada, RCM, VCCI): Clears the regulatory hurdles for deployment in the US, EU, Canada, and Australia without additional testing overhead. TUV safety certification in both the US and Canadian variants means it satisfies procurement requirements that distinguish between UL-listed and TUV-certified hardware.
- Internal Power Supply: A single internal power supply eliminates the external brick that creates a cable-management and failure-point problem at dense operator consoles. One less external component to track, label, and replace during maintenance cycles.
- 0–40°C Operating Range: Rated for standard conditioned office and data center environments. If you are deploying into an unconditioned space or a cabinet with poor airflow that pushes ambient above 40°C (104°F), plan accordingly — this unit is not rated for that condition.
- 0–80% RH Non-Condensing Humidity Tolerance: Covers typical climate-controlled server room and operations center environments. Non-condensing is the standard caveat — avoid powering it on immediately after moving from a cold environment to a warm humid space.
- Storage Survivability to -20°C / -4°F: The extended storage temperature range (-20 to 60°C) means the unit can be warehoused or shipped through cold-chain logistics without risk of damage before commissioning — relevant for staged government or military deployments with long lead times between procurement and installation.
- 3 in Height × 17.4 in Width × 11.8 in Depth Chassis: The 17.4-inch width fits a standard 19-inch rack bay with room for standard rack ears, or sits flat on a desk without overhanging typical workstation surfaces. At 11.8 inches deep, verify cabinet depth clearance before ordering — shallow-depth wall cabinets under 14 inches may not accommodate the unit plus cable bend radius behind it.
Integration and Compatibility
The SCMV2160DPH-400 (often searched as SCMV2160DPH 400) carries the Cybex designation, which positions it within Vertiv's secure switching architecture. Pair it with KVM cables and adapters appropriate for your connected systems. For multi-user or extended-distance requirements, review the broader Vertiv KVM portfolio for matrix and IP-extension options. When planning a console workspace, consult a KVM selection guide to match port count and video standard to your specific multi-domain layout before committing to hardware.
Frequently Asked Questions
Q: What certifications does the SCMV2160DPH-400 carry?
A: The SCMV2160DPH-400 carries FCC Class A, CE, TUV US, TUV Canada, RCM, and VCCI agency approvals, covering regulatory requirements for the United States, European Union, Canada, and Australia/New Zealand.
Q: What is the operating temperature range of the SCMV2160DPH-400?
A: Rated for 0 to 40°C (32 to 104°F) operating temperature, with storage survivability from -20 to 60°C (-4 to 140°F).
Q: Does the SCMV2160DPH-400 require an external power adapter?
A: No. The unit includes a single internal power supply — no external power brick is required.
Q: What are the physical dimensions of the SCMV2160DPH-400?
A: 3 in (H) × 17.4 in (W) × 11.8 in (D), weighing 15.4 lbs. Verify rack or desk clearance — particularly depth — before installation.
Q: What is the humidity tolerance for the SCMV2160DPH-400?
A: Rated for 0 to 80% relative humidity, non-condensing. Avoid exposing the powered unit to condensing moisture conditions.
The SCMV2160DPH-400 is the kind of hardware that shows up on procurement lists where the physical chassis certifications matter as much as the feature set. The TUV US and TUV Canada dual-certifications on this unit are the detail I'd highlight to a compliance officer — those are not the same certification, and having both in a single SKU removes a common procurement friction point for cross-border government or enterprise rollouts.
Technical Highlights:
- Six-Region Agency Approval Stack: FCC Class A + CE + TUV US + TUV Canada + RCM + VCCI in one SKU means a single line item covers US federal, EU, Canadian, and Australian/New Zealand regulatory requirements — no regional variant SKUs to track.
- Internal PSU: At 15.4 lbs, the weight reflects a solidly built internal power supply. That matters in rack environments where external bricks create unlabeled failure points and violate some secure-facility cable-management standards.
- Environmental Margins: 0–40°C operating with -20 to 60°C storage gives adequate headroom for staged deployments — units can sit in a cold warehouse and be commissioned months later without thermal stress concerns.
Deployment Considerations:
- At 11.8 inches deep, budget at least 14–15 inches of clear cabinet depth to accommodate the unit body plus the minimum cable bend radius on whatever KVM cable standard you are running behind it.
- The 0–80% RH non-condensing rating is standard for a reason — if this unit is going into a portable operations center or field-expedient enclosure that sees rapid temperature swings, allow adequate warm-up time before powering on to avoid condensation inside the chassis.
The SCMV2160DPH-400 is a fit for fixed multi-domain operator consoles in government facilities, financial trading floors, or any controlled environment where a certified, internally-powered KVM with a verifiable compliance paper trail is required at procurement.
