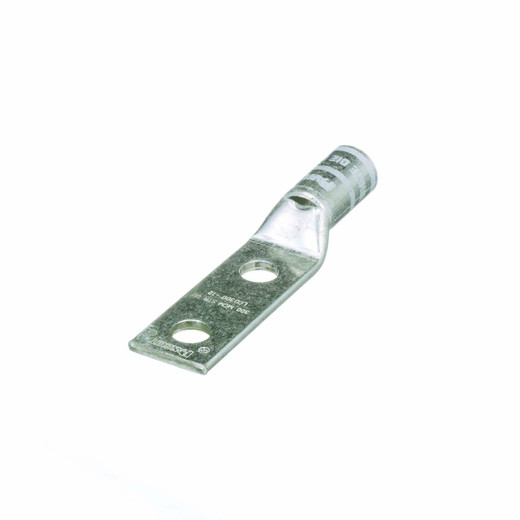

Panduit LCCX300-12-6 CU LUG 300KCMIL FLEX 1/2 STU
Overview
The Panduit LCCX300-12-6 is a two-hole, barrel-type copper compression lug designed for terminating 300 kcmil flexible conductors. It ensures a secure and reliable electrical connection in demanding industrial and commercial power distribution applications. This lug is engineered for use with flexible stranded conductors, providing a robust termination point for power cables where vibration or movement is a factor. The 1/2 inch stud size is standard for many circuit breakers and terminal blocks.
Compatibility
This lug is specified for use with 300 kcmil flexible stranded copper conductors. It is designed to mate with 1/2 inch studs or bolts commonly found on switchgear, busbars, and distribution equipment. Ensure your terminal studs are compatible with the lug's barrel size and stud hole diameter for optimal performance and safety.
Installation Notes
For proper installation, use Panduit specified crimping tools and die sets to ensure a permanent, high-quality connection. The LCCX300-12-6 requires a specific crimp pattern to achieve full mechanical and electrical integrity. Consult Panduit's installation documentation for the correct tool, die, and number of crimps required for 300 kcmil flexible conductors. Torque the mounting hardware to the equipment manufacturer's specifications, typically between 20-30 ft-lbs for a 1/2 inch stud.
What's in the Box
- 1x Panduit LCCX300-12-6 Copper Compression Lug
