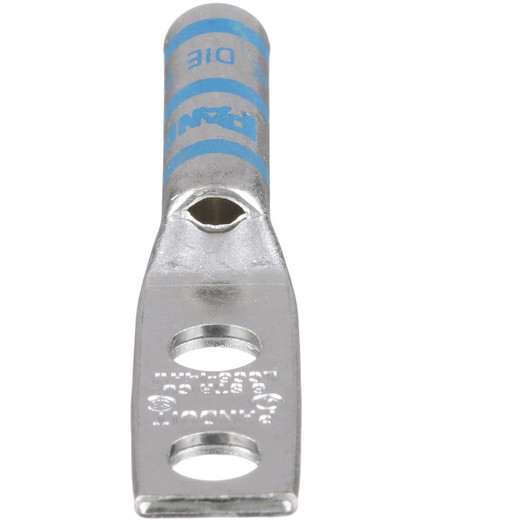

Panduit LCC10-14AW-L Copper Compression Lug
Overview
The Panduit LCC10-14AW-L is a two-hole lug designed for terminating #10 AWG copper conductors. It provides a secure and reliable connection point for electrical systems, commonly used in control panels, power distribution, and equipment wiring where multiple attachment points are required for stability and load distribution. This lug ensures a robust connection for applications demanding dependable electrical continuity.
Compatibility
This lug is specified for use with #10 AWG stranded or solid copper wire. It is designed to interface with standard 1/4-inch stud sizes. While not specific to surveillance equipment, it is frequently deployed within the control cabinets and power distribution systems that support IP cameras, NVRs, and network switches, ensuring proper grounding and power termination for these devices.
Installation Notes
For optimal performance and safety, use a Panduit qualified crimping tool and die set appropriate for #10 AWG wire and this lug series. Ensure the conductor is fully inserted into the barrel before crimping. Torque specifications for the mounting holes should adhere to the requirements of the connected equipment or busbar, typically ranging from 15-25 inch-pounds for secure fastening without over-stressing the lug or terminal.
What's in the Box
- 1x Panduit LCC10-14AW-L Copper Compression Lug
