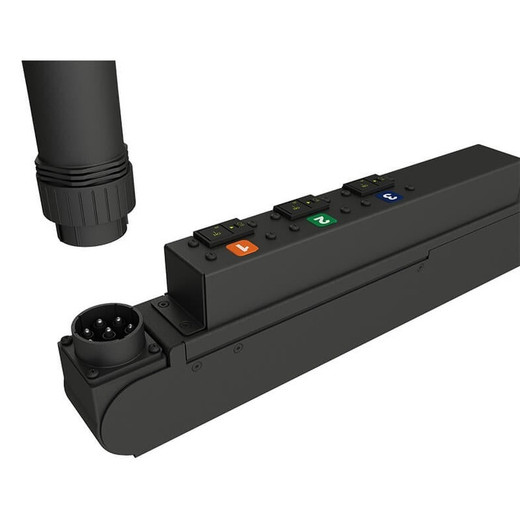

Vertiv CSU-S02A3-43000-3PS56B-S - FSC3U002

Vertiv FSC3U002 3-Phase Industrial Current Switching Unit

Overview

The Vertiv FSC3U002 is a three-phase current switching unit built for demanding industrial and data center environments where reliable power distribution at 30/32A is non-negotiable. Rated for 230/400V WYE input and 230V output, this unit supports both 50Hz and 60Hz grid infrastructure, making it deployable across European and international facilities without frequency-driven compatibility concerns. The 3P+N+E plug interface (IP44-rated) means it arrives ready for standard industrial panel integration — no custom wiring adapters required for compliant installations.

The FSC3U002 targets integrators and facilities engineers who need a switching unit that can handle sustained three-phase loads in environments where ambient temperatures push toward the upper limit. Vertiv's 60°C operating temperature rating keeps this unit viable in poorly ventilated equipment rooms, industrial enclosures, and warm server-room edge deployments where lesser switching hardware would derate or fail outright.

Key Features

• 30/32A Dual-Rated Capacity: Supports both 30A and 32A load ratings, giving you flexibility to match the upstream circuit protection already in place — whether the installation is wired to IEC 60309 32A industrial standards or a 30A branch circuit. No need to spec different hardware for minor ampacity mismatches across sites.
• 230/400V WYE Input: Accepts three-phase WYE (star) configured supply at 230V phase-to-neutral / 400V phase-to-phase — the standard for European three-phase distribution. If your facility runs a 400V WYE distribution board, this unit connects directly without step-down transformers or conversion hardware.
• 230V Output Voltage: Delivers 230V on the output side, consistent with European single-phase equipment standards. This keeps downstream devices operating at their rated input without additional voltage conversion in the distribution path.
• Universal Connector Output: The universal connector output format reduces installation friction in mixed-equipment environments where output receptacles must serve multiple device types. Verify downstream device plug compatibility during pre-installation planning — the universal connector format provides flexibility but confirm the specific connector standard with Vertiv documentation for your deployment.
• 3P+N+E Plug Type (IP44): The IP44-rated industrial plug provides dust and splash resistance at the connection point — meaningful in light-industrial, warehouse automation, or edge-deployment scenarios where the power connection may be exposed to particulate or incidental liquid contact. IP44 is not immersion-rated, so avoid installations with direct water exposure.
• 50/60Hz Frequency Support: Dual-frequency operation means this unit deploys across both 50Hz (Europe, Asia, most of the world) and 60Hz (North America, parts of Asia) grid infrastructure without modification. For organizations managing multi-region or multi-country deployments from a single SKU, this eliminates a sourcing variable.
• 60°C Operating Temperature: Rated for continuous operation at up to 60°C ambient — above the 45–55°C threshold where many comparable switching units begin to derate. In equipment rooms running hot, or industrial enclosures with limited airflow, this headroom translates directly to deployment confidence without requiring supplemental cooling infrastructure.

Integration & Compatibility

The FSC3U002 is designed for integration into three-phase industrial power distribution systems running standard European 230/400V WYE configurations. The 3P+N+E (IP44) plug interface is compatible with IEC 60309-style industrial receptacles common in commercial buildings, data centers, and manufacturing facilities. The universal connector output accommodates a range of downstream load devices, though integrators should confirm specific connector compatibility against the load device's input requirements before commissioning.

For deployments within Vertiv power infrastructure ecosystems — including Vertiv PDUs, UPS systems, and power management platforms — the FSC3U002 is designed to fit within Vertiv's broader power distribution architecture. Facilities running mixed-vendor power equipment should verify physical and electrical compatibility at the panel level. Those planning larger data center power buildouts or industrial power solutions should review upstream breaker ratings, cable sizing, and enclosure IP ratings in conjunction with this unit's 30/32A capacity and IP44 plug specification. Consult a licensed electrician for all three-phase wiring and termination work in compliance with local electrical codes.

Frequently Asked Questions

Q: What input voltage does the FSC3U002 require?

A: The FSC3U002 accepts 230/400V WYE (three-phase star configuration) input — 230V phase-to-neutral, 400V phase-to-phase. This is the standard European three-phase distribution voltage. It is not designed for North American 120/208V WYE systems.

Q: What is the current capacity of the FSC3U002?

A: The FSC3U002 is rated at 30/32A, supporting both 30A and 32A circuit configurations. This dual rating provides flexibility when matching the unit to existing branch circuit protection without requiring a different SKU.

Q: Is the FSC3U002 suitable for outdoor or harsh-environment installations?

A: The plug interface carries an IP44 rating, which provides protection against solid objects greater than 1mm and splash water from any direction. The unit is rated for operation up to 60°C ambient. It is not rated for full immersion or sustained direct water exposure — IP44 covers incidental splash, not outdoor rain exposure or wash-down environments.

Q: Does the FSC3U002 support both 50Hz and 60Hz power systems?

A: Yes. The FSC3U002 supports both 50Hz and 60Hz grid frequencies, making it compatible with European (50Hz) and certain international (60Hz) power infrastructure without hardware modification.

Q: What output voltage does the FSC3U002 deliver?

A: The FSC3U002 delivers 230V on the output side, consistent with European single-phase equipment standards. Downstream devices should be rated for 230V input.

Q: What plug type does the FSC3U002 use?

A: The FSC3U002 uses a 3P+N+E plug configuration (three phases, neutral, and earth/ground), rated IP44 for industrial environments. This is compatible with standard IEC 60309-style industrial receptacles used in commercial and industrial facilities.

Karl Wilson

The FSC3U002 sits in a specific sweet spot for European three-phase deployments: a 30/32A current switching unit that doesn't force you to choose between ampacity flexibility and thermal headroom. That 60°C operating temperature rating is the spec I'd highlight first — most facilities I've worked in push ambient temps well past 45°C in equipment rooms that weren't properly planned for cooling, and having that 60°C ceiling on the FSC3U002 means you're not engineering around the switching unit when the room runs hot.

Technical Highlights:

• 30/32A Dual Rating: Matches to either 30A or 32A branch circuit protection without swapping hardware — useful on multi-site rollouts where panel standards aren't uniform across locations.
• 230/400V WYE Input: Direct connection to standard European three-phase distribution boards at 400V phase-to-phase; no step-down transformer in the path, which removes a failure point and a cost line from the BOM.
• IP44 Plug (3P+N+E): Industrial-grade connection rated for splash protection — the right fit for light-industrial or warehouse edge deployments where the power connection point isn't in a clean server room environment.

Deployment Considerations:

• Confirm the downstream load devices are rated for 230V input before commissioning — the output voltage is fixed at 230V and there is no step-down conversion built into this unit for devices requiring lower voltages.
• IP44 covers splash, not sustained water exposure — do not install in wash-down or outdoor rain-exposed locations without additional enclosure protection rated IP55 or higher around the connection point.

For facilities teams managing distributed equipment deployments across European industrial or commercial sites — particularly warehouse automation, edge compute enclosures, or security infrastructure running three-phase feeds — the FSC3U002 is a straightforward, thermally robust switching unit that handles the ampacity and voltage realities of those environments without requiring supplemental hardware to compensate for its limits.
