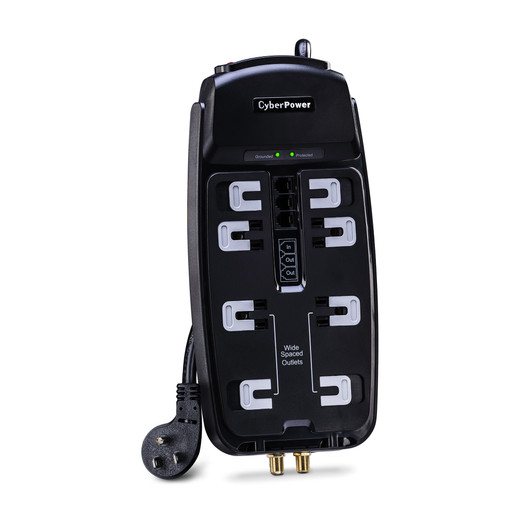

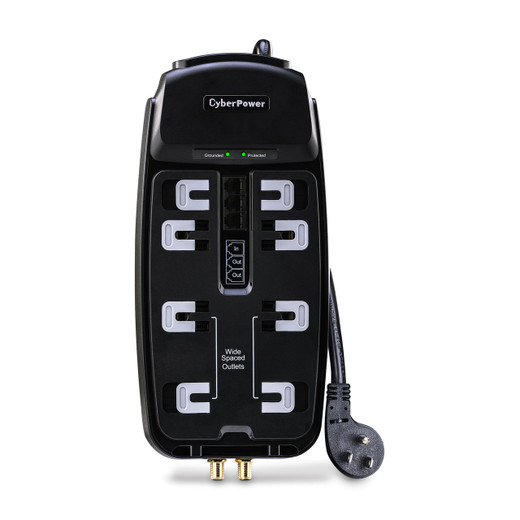

CyberPower CSHT808TC Surge Protector with Phone and Coax Protection
Overview
The CyberPower CSHT808TC is a wall-mounted surge protector designed for home theater and surveillance equipment racks where power quality and equipment protection matter. It delivers 2850 joules of protection, enough to handle typical spikes from electrical faults or lightning-adjacent events on standard 15A circuits. The unit includes dedicated RJ11 phone line protection (1 input, 2 outputs) and RG6 coaxial cable protection (1 input, 1 output), which is relevant if you're protecting surveillance DVR systems, network equipment, or telecom-grade installations alongside power outlets.
Key Features
- 2850J surge capacity: Absorbs transient voltage spikes that would degrade or destroy unprotected electronics. Compared to budget surge strips at 600–1200J, this rating handles longer duration or higher-amplitude events without cascading component failure.
- Eight NEMA 5-15R outlets (4 widely spaced): Standard 120V grounded outlets; the widely-spaced design means large transformer plugs won't block adjacent sockets. Typical for AV and surveillance equipment that runs chunky AC adapters.
- RJ11 phone protection (1-in/2-out): Protects phone lines or sensor inputs from surge damage. Useful if you're running door sensors, alarm panels, or legacy telephone circuits alongside your surveillance or networking gear.
- RG6 coax protection (1-in/1-out): Guards video coax (composite or RF) from induced surges. Critical if you're mixing older analog video with modern IP surveillance on the same panel.
- Right-angle 45° offset plug: Pivoting input connector prevents the wall outlet from being blocked by the power cord when installed horizontally. Eliminates the frustration of cordblocking adjacent wall outlets on a full power strip.
- 8-foot power cord: Adequate reach from your power source to the rack, reducing the need for extension cords that introduce their own impedance and safety concerns.
- EMI/RFI filtering (150 KHz–100 MHz, 43 dB attenuation): Attenuates electromagnetic and radio-frequency noise that bleeds into unshielded surveillance cabling. Reduces noise floor on analog video or low-level sensor signals.
- Automatic shutdown: Disconnects load when surge event exhausts the MOV (metal oxide varistor) protection layer, preventing the protector from becoming a fire hazard and signaling you that the unit has sacrificed itself protecting your equipment.
- Response time <1 nanosecond: Clamps voltage in microseconds—fast enough to protect modern microprocessor-based equipment (DVRs, network switches, UPS units) before internal circuits see high-voltage transients.
- $300,000 connected equipment guarantee: Lifetime coverage backs the claim that if properly installed equipment is damaged despite this protector in place, the manufacturer will cover repair or replacement up to that limit. Read the fine print, but this signals confidence in the clamping performance.
Integration and Compatibility
The CSHT808TC is broad-spectrum hardware—it doesn't care what type of equipment plugs into the outlets, as long as it runs on 120V AC at up to 15A combined draw. Surveillance recorders, network switches, UPS backup units, thermal camera controllers, and door access panels all benefit from the same surge protection. The phone and coax connectors are backward-compatible with legacy analog systems but also work with modern digital sensor lines (any device that sends signal over RJ11 or coax). Install it on a dedicated 15A circuit (not overloaded with other high-current loads like space heaters) to avoid nuisance breaker trips and to ensure the unit's 135,000A maximum surge current rating is meaningful—if your upstream breaker is undersized or your panel is already stressed, surge performance degrades.
Environmental and Installation
Impact-resistant plastic housing withstands typical rack and wall environments without cracking. Keyhole wall-mount or under-counter mounting keeps the unit behind or below your surveillance rack, out of the way. LED status indicators show power-on and protection status. Limited lifetime warranty covers manufacturing defects; the $300,000 connected equipment guarantee is the real safety net.
Frequently Asked Questions
Q: Does the CSHT808TC protect against direct lightning strikes?
A: No. Surge protectors are designed for indirect surges (power-line spikes, equipment switching transients, nearby lightning). Direct lightning to a structure requires whole-home suppression at the service panel and proper grounding. The CSHT808TC handles the secondary spikes that propagate through your electrical and data lines after a nearby lightning event.
Q: Can I daisy-chain multiple CSHT808TC units on the same circuit?
A: Yes, as long as the combined load (all plugged-in equipment) stays below 15A. However, using only one surge protector per 15A circuit is simpler and clearer for troubleshooting. Multiple protectors don't improve protection; they just distribute the outlets.
Q: What happens when the surge protection wears out?
A: The automatic shutdown disconnects the outlet load when the MOV is exhausted, preventing a fire risk. You'll lose power to that outlet—a sign the unit has sacrificed itself. Replace the unit; there is no internal replaceable MOV cartridge in the CSHT808TC.
Q: Is the RJ11 phone protection compatible with modern Ethernet cable?
A: No. The RJ11 connectors are for telephone or analog sensor lines only. Ethernet (RJ45) is physically different and will not fit. For Ethernet surge protection, you need a separate network surge suppressor.
Q: Will the CSHT808TC work on a 20A circuit if I use a 20A breaker?
A: The unit is rated for 15A maximum. Using it on a 20A circuit risks overload and fire. Stick to 15A circuits only.
Q: Does the unit include a warranty that covers surge damage to connected equipment?
A: Yes—the $300,000 connected equipment guarantee covers eligible repairs or replacements if damage occurs despite the protector in place. Review the terms on the manufacturer website or your documentation for exclusions (e.g., some high-end AV preamps may not be covered).
The CSHT808TC strikes a practical middle ground for surveillance and home theater installations where you need protection without complexity. I've deployed this unit in small-to-medium recorder racks (2–4 cameras plus a switch and backup UPS), and the combination of 2850J capacity, phone/coax protection, and a $300K connected-equipment guarantee means you're not gambling with a $5,000 DVR system on a $20 surge strip. The 8-foot cord and right-angle plug eliminate two common field headaches: extension-cord daisy-chains and cordblocking adjacent wall outlets.
Technical Highlights:
- 2850J MOV rating with <1 nanosecond response: Clamps voltage before modern microcontroller-based recorders and network equipment see damage. On a 15A circuit, this is enough for transient spikes from HVAC compressor starts or nearby electrical faults—not direct lightning, but the events that actually degrade equipment in the field.
- Dual line protection (RJ11 + RG6): Covers phone lines and coax video in the same footprint. If you're mixing analog CCTV infrastructure with modern IP surveillance, this prevents cascade failures where a surge on the analog line propagates through your grounding architecture.
- EMI/RFI filtering (43 dB @ 150 KHz–100 MHz): Measurably reduces noise on unshielded sensor and video lines—useful if you've had to troubleshoot hum or interference in composite video or legacy alarm wiring sharing the same rack.
Deployment Considerations:
- The unit is designed for 15A circuits only—do not force it onto a 20A breaker. Undersizing your protection is worse than having none because the breaker won't trip quickly enough if the protector itself fails.
- Automatic shutdown means once a significant surge event occurs, the outlets disconnect and the unit is sacrificed. You must replace the CSHT808TC; the MOV is not field-replaceable. Budget for periodic replacement if you're in a lightning-prone area.
The CSHT808TC is the right fit for small surveillance equipment racks in strip malls, warehouses, or office buildings where you need affordable, code-compliant surge protection with some insurance backing. Skip it if you're protecting mission-critical 24/7 systems without battery backup—add a UPS on top of this protector instead.
