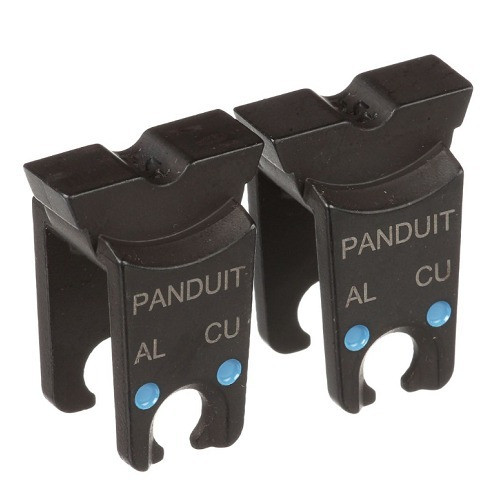

Panduit CD-2001-6-SET Crimp Die Set for #6 AWG Copper Conductors
Overview
The Panduit CD-2001-6-SET is a replacement and supplemental crimp die set engineered for #6 AWG copper conductors, designed to pair directly with the CT-3001/ST and CT-3001/CCP crimping tool platforms. If you're working electrical terminations, grounding runs, or panel interconnects at the #6 AWG range and need a die that indexes correctly and produces a repeatable, code-quality crimp, this is the die to specify. Die Index Number P24 with its Blue color code lets technicians pull the right die immediately in a multi-die kit — no guessing on a busy panel schedule.
The CD-2001-6-SET (often searched as CD 2001 6 SET) is a Panduit catalog staple for integrators building out structured wiring, security panel power runs, and copper termination work where conductor gauge discipline is non-negotiable.
Key Features
- #6 AWG Copper Rating: Sized precisely for #6 AWG copper — using an undersized or oversized die on copper conductors risks cold crimps that pass initial pull-test but fail under thermal cycling. This die eliminates that variable.
- Die Index Number P24: The P24 index number is the machine-readable reference for the CT-3001 tool family. It ensures the tool's ratchet mechanism recognizes the installed die and applies the correct crimp force profile — critical for consistent terminations across a crew.
- Blue Color Code: Color-coded Blue for immediate visual identification in multi-die sets. On active job sites where multiple wire gauges are in play, the color code is your fastest quality-control step before the crimp is made.
- Copper Conductor Compatibility: Rated for copper only — not aluminum. This matters because aluminum requires different die geometry and crimp pressures. Specifying copper-rated tooling on a copper-conductor run keeps the termination within the conductor manufacturer's listed installation method.
- CT-3001/ST and CT-3001/CCP Tool Compatibility: Fits the CT-3001/ST and CT-3001/CCP Panduit crimper frames. If your shop already runs Panduit CT-3001-series tools, this die drops in without a new tool purchase — protecting your existing tool investment.
Integration & Compatibility
The CD-2001-6-SET is engineered for use with the CT-3001/ST and CT-3001/CCP Panduit crimping tools. It is not interchangeable with other tool platforms or die systems outside the CT-3001 family. Verify your crimper model before ordering — die bodies are not universal across Panduit tool generations. For broader Panduit tooling and connectivity options, the full line covers AWG ranges above and below #6 for complete job coverage. Integrators sourcing wire management and termination supplies will find compatible lugs, connectors, and cable management in the same category.
Frequently Asked Questions
Q: Which crimping tools is the CD-2001-6-SET compatible with?
A: The CD-2001-6-SET is designed for use with the Panduit CT-3001/ST and CT-3001/CCP crimping tools. It is not rated for other tool platforms.
Q: What wire gauge does this crimp die handle?
A: It is rated for #6 AWG conductors only. Using it on other gauges will produce out-of-spec crimps.
Q: Is this die suitable for aluminum conductors?
A: No. The CD-2001-6-SET is rated for copper conductors only. Aluminum terminations require dies and tools specifically rated for aluminum.
Q: What is the die index number for the CD-2001-6-SET?
A: The die index number is P24. This is the reference used by the CT-3001 tool family to apply the correct crimp force profile.
Q: How do I identify this die in a multi-die kit?
A: The CD-2001-6-SET is color-coded Blue, allowing quick visual identification alongside dies for other wire gauges.
The CD-2001-6-SET is a purpose-built crimp die keyed to Die Index Number P24 — that index number is what tells the CT-3001 ratchet mechanism to apply the correct crimp force for #6 AWG copper, not a gauge approximation. I see integrators try to adapt adjacent-gauge dies when the right one isn't on hand, and the results look fine until a thermal load event. Don't shortcut this.
Technical Highlights:
- #6 AWG / P24 Index: The P24 die index is a machine-enforced calibration point — the CT-3001 tool family reads it to set crimp force, so every termination in the run is made at the same specification regardless of who on the crew pulls the trigger.
- Copper-Only Rating: Copper and aluminum require fundamentally different crimp geometries. This die is copper-rated; attempting aluminum terminations with it voids the installation method and creates a latent failure risk that won't show up on a standard pull-test.
- Blue Color Code: On any panel build where you're cycling through #6, #8, #10, and #12 AWG in the same session, the Blue coding on this die is a one-second visual confirmation before you seat the conductor — a simple mistake-proofing step that costs nothing.
Deployment Considerations:
- Confirm your crimper is a CT-3001/ST or CT-3001/CCP before ordering — the CD-2001-6-SET is not cross-compatible with other Panduit tool generations or third-party frames, and die bodies are not interchangeable.
- This die has no rating for aluminum conductors. If your project mixes copper and aluminum runs, you need a separate aluminum-rated die set; do not share this die across conductor types even if the gauge matches.
The CD-2001-6-SET is the right call for commercial electrical and low-voltage integration shops running CT-3001-series tools on copper grounding, panel power, or termination work at the #6 AWG gauge — where a correctly indexed die and a color-coded identification system are the difference between a repeatable process and a rework call.
