Cradlepoint 170680-001 9-Wire Extensibility GPIO Cable

Overview

The Cradlepoint 170680-001 is a 1.7-meter (5.6 ft) GPIO extensibility cable that connects Cradlepoint routing platforms to external input/output control systems. The SATA locking connector ensures secure, strain-relieved connections in deployments where vibration or accidental disconnection poses a risk — essential in mobile or remote edge installations. This cable bridges Cradlepoint routers and third-party relay controllers, sensor arrays, and monitoring systems that require discrete I/O signaling.

Compatibility

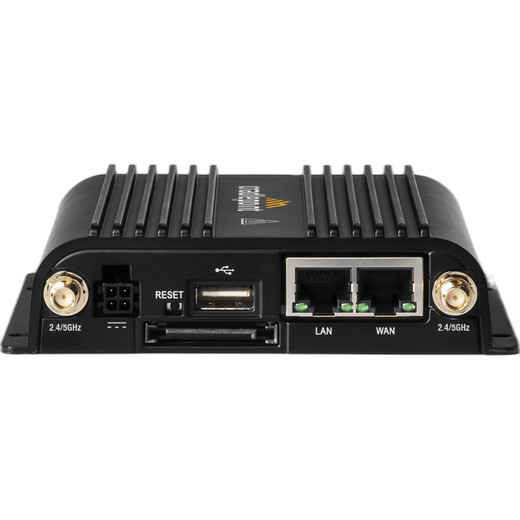

Designed for Cradlepoint end-of-life (EOL) routing platforms: IBR900, IBR600B, IBR600C, and R500-PLTE. Verify your Cradlepoint model's GPIO extensibility port before ordering — not all Cradlepoint routers support GPIO integration. Check your router's specifications or contact your systems integrator to confirm port availability.

Signal and Wiring

The 9-wire configuration supports four discrete GPIO signals (typically relay closure or sensor input), a secondary ignition sense line for vehicle-based deployments, and redundant power leads. GPIO signaling protocols follow standard industrial I/O conventions — relay control (on/off states), alarm input monitoring, and status output. Wire gauge and voltage specifications depend on your third-party control system; consult its installation guide for termination requirements and current draw limits.

Installation Notes

The SATA locking connector requires a compatible female GPIO port on your Cradlepoint router — do not force the connection. Secure the cable to avoid loop formation or kinks that could stress the connector. When routing through conduit or securing with tie wraps, leave 1–2 inches of slack near both connectors to prevent strain. GPIO signal wiring must not carry high-voltage lines (>48V) within the same cable sheath; if your control system uses AC or high-current relay circuits, run those in a separate shielded cable to prevent crosstalk and EMI interference.
