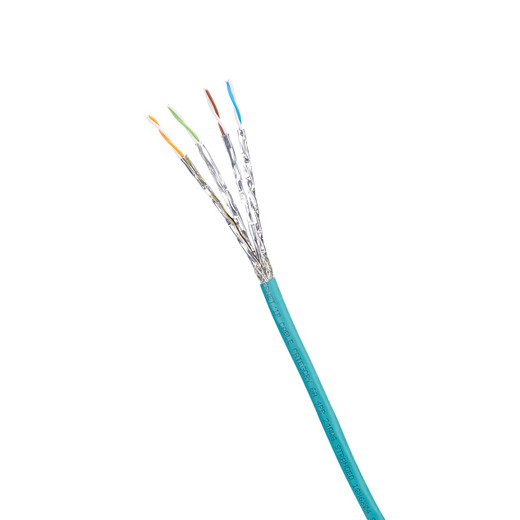

Panduit ISX6X04ATL-LED Industrial Copper Cable

Overview

The Panduit ISX6X04ATL-LED is a 500-meter (1640 ft) Category 6A industrial copper cable designed for demanding network deployments. Featuring a 24 AWG twisted pair construction with S/FTP shielding, this cable offers enhanced protection against electromagnetic interference and crosstalk, making it suitable for environments where network reliability is critical. Its PUR jacket provides durability for continuous operation in industrial settings.

Compatibility

This cable meets or exceeds IEC 61156-6 and ANSI/TIA-568-C.2 Category 6A requirements, ensuring compatibility with standard Category 6A network infrastructure. It is designed for use with industrial network equipment and connectors that support 24 AWG stranded conductors and S/FTP termination.

Installation Notes

The cable construction includes a stranded conductor type (24 AWG), which is more flexible than solid core but requires careful termination to maintain signal integrity. It has passed rigorous flex endurance testing, including 1 million cycles with a 10x cable diameter bend and 3 million cycles with a 20x diameter bend, indicating resilience in dynamic applications. The cable also demonstrates resistance to ozone and oils (EN 60811-2-1 at 90°C for 7 days), crucial for harsh industrial environments. It carries EuroClass Eca fire rating and complies with RoHS directives.
