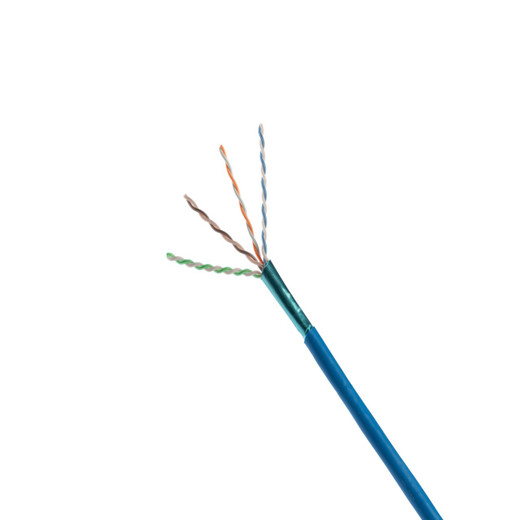

Panduit PUP6AHD04BL-G Cat6A Plenum Bulk Cable
The Panduit PUP6AHD04BL-G delivers Cat6A performance in a plenum-rated package engineered for commercial security and network infrastructure. This 1000 ft pull box of 23 AWG solid copper U/UTP cable supports 10GBASE-T Ethernet to 100 meters, making it the backbone choice for IP camera systems, access control networks, and converged IT infrastructure where PoE++ power delivery and multi-gigabit bandwidth must coexist. The CMP-rated jacket meets NEC Article 800 and NFPA 262 plenum requirements, clearing the cable for installation in return-air plenums, drop-ceiling voids, and raised-floor environments without conduit. Black jacketing provides a professional appearance in exposed commercial runs while maintaining the low-smoke, low-flame-spread characteristics mandated by fire marshals and AHJs nationwide.
Key Features
- Cat6A U/UTP construction rated for 10GBASE-T to 100 meters and 500 MHz bandwidth
- Plenum CMP jacket compliant with NEC Article 800, NFPA 262, and UL 910 for air-handling spaces
- 23 AWG solid bare copper conductors for permanent-link installations and reliable PoE++ delivery
- 1000 ft pull box packaging reduces waste and minimizes mid-run splices on long horizontal drops
- Pan-Net sub-brand backed by Panduit's structured cabling warranty and performance guarantee
- Black jacket finish for discreet routing in drop ceilings, cable trays, and J-hook pathways
Cat6A Performance for IP Security and Converged Networks
The PUP6AHD04BL-G is built to ANSI/TIA-568.2-D Category 6A specifications, supporting 10 Gbps data rates and 500 MHz of usable bandwidth across the full 100-meter permanent link. For IP camera deployments, this translates to headroom well beyond the 200-400 Mbps peaks of 4K and multi-imager models — you can run a 12 MP panoramic camera, a PoE++ access point, and a VoIP endpoint on the same switch without concern for uplink saturation. The 23 AWG solid copper conductors maintain DC loop resistance below 19 ohms per 100 meters, ensuring stable PoE++ (IEEE 802.3bt Type 4) power delivery up to 90W at the PSE even on maximum-length runs. Integrators installing Axis Q-line PTZs, Hanwha multi-sensor domes, or Verkada all-in-one cameras will appreciate the margin: you're not riding the edge of the standard, and future 25GBASE-T migrations are achievable on the same physical layer. The unshielded twisted pair (U/UTP) construction eliminates the grounding complexity and termination care required by shielded variants, making it the pragmatic choice for environments where EMI is controlled by pathway separation and proper dressing rather than shield continuity.
Plenum Rating and Code Compliance
The CMP jacket formulation is the product's defining compliance feature. Tested to UL 910 and NFPA 262, this cable exhibits a maximum peak optical density of 0.5 and average optical density of 0.15 during the Steiner Tunnel flame test, certifying it for installation in environmental air spaces per NEC 800.154(A). This matters in every commercial security deployment: IP cameras mounted above drop ceilings, access control readers fed through plenums, and intercom stations routed via HVAC return paths all require plenum cable unless every inch is enclosed in metallic conduit or listed raceway. The low-halogen, low-smoke compound also simplifies installations in hospitals, schools, and government facilities where beyond-code safety margins are expected. Fire marshals and building inspectors will recognize the CMP print on the jacket; you'll pass rough-in inspection without callbacks or change orders. The black jacket serves a secondary role in commercial aesthetics — unlike the bright blue or yellow cables common in datacenters, black disappears against T-bar grids, painted tray, and architectural ceilings in lobbies, concourses, and high-visibility spaces.
Installation Characteristics and Pull-Box Efficiency
Panduit specs this cable with a maximum pulling tension of 110 N (25 lbf) and a minimum bend radius of 1.0 inch (25 mm) during installation, relaxing to 0.5 inch (12.7 mm) post-install. These figures accommodate J-hook suspension, basket tray radius bends, and tight transitions into back boxes without jacket deformation or pair untwisting that would degrade NEXT and return loss. The 1000 ft pull box supports typical horizontal cable runs of 270-295 ft (accounting for vertical drops, slack loops, and dressing) with a single unbroken length, minimizing the intermediate termination points that introduce insertion loss and points of failure. For a 40-camera installation across two floors, you're looking at roughly three boxes with minimal waste — versus six or eight shorter spools that leave you with 150 ft remnants too short for code-compliant permanent links. The solid conductor construction is intended for punch-down termination at 110 blocks, patch panels, and keystone jacks; do not use this cable for patch cords or equipment cords where flexing occurs. Pair this with Panduit's Mini-Com or PanZone jacks for a matched-impedance channel that will certify to Cat6A limits on a Fluke DSX-8000 or equivalent tester.
The PUP6AHD04BL-G represents Panduit's Pan-Net value line — engineered to the same ANSI/TIA performance standards as the flagship PanZone and Opti-Core families, but optimized for cost-sensitive horizontal deployments where premium features like shielding, low-smoke-zero-halogen compounds, or color-coded spline separators aren't specified. You get a cable that certifies, passes inspection, and delivers 10G performance on day one and 25G performance when your network team is ready to flip the switch. Panduit backs this product with their standard structured cabling warranty when installed per TIA-568 guidelines and terminated with Panduit connectivity; consult your distributor for registration and warranty claim procedures. For integrators managing projects where the spec calls for Cat6A plenum and the budget demands a no-nonsense solution, this is the workhorse horizontal cable that lets you move on to the next pull without second-guessing the physical layer.
