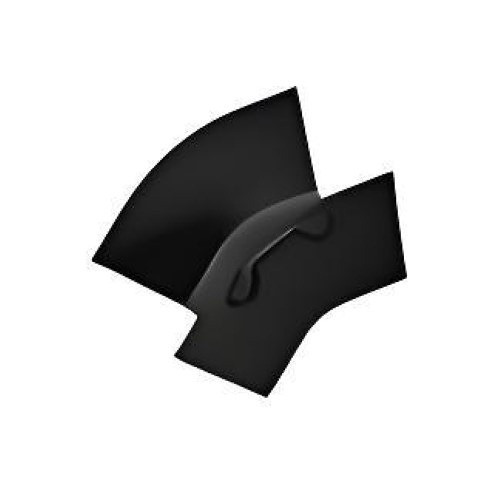

Panduit FROV45CV24YL 45-Degree Outside Vertical Corner Cover
Overview
The Panduit FROV45CV24YL is a 45-degree outside vertical corner cover designed for use with Panduit FiberRunner cable management systems. Vertical corner fittings like the FROV45CV24YL solve a specific installation problem: routing cable pathways through outside vertical direction changes without exposing cable to stress or leaving the raceway system open. Where a standard straight run meets a vertically angled transition, this cover snaps or secures into place to maintain the enclosed channel and protect cable from abrasion at the bend point.
The "OV" designation in the part number confirms outside vertical orientation — meaning this fitting handles cable turns that travel along the outer face of a vertical corner rather than an inside radius. Matching the correct fitting geometry to your raceway layout is critical; using an inside-radius cover on an outside corner leaves gaps that expose cable and compromise the clean routed appearance expected in structured cabling installations.
Compatibility
The FROV45CV24YL is part of Panduit's Panduit FiberRunner fitting family. The "24" in the model number indicates sizing — confirm your existing raceway channel width before ordering, as FiberRunner covers are not interchangeable across size variants. This fitting is intended for use within structured cable management pathways in data centers, telecom rooms, and commercial network infrastructure runs. If you are building out or extending a patch panel or horizontal cabling layout that includes vertical transitions, this cover maintains raceway continuity through those direction changes.
Installation Notes
Outside vertical corner covers are typically the last component placed at a direction change after cable is routed through the main channel body. Confirm the base fitting (the FiberRunner trough itself) is already in place and secured before fitting the cover. The FROV45CV24YL cover does not carry cable on its own — it is a protective closure for the top of the channel assembly at the corner. For projects requiring infrastructure planning support, pre-sales engineering is available to verify fitting selection before ordering.
Frequently Asked Questions
Q: What does the "OV" designation mean in FROV45CV24YL?
A: "OV" stands for Outside Vertical — this cover is designed for outside-radius vertical corner transitions in FiberRunner cable raceway systems.
Q: Is the FROV45CV24YL compatible with all FiberRunner channel sizes?
A: No. The "24" in the part number indicates a specific channel size. Match the cover to your existing FiberRunner trough size to ensure a proper fit — covers from different size families are not interchangeable.
Q: Does this cover include the base corner fitting, or is it a cover only?
A: The FROV45CV24YL is a cover component only. The base FiberRunner trough fitting for the corner must be ordered and installed separately.
Q: Can this fitting be used for inside vertical corners?
A: No. This part is specifically designed for outside vertical corners. Inside vertical corners require a separate fitting with the appropriate geometry.
The FROV45CV24YL is one of those fittings that seems minor until you're mid-install and realize you ordered the wrong corner geometry — an outside vertical cover on an inside corner leaves a visible gap and an open channel. Getting the OV designation right before you pull cable saves a return and a re-run.
Technical Highlights:
- Outside Vertical Orientation: Specifically engineered for outside-radius vertical transitions — the geometry that closes the raceway cleanly where the channel turns away from a wall surface rather than into it.
- Size-Specific Fit ("24" designation): The channel width encoded in the part number means this cover mates precisely with the corresponding FiberRunner trough — no shimming, no gaps, no improvised closures.
- Cover-Only Component: Designed to cap and protect an already-routed channel corner, so cable bend stress at the transition point is managed by the base trough, not the cover itself.
Deployment Considerations:
- Order the base FiberRunner corner trough fitting separately before specifying this cover — the FROV45CV24YL ships as a cover component only and cannot route cable independently.
- Verify the "24" size designation against your installed raceway before ordering; FiberRunner fittings across size families are not cross-compatible and returns on mismatched fittings add lead time to structured cabling projects.
The FROV45CV24YL is the right spec for telecom room and data center cable management builds where FiberRunner troughs take outside vertical direction changes — common in top-of-rack-to-overhead-tray transitions where a clean, closed pathway is required by the cabling standard.
