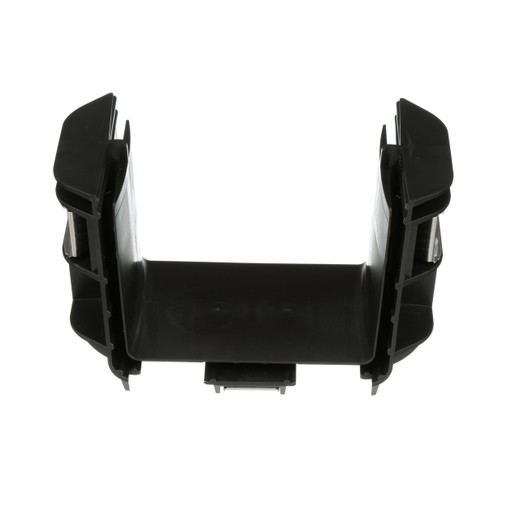

Panduit FRBC4X4LBL FiberRunner QuikLock 4" x 4" Fiber Cable Coupler
The Panduit FRBC4X4LBL joins 4-inch FiberRunner channel sections and fittings without slowing down high-density fiber deployments. Pre-assembled QuikLock mechanism locks mechanically — no fasteners to chase, no torque specs to hit, no tools required for installation. When you need to reconfigure a run or add a branch, a 3/8" socket driver releases the coupler for clean removal. Black polycarbonate/ABS construction handles the thermal swings and seismic loads common in central offices and datacenter hot/cold aisles.
Key Features
- QuikLock tool-less mechanical locking — snaps two 4" x 4" FiberRunner sections together in seconds
- Pre-assembled single-piece design — no loose hardware, no assembly steps on-site
- 3/8" socket-driver release for future modifications or teardown
- Polycarbonate/ABS blend resists impact and thermal cycling in 24/7 environments
- UL-certified fiber optic cable routing assembly through 2024
- Telcordia GR-63-CORE and NEBS Level 3 compliant for central office seismic/thermal requirements
- RoHS compliant for global deployments
- 4.4" overall height maintains generous bend radius for OS2 singlemode and OM3/OM4 multimode trunk cables
The QuikLock mechanism replaces traditional bolted splice plates with a spring-loaded pawl that engages molded detents on the channel lip. Installation is one motion: align the coupler over the joint, press down until you hear the click. The mechanical interlock resists pull-out forces from heavy trunk bundles and prevents separation during cable adds. Unlike friction-fit or clip-on joiners that fail under load, QuikLock couplers stay locked until you deliberately release them. When rack layouts change or you need to add a tee fitting mid-run, a 3/8" nut driver disengages the pawl — the coupler lifts off without disturbing the cable load inside. This matters in live datacenters where you can't afford to interrupt a backbone run to splice in a branch.
Fiber trunk routing in hyperscale and colocation facilities often involves runs exceeding 100 meters with dozens of 144-fiber or 288-fiber MTP trunk cables per 4" channel. The FRBC4X4LBL's 4.4-inch internal height maintains the 1.5-inch minimum bend radius required by TIA-568 for 12-fiber and 24-fiber distribution cables, and keeps larger MTP trunk assemblies from kinking at joints. Polycarbonate/ABS blend handles the -40°C to +65°C range specified in Telcordia GR-63-CORE without cracking or warping, and passes NEBS Level 3 earthquake simulation — critical for installations in seismic zones or central offices with strict service-availability contracts. The black finish matches standard FiberRunner channel and fittings, maintaining a clean visual line in customer-facing colocation suites and above-floor pathways.
UL certification covers the assembled raceway system when used with Panduit FiberRunner channel and fittings, ensuring code compliance for inspections in commercial occupancies. Telcordia GR-63-CORE compliance addresses the thermal, mechanical, and seismic requirements telecom carriers enforce for equipment installed in NEBS-rated central offices. RoHS compliance allows use in EU and California state/municipal projects without exemption paperwork. Single-unit packaging supports just-in-time ordering for projects where exact coupler counts are determined during the walkthrough.
