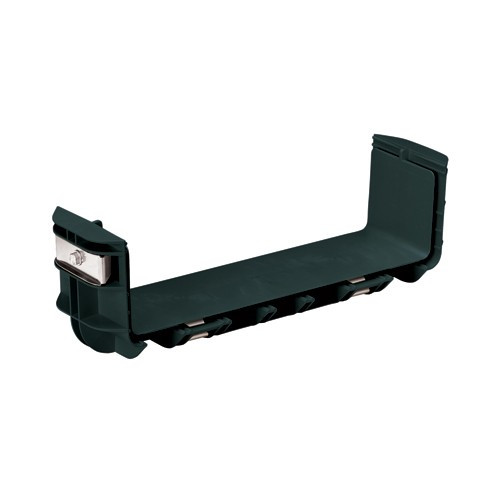

Panduit FRBC12X4LBL FiberRunner QuikLock 12x4 Channel Coupler
Overview
The Panduit FRBC12X4LBL is a QuikLock™ coupler for the FiberRunner™ 12x4 (300mm × 100mm) fiber routing system, designed to join two sections of channel or fittings without tools. In data centers and central telecommunications offices where technicians are running structured fiber pathways across long horizontal or vertical runs, this coupler eliminates the need for screwdrivers or hardware at every splice point — snap the two channel ends together and move on. Constructed from a polycarbonate/ABS blend, it provides the dimensional stability and impact resistance expected in a commercial-grade cable management installation, while keeping weight low enough to matter across dozens of join points in a large-scale deployment. Internal links to Panduit cable management products and the broader wire routing and management category offer additional context for specifying a complete pathway solution.
Key Features
- QuikLock™ Tool-Free Connection: The snap-in QuikLock mechanism joins two FiberRunner 12x4 channel sections or fittings with no tools required. In a data center fit-out where a single row of racks may require 20–30 join points along the overhead tray run, eliminating tools at each point is a real labor-hour savings — not a minor convenience.
- Polycarbonate/ABS Construction: The blend of polycarbonate and ABS delivers the rigidity needed to keep a loaded 12x4 channel properly aligned at every coupler point, while resisting the brittleness that pure polycarbonate can exhibit under repeated thermal cycling in hot-aisle environments. This matters in raised-floor or overhead installations where channel sections can flex during recabling work.
- 12x4 (300mm × 100mm) Form Factor: Sized for the FiberRunner 12x4 channel, which is one of the larger standard cross-sections in the FiberRunner line. At 300mm wide by 100mm tall, this channel accommodates high-density fiber counts typical in core switching or patch-panel rows — the coupler maintains that full internal clearance through the splice point, so bend radius at the join is not compromised.
- RoHS Compliance: Meets RoHS requirements, which is a procurement gate for many enterprise and government contracts in the EU and increasingly in US federal projects. Specifying RoHS-compliant pathway hardware avoids a line-item exception in your submittal package.
- UL-Listed Optical Cable Routing Assembly (to 2024 standards): UL certification on optical cable routing assemblies confirms that the channel system — including couplers — has been independently tested for fire performance and structural integrity. This satisfies the authority having jurisdiction (AHJ) in most US jurisdictions and is required for above-ceiling plenum pathways in commercial construction.
- Telcordia GR-63-CORE and NEBS Level 3 Compliance: NEBS (Network Equipment Building Systems) Level 3 is the full-compliance tier for carrier-grade and mission-critical telecom environments. GR-63-CORE covers seismic, thermal, humidity, and mechanical shock criteria. If you are deploying fiber pathways in a carrier central office, colocation facility, or Tier III/IV data center where NEBS compliance is specified, this coupler qualifies — most generic cable management fittings do not.
- Black Finish: The black color is standard for FiberRunner deployments and is consistent with Panduit's broader cable management ecosystem. Mixing colors in a structured pathway installation creates unnecessary visual clutter in audits and adds no functional value — ordering to match is straightforward.
- Sold as Package Qty 1 (Carton of 5): Each unit ships as a single coupler; the carton quantity is 5. For project ordering, plan your join-point count across the full channel run and order in carton multiples to reduce per-unit handling. Minimum order quantity is 10 units, which aligns with two cartons.
Integration & Compatibility
The FRBC12X4LBL is purpose-built for the FiberRunner fiber routing system 12x4 channel series. It connects channel sections and fittings — including straight runs, 90-degree horizontal bends, vertical drops, and tee fittings — within the FiberRunner 12x4 ecosystem. It is not a universal coupler; do not attempt to mate it with 4x4, 6x4, or other FiberRunner cross-section channels, as the QuikLock geometry is size-specific. When planning a mixed-cross-section installation (e.g., 12x4 main run transitioning to 6x4 branch runs), you will need the appropriate reducer fitting plus the correct coupler for each channel size. Pair this coupler with compatible FiberRunner accessories including covers, splice plates, and mounting hardware to complete the pathway. This system is deployed in data centers and telecom rooms — environments where a structured data center cable management approach is specified from the outset.
What's in the Box
- 1x Panduit FRBC12X4LBL FiberRunner QuikLock 12x4 Coupler
Frequently Asked Questions
Q: What channel size does the FRBC12X4LBL fit?
A: The FRBC12X4LBL is designed exclusively for the FiberRunner™ 12x4 channel, which has a 300mm (approximately 12 inch) width and 100mm (approximately 4 inch) height. It will not fit smaller FiberRunner cross-sections such as 4x4 or 6x4.
Q: Does the FRBC12X4LBL require any tools for installation?
A: No. The QuikLock™ mechanism on the FRBC12X4LBL is a tool-free snap connection. Two channel sections or fittings are joined by pressing them together until the QuikLock engages — no screwdrivers, fasteners, or hardware are needed at the coupler joint.
Q: Is the FRBC12X4LBL UL listed?
A: Yes. The FiberRunner optical cable routing assemblies, including this coupler, are UL listed (certification current to 2024 standards), which satisfies AHJ requirements for optical cable pathway installations in commercial buildings.
Q: Does the FRBC12X4LBL meet NEBS requirements?
A: Yes. The FRBC12X4LBL meets Telcordia GR-63-CORE and Network Equipment Building Systems (NEBS) Level 3 requirements — the full-compliance tier covering seismic, thermal, humidity, and mechanical shock criteria for carrier and mission-critical telecom deployments.
Q: Is the FRBC12X4LBL RoHS compliant?
A: Yes. The FRBC12X4LBL is RoHS compliant, making it suitable for projects with EU environmental directives requirements or US federal procurement specifications that require RoHS compliance.
Q: What is the minimum order quantity for the FRBC12X4LBL?
A: The minimum order quantity (MOQ) is 10 units. The product ships as individual units (package quantity of 1), with a carton quantity of 5, so an MOQ of 10 equals two cartons.
The FRBC12X4LBL is the join piece that makes or breaks a long FiberRunner 12x4 run. The QuikLock mechanism is genuinely fast in the field — on a 40-foot overhead run with couplers every 5 feet, you are talking about 8 join points that require zero hardware, which on a dense data center fit-out translates to real time off the installation schedule. The polycarbonate/ABS material holds up to the thermal cycling you see in hot-aisle/cold-aisle configurations without the stress-cracking that cheaper ABS-only fittings can develop over time.
Technical Highlights:
- NEBS Level 3 / GR-63-CORE: This is the certification that separates telecom-grade pathway hardware from data center commodity. NEBS Level 3 covers seismic Zone 4 events and full thermal/humidity cycling — required language in carrier central office specs and increasingly in Tier III/IV colo submittals.
- UL-Listed to 2024 Standards: The UL listing on the full optical cable routing assembly (not just the channel) means the coupler is part of a tested system — AHJs in most US jurisdictions will accept this without a special inspection, which matters on projects where the electrical inspector is unfamiliar with fiber pathway hardware.
- 300mm × 100mm Clear Channel: At 4.4 inches tall, the 12x4 channel handles high-density fiber bundles without compromising minimum bend radius through the splice — the coupler preserves that full internal cross-section at the join point, so you are not creating a hidden pinch point that shows up as increased attenuation during final certification testing.
Deployment Considerations:
- The MOQ of 10 units means this is a project-quantity item — budget your coupler count early. On a standard data center row, plan one coupler per channel section length (typically every 6 feet) plus additional units for every fitting transition point.
- The FRBC12X4LBL is size-specific to the 12x4 channel. If your design calls for a main 12x4 run branching into 6x4 distribution channels, you will need a separate reducer fitting and the corresponding 6x4 coupler — mixing couplers across channel sizes will not work with the QuikLock geometry.
This coupler is the right call for carrier central offices, Tier III/IV data centers, and any project where NEBS Level 3 compliance is a hard specification requirement — not just a preference. For standard enterprise LAN rooms where NEBS is not required, any in-family FiberRunner coupler of the correct size will serve, but if the submittal package requires GR-63-CORE language, the FRBC12X4LBL is the SKU that closes it.
