Panduit LCDX6-10AF-L Concise Descriptor
Overview

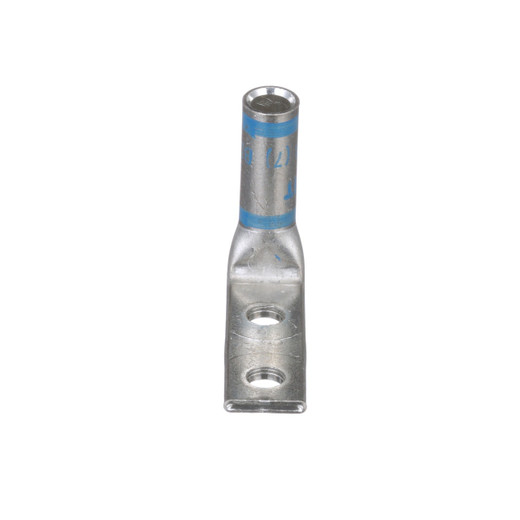

The Panduit LCDX6-10AF-L is a two-hole compression lug designed for terminating #6 AWG stranded copper conductors. It features a 4.8mm (3/16 inch) stud hole size, ensuring a secure and reliable electrical connection for power distribution or grounding applications within industrial control panels, electrical enclosures, or surveillance system power runs. This lug is engineered for direct manufacturer sourcing, guaranteeing genuine Panduit quality for critical infrastructure.
Compatibility
This lug is designed for use with #6 AWG stranded copper wire. The 4.8mm stud hole is compatible with standard terminal studs found on many power distribution blocks, circuit breakers, and grounding bars used in commercial electrical systems and low-voltage power supplies for IP cameras or network equipment.
Installation Notes
Proper installation requires a Panduit P14 tool or equivalent crimping die for #6 AWG wire to achieve the specified compression force. A torque of 30 in-lbs (3.4 Nm) is recommended for the terminal studs to ensure optimal electrical contact and mechanical integrity. Ensure the conductor is fully inserted into the barrel before crimping.
What's in the Box
- 1x Panduit LCDX6-10AF-L Compression Lug
