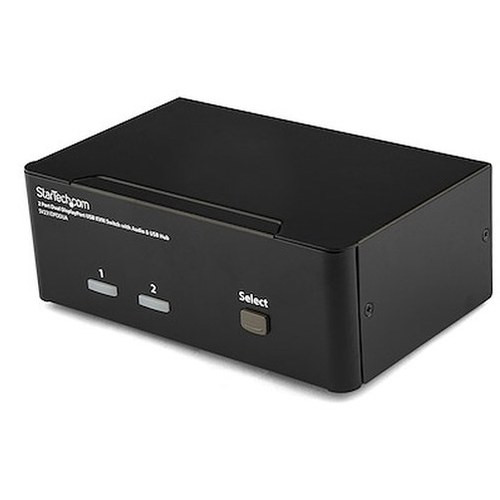

StarTech SV231DPDDUA 2-Port Dual DisplayPort KVM Switch

Overview

The StarTech SV231DPDDUA is a two-port KVM switch built for engineers, workstation operators, and IT administrators who need to drive dual-monitor setups from two separate DisplayPort computers with a single keyboard, mouse, and pair of displays. Where most KVM switches top out at 1080p or 4K on a single output, the SV231DPDDUA pushes 3840x2400 resolution at 60 Hz across both DisplayPort outputs simultaneously — making it a practical choice for high-density CAD workstations, video editing suites, or security operations centers running dual-screen layouts from two machines.

The steel chassis keeps the unit rigid on a desk or in a rack-adjacent install, and the straightforward push-button or hotkey switching means operators can flip between computers without reaching for a second keyboard or navigating software menus. OS-independent operation means Windows, Linux, and macOS hosts all work without driver installs.

Key Features

• 3840x2400 @ 60 Hz Dual DisplayPort Output: Both video outputs run at full 3840x2400 resolution at 60 Hz — not downsampled, not single-output. If you're running dual 4K monitors off two workstations, this is the spec that separates it from budget KVMs that compromise resolution on the second head.
• 7.1-Channel HD Digital Audio: Full 7.1-channel HD digital audio passes through the DisplayPort connection, so audio workstations or multimedia editing rigs retain surround fidelity when switching hosts. You don't lose audio channel depth the moment you flip inputs.
• 3.5mm Analog Audio and Mic Passthrough: A dedicated 3.5mm stereo output and microphone jack on the console side handles analog headsets or desktop speakers independently of the digital audio path — useful in operations environments where a headset is always connected and you don't want to re-plug between host switches.
• USB 2.0 Hub with 2 Downstream Ports: The integrated USB 2.0 hub provides two Type-A ports on the console side, so a USB keyboard and mouse share the same switch without consuming the host's USB budget. USB 2.0 is sufficient for HID devices — if you need USB 3.0 peripheral sharing, plan for a separate hub.
• Hotkey and Push-Button Switching: Two switching methods give operators flexibility — push the front button for tactile switching, or use a keyboard hotkey sequence to flip hosts without lifting hands off the keyboard. Both methods work without software running on the host.
• OS-Independent Operation: No drivers, no agent software, no OS prerequisites. Windows, Linux, macOS, and any other OS that speaks standard HID over USB will work without additional configuration — relevant for mixed-OS environments or locked-down government workstations.
• TAA Compliance: The SV231DPDDUA carries TAA (Trade Agreements Act) compliance, making it eligible for GSA Schedule procurement and federal government deployments where domestic sourcing requirements apply.
• Steel Construction, 18W Consumption: The steel enclosure resists the flex and creep of plastic chassis units on busy desks. At 18W total power consumption from a universal 100–240V AC input, it runs on standard office circuits globally without a voltage converter.
• 0°C to 40°C Operating Range: Rated for standard office and operations-center environments. Not designed for unheated server rooms or outdoor enclosures — keep this in mind if the deployment location runs cold in winter.

Integration and Compatibility

The SV231DPDDUA uses standard DisplayPort cables on both the host and console sides — no proprietary connectors. Host connections use USB Type-B for keyboard/mouse signaling, which pairs with any standard USB Type-A to Type-B cable. Because the switch is OS-independent, it integrates into mixed environments including Windows workstations, Linux engineering systems, and macOS creative stations without any software layer.

The universal power supply (100–240V AC, 0.8A input) accepts any standard IEC power feed, outputting a regulated 12V DC at 1.5A to the switch internally. No external power brick sourcing headaches for international deployments. The unit measures 161mm wide × 100mm deep × 58mm tall and weighs 734g — compact enough to sit beside a monitor stand or mount on a desktop shelf. For government and federal procurement, the TAA compliance status removes a common purchasing barrier on GSA contracts.

Frequently Asked Questions

Q: What is the maximum resolution the SV231DPDDUA supports?

A: The SV231DPDDUA supports up to 3840x2400 resolution at 60 Hz on both DisplayPort outputs simultaneously.

Q: Is the SV231DPDDUA TAA compliant for government purchasing?

A: Yes, the SV231DPDDUA is TAA (Trade Agreements Act) compliant, making it eligible for GSA Schedule and federal procurement programs that require TAA-compliant products.

Q: How do you switch between computers on the SV231DPDDUA?

A: You can switch using the front-panel push button or via a keyboard hotkey sequence. Both methods work without any software installed on the host computers.

Q: Does the SV231DPDDUA require drivers or software?

A: No. The SV231DPDDUA is OS-independent and uses standard HID USB for keyboard and mouse — no drivers or agent software are required on any connected host.

Q: What audio does the SV231DPDDUA support?

A: The switch passes 7.1-channel HD digital audio over DisplayPort, and also provides 3.5mm analog stereo audio output and a 3.5mm microphone input on the console side for analog headsets or speakers.

Q: What is the warranty on the SV231DPDDUA?

A: The SV231DPDDUA carries a 3-year manufacturer warranty.

Ted Perry

The spec that stands out to me on the SV231DPDDUA is the 3840x2400 dual-output ceiling at 60 Hz — that's not a marketing number, that's a real constraint you'll hit fast if you spec a cheaper KVM and then try to run two 4K monitors off two high-res workstations. I've seen integrators save $40 on a KVM and end up locked at 1080p on the second output because the switch couldn't sustain full bandwidth on both heads simultaneously. This unit is built to avoid that scenario.

Technical Highlights:

• Dual 3840x2400 @ 60Hz: Both DisplayPort outputs sustain full resolution simultaneously — critical for dual-monitor setups where dropping to 30Hz or downsampling on the second head is unacceptable for video or CAD work.
• 7.1-Channel HD Digital Audio: Full surround audio passes through the DisplayPort path, preserving channel depth for audio production or multimedia workstations without a separate audio switcher in the chain.
• TAA Compliance: Clears the sourcing requirement for GSA Schedule and federal agency procurement — if you're quoting into a government end-user account, this removes a common line-item rejection.

Deployment Considerations:

• The USB hub is USB 2.0 — fine for keyboard and mouse, but if your operators use USB 3.0 storage or high-speed peripherals at the console, plan a separate USB 3.0 hub alongside this unit rather than routing those devices through the KVM.
• Operating temperature tops out at 40°C — standard office range, but verify ambient temperature if this is going into a compact AV rack or enclosed workstation cabinet where heat can accumulate.

The SV231DPDDUA is the right pick for a dual-screen security operations center or government-cleared workstation environment running two DisplayPort hosts — particularly where TAA compliance is a hard procurement requirement and resolution compromise on either monitor is not an option.
