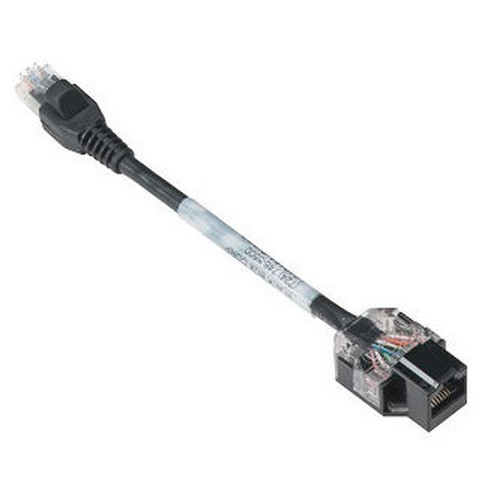

Black Box LS1016A-CISCO Console Server Adapter – RJ45 Female

Overview

The Black Box LS1016A-CISCO is a console server adapter designed to bridge RJ45-based console servers to Cisco equipment using the vendor's standard rollover pinout. If you manage Cisco routers, switches, or other devices out-of-band from a centralized console server, this adapter handles the physical connector translation at the device end — no custom cables, no re-pinning. The LS1016A-CISCO (often searched as LS1016A CISCO) ships in black and seats at the RJ45 Female port on your console server, converting to the pinout Cisco gear expects.

Out-of-band console access is the backbone of remote network management: when an in-band path goes dark, the console port is your recovery route. Having the correct adapter — not a generic substitute — eliminates one more variable from a high-stress recovery situation. Explore the full Black Box networking and connectivity catalog for compatible console server hardware and cabling accessories.

Key Features

• Cisco-Pinout RJ45 Female Interface: Matches the rollover wiring convention that Cisco routers and switches expect on their console ports — plug directly into the device without re-pinning or adapter stacking. This is the detail that matters when you're troubleshooting at 2 a.m.
• Console Server Compatibility: Designed for use with RJ45-port console servers, where a single adapter at the device end replaces custom per-device cables. Standardizes your console cabling across a mixed rack of Cisco equipment.
• Compact Form Factor: The adapter seats at the console server port and adds minimal protrusion — relevant in dense 1U/2U rack environments where cable management space is limited.
• Black Finish: Color-coded black for easy visual identification in multi-adapter environments where different adapter types coexist on the same console server.

Integration & Compatibility

The LS1016A-CISCO is intended for use with Black Box console servers and compatible third-party RJ45-based out-of-band management platforms. Verify that your console server outputs standard RJ45 and that your target Cisco equipment uses the rollover console pinout before ordering — some newer Cisco platforms have shifted to USB-C or mini-USB console ports and do not use RJ45 rollover adapters. For broader network infrastructure accessories including console servers, patch panels, and structured cabling, browse the full category. If you are building or expanding an out-of-band management architecture, review our KVM and console management options for a complete solution. For cabling guidance, consult the network cable and connectivity section.

Frequently Asked Questions

Q: What does the LS1016A-CISCO adapter do?

A: The LS1016A-CISCO is a console server adapter with an RJ45 Female connector that converts the pinout from a compatible console server to the Cisco rollover wiring standard, enabling out-of-band console access to Cisco network equipment.

Q: Does the LS1016A-CISCO work with non-Cisco equipment?

A: This adapter is specifically designed for the Cisco rollover pinout. Compatibility with non-Cisco equipment cannot be confirmed from available evidence — verify the console pinout of your target device before ordering.

Q: Is the LS1016A-CISCO compatible with all Black Box console servers?

A: The adapter is designed for use with Black Box RJ45-based console servers. Verify the specific console server model supports RJ45 adapter-based connections — consult the Black Box console server documentation or contact pre-sales engineering for confirmation.

Q: What color is the LS1016A-CISCO?

A: The LS1016A-CISCO is black.

Ted Perry

The LS1016A-CISCO exists to solve exactly one problem: getting an RJ45 Female console server port talking to Cisco's rollover pinout without a custom cable. In out-of-band management setups — where you're consoling into routers and switches precisely because the network path is unavailable — the last thing you want is a pinout mismatch holding up recovery. This adapter handles that translation at the physical layer, cleanly.

Technical Highlights:

• RJ45 Female Connector: Mates directly with the RJ45 port on compatible console servers, so the adapter sits at the server end and presents the correct Cisco rollover pinout to the device cable — no intermediate adapters needed.
• Cisco Rollover Pinout: Targets the console port standard used across Cisco's router and switch portfolio, which is distinct from standard Ethernet or serial pinouts — using the wrong adapter here means no console response, full stop.
• Black Color Coding: In a dense console server with 8, 16, or 32 ports carrying mixed adapter types for different device vendors, color identification reduces mis-seat errors during initial cabling and during port swaps.

Deployment Considerations:

• Confirm your Cisco equipment's console port type before ordering — newer Cisco Catalyst and ISR platforms increasingly use USB-A or USB-C console ports, not RJ45 rollover, and this adapter would not apply to those devices.
• Available evidence does not include rated operating temperature, pinout diagram, or explicit console server compatibility matrix — verify fit with Black Box's product documentation or pre-sales engineering before deploying in a critical out-of-band management environment.

Best suited for data center or network operations center environments running a Black Box console server against a Cisco-heavy device inventory, where standardized per-port adapters replace a drawer of one-off cables.
