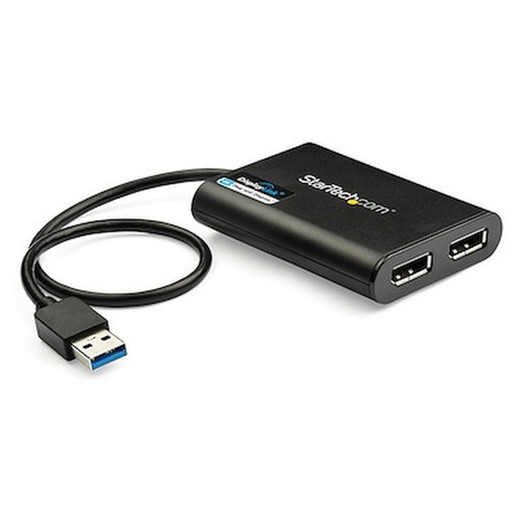

StarTech USB32DP24K60 Dual 4K 60Hz DisplayPort USB Display Adapter

Overview

The StarTech USB32DP24K60 is a compact USB-to-dual-DisplayPort adapter that lets you drive two additional 4K 60Hz monitors from a single USB 3.2 Gen 1 (5Gbps) port on any Mac or PC. If your laptop or workstation lacks spare video outputs but has USB-A bandwidth to spare, this adapter fills that gap without requiring a PCIe slot, a Thunderbolt dock, or a power brick — it runs entirely off USB bus power at 5V DC.

Built around the DisplayLink DL-6950 chipset, the USB32DP24K60 compresses and decompresses video over USB rather than passing raw pixel data, which is how it achieves dual 4K 60Hz output over a single 5Gbps USB link. That approach does require the DisplayLink driver to be installed on the host, but it also means broad OS compatibility across Windows and macOS environments where native GPU outputs are limited or already occupied.

The unit measures 6.1 × 5.6 × 1.2 in and weighs 2.6 oz, so it packs flat into a bag or sits out of the way on a desk. The attached cable is 11.8 in (300 mm) — long enough to reach a USB-A port on the back of a workstation without pulling, short enough to keep the cable run tidy in a dual-monitor desk setup.

Key Features

• Dual 4K 60Hz Output: Both DisplayPort outputs deliver up to 3840×2160 at 60Hz simultaneously — not 30Hz or alternating refresh — so motion in video playback, UI animations, and surveillance footage review stays fluid on both screens at once.
• DisplayLink DL-6950 Chipset: The DL-6950 is a proven compression-based display controller that handles 4K@60 over USB without requiring specialized GPU hardware on the host side. Workstations with integrated graphics or locked-down enterprise images can still push 4K content to two external displays.
• USB 3.2 Gen 1 (5Gbps) Input: The adapter uses a single USB Type-A 9-pin connector. Any USB 3.2 Gen 1, USB 3.1 Gen 1, or USB 3.0 port on the host qualifies. No Thunderbolt, no USB4, no proprietary dock required — straightforward plug-and-play once the DisplayLink driver is present.
• USB Bus-Powered at 5V DC: No external power adapter, no wall outlet needed. The adapter draws what it needs directly from the USB port, which simplifies desk and mobile deployments where outlet access is limited. This also means one fewer cable to manage.
• 2-Channel Stereo Audio: The DisplayPort outputs carry 2-channel stereo audio alongside video, so monitors with built-in speakers or headphone jacks receive audio without a separate USB audio device or 3.5mm splitter.
• Compact, Portable Form Factor: At 2.6 oz and roughly the footprint of a smartphone, the USB32DP24K60 is practical for users who move between conference rooms, field offices, or remote sites and need to replicate a dual-monitor setup without carrying a full dock.
• Operating Range 0°C to 40°C (32°F to 104°F): Rated for standard office and light commercial environments. Not designed for industrial or outdoor enclosures — keep this in mind for any deployment where ambient temperatures may exceed 40°C.
• 0–90% RH Humidity Tolerance: Handles typical climate-controlled office and data center humidity ranges without concern, though it is not rated for condensing environments.

Integration and Compatibility

Because the USB32DP24K60 uses DisplayLink compression rather than a native GPU passthrough, it requires the DisplayLink driver to be installed on the host machine. Most enterprise environments that allow driver installation will work without issue. Locked-down kiosk images or thin clients without driver install permissions will not. Verify your IT policy allows DisplayLink driver deployment before purchasing for managed fleet rollout.

The two DisplayPort outputs accept standard 20-pin DP cables. Any DP-to-HDMI or DP-to-DVI passive adapter will work downstream for monitors that lack native DisplayPort inputs, provided the adapter is passive and the monitor supports the resolution. Active adapters are not required for 4K@60 to DP-native displays.

For workstation operators managing surveillance camera review stations, video wall controllers, or multi-screen dispatch consoles where native GPU outputs are exhausted, this adapter provides a practical path to extending display count without a GPU upgrade. Pair it with a quality DisplayPort cable rated for 4K@60 (HBR3) to ensure signal integrity at full resolution.

IT architects building out USB expansion solutions for hot-desking environments will find the bus-powered design advantageous — no managed power strip or outlet plan required per desk. StarTech's broader display adapter lineup covers HDMI, VGA, and multi-port dock variants if your fleet needs mixed output types.

Frequently Asked Questions

Q: Does the USB32DP24K60 require an external power supply?

A: No. The USB32DP24K60 is fully USB bus-powered at 5V DC, drawing power directly from the host USB port. No external power adapter or wall outlet is needed.

Q: What is the maximum resolution supported by the USB32DP24K60?

A: The USB32DP24K60 supports up to 4K (3840×2160) at 60Hz on both DisplayPort outputs simultaneously.

Q: Does the USB32DP24K60 require driver installation?

A: Yes. The adapter is built on the DisplayLink DL-6950 chipset, which uses software-based video compression. The DisplayLink driver must be installed on the host machine for the adapter to function. This applies to both Windows and macOS hosts.

Q: What is the cable length on the USB32DP24K60?

A: The attached USB cable is 11.8 inches (300 mm). This is a fixed attached cable — not detachable.

Q: Does the USB32DP24K60 support audio output?

A: Yes. The DisplayPort outputs carry 2-channel stereo audio, so monitors with built-in speakers or audio outputs will receive audio through the DisplayPort connection without a separate audio device.

Q: What is the warranty on the USB32DP24K60?

A: The USB32DP24K60 carries a 2-year manufacturer warranty.

Ted Perry

The USB32DP24K60 comes up regularly in security operations center builds and dispatch workstation refreshes where operators need two additional high-resolution screens but the host machine — often a locked-spec corporate laptop or a compact workstation — has no spare GPU outputs. The DisplayLink DL-6950 chipset handles the compression side efficiently enough that 4K@60 on both outputs is genuinely usable for video review and multi-pane VMS layouts, not just document work.

Technical Highlights:

• DisplayLink DL-6950 Chipset: Handles dual 4K@60Hz output over a single USB 3.2 Gen 1 (5Gbps) link via hardware-accelerated compression — no secondary GPU or Thunderbolt port required on the host.
• Bus-Powered at 5V DC: The adapter draws power entirely from the USB port, eliminating the need for a power brick at each workstation — relevant when you're deploying 10–20 operator stations and managing outlet density.
• 2-Channel Stereo Audio via DisplayPort: Audio travels over the DisplayPort signal, so operators using monitor-integrated speakers for alert tones don't need a separate USB audio device added to the workstation BOM.

Deployment Considerations:

• Driver installation is mandatory — the DisplayLink driver must be present on the host before the displays will activate. For managed enterprise environments, include the DisplayLink driver package in your image or deployment script before rollout, not after.
• Operating temperature tops out at 40°C (104°F). The adapter is not rated for server rooms running above that threshold or any partially enclosed equipment cabinet without active airflow. Keep it in a ventilated desktop environment.

For a security operations center or dispatch console where operators are running a compact PC or docked laptop with exhausted native outputs, the USB32DP24K60 is a practical, low-infrastructure way to add two 4K displays without a workstation hardware swap. It's particularly well-suited to hot-desk and shared-console builds where portability and zero external power requirements matter.
