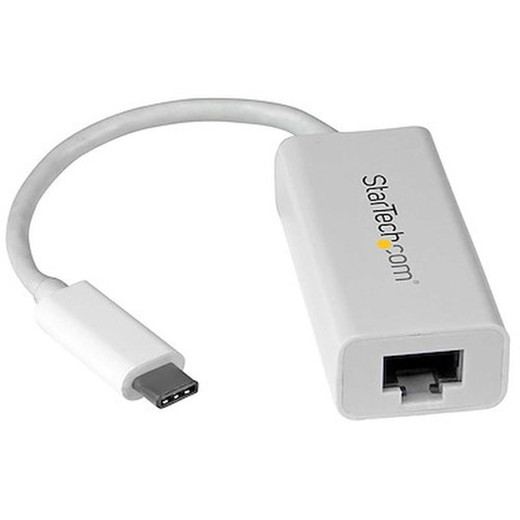

StarTech US1GC30W USB-C to Gigabit Ethernet Network Adapter

Overview

The StarTech US1GC30W is a compact, bus-powered USB-C to Gigabit Ethernet adapter purpose-built for laptops, thin clients, and workstations that lack a native RJ45 port. Running on a Realtek RTL8153 chipset over a USB 3.2 Gen 1 (5 Gbps) bus, it delivers full 1000BASE-T connectivity without requiring a separate power brick or driver installation headaches. At 24 grams with a 125mm attached cable, it disappears into a laptop bag and stays ready for deployment wherever a wired network drop is available.

For IT architects and network adapters procurement teams standardizing USB-C-equipped endpoints, the US1GC30W closes the gap between modern portless hardware and the structured-cabling infrastructure that enterprise and warehouse environments depend on. It supports auto-negotiation across 10/100/1000 Mbps networks, so it functions equally well on aging switch infrastructure and current-generation gigabit switching fabric.

Key Features

• USB 3.2 Gen 1 (5 Gbps) Bus Interface: The 5 Gbps upstream bandwidth means Gigabit Ethernet (1 Gbps full-duplex) is never the bottleneck — the USB bus itself is not the choke point, which matters when you're pushing large file transfers or streaming high-bitrate surveillance footage to a recording server.
• Realtek RTL8153 Chipset: One of the most widely driver-supported USB NIC chipsets available. Linux kernel support is built-in from 4.x onward; Windows and macOS recognize it without manual driver installation in most enterprise OS images — reducing IT provisioning overhead at scale.
• Full-Duplex Gigabit (1000BASE-T, IEEE 802.3ab): Simultaneous 1 Gbps upload and download — relevant for endpoints performing bidirectional data sync, VoIP with video, or acting as a local NVR feed aggregator. Compliant with IEEE 802.3, 802.3u, and 802.3ab for interoperability assurance across managed switch infrastructure.
• 9K Jumbo Frame Support: Jumbo frames reduce CPU overhead on high-throughput transfers by allowing larger payloads per packet. On a workstation pulling 4K streams or bulk surveillance recordings off network storage, enabling 9K MTU on both the adapter and the switch can meaningfully reduce processor load compared to standard 1500-byte MTU.
• Bus-Powered via USB-C (5V DC): No external power supply, no wall outlet required. The adapter draws power directly from the host USB-C port — useful for mobile deployments, temporary network drops at job sites, or field technicians doing remote diagnostics where power access is limited.
• Single RJ45 Port with Auto-Negotiation: Connects to any standard structured-cabling drop. Auto-negotiation handles 10/100/1000 Mbps speed and duplex selection without manual configuration — plug it in and it negotiates correctly with whatever is on the other end of the cable.
• Compact Form Factor, 125mm Attached Cable: The short 125mm pigtail keeps the adapter close to the chassis without the leverage stress on the USB-C port that a longer dongle would introduce. At 0.6 in (16mm) height and 1.1 in (27.5mm) width, it clears adjacent ports on most ultra-slim laptops.
• 2-Year Manufacturer Warranty: StarTech backs the US1GC30W with a 2-year warranty — relevant for enterprise procurement teams qualifying accessories for multi-year deployment cycles.

Integration & Compatibility

The US1GC30W connects to any USB 3.2 Type-C host port. It is backward-compatible with USB 3.1 and USB 3.0 Type-C ports, though the host port must support USB data (not charge-only). It is not a Thunderbolt-exclusive device, so it works on standard USB-C ports found on business laptops, NUCs, and single-board computers alike.

Operating temperature range of 0°C to 45°C covers standard office, data center edge, and light industrial environments. Storage temperature extends to -10°C to 70°C, making it suitable for cold-chain or outdoor-staging kits where the adapter might sit unpowered in a transit case between deployments. Humidity tolerance runs to 85% RH non-condensing.

For teams standardizing on USB network adapters across a mixed fleet of USB-C laptops, the RTL8153-based US1GC30W integrates cleanly into most MDM-managed driver deployment workflows. Pair it with a USB-C docking station if you need simultaneous video output alongside the wired network connection — the adapter itself handles only Ethernet.

If your infrastructure uses jumbo frames end-to-end, confirm that the connected network switch port also has jumbo frames enabled — the adapter supports 9K frames, but mismatched MTU at the switch level will negate the benefit.

Frequently Asked Questions

Q: Does the US1GC30W require driver installation on Windows 10 or Windows 11?

A: The Realtek RTL8153 chipset used in the US1GC30W is recognized natively by Windows 10 and Windows 11 in most configurations. Manual driver installation is generally not required, though enterprise OS images with stripped driver stores may need the Realtek USB NIC driver deployed via MDM or manual install.

Q: What is the warranty on the US1GC30W?

A: StarTech provides a 2-year manufacturer warranty on the US1GC30W.

Q: Can the US1GC30W achieve true Gigabit speeds, or is USB overhead a limiting factor?

A: The adapter uses a USB 3.2 Gen 1 bus rated at 5 Gbps, which is more than sufficient to sustain 1 Gbps full-duplex Ethernet without the USB bus itself being the bottleneck. Real-world throughput will depend on host CPU performance and network conditions, not the adapter's bus bandwidth.

Q: Does the US1GC30W work on USB-C ports that are Thunderbolt 3 or Thunderbolt 4?

A: Yes. Thunderbolt 3 and Thunderbolt 4 ports are fully backward-compatible with USB 3.2 Gen 1 devices. The US1GC30W will function normally on Thunderbolt-equipped ports.

Q: What is the operating temperature range for the US1GC30W?

A: The US1GC30W operates between 0°C and 45°C (32°F to 113°F) and stores between -10°C and 70°C (14°F to 158°F) at humidity up to 85% RH non-condensing.

Q: Does the US1GC30W support jumbo frames?

A: Yes. The US1GC30W supports jumbo frames up to 9K, which can reduce CPU overhead on high-throughput network transfers when the connected switch port is also configured for jumbo frames.

Ted Perry

The thing I keep coming back to with the US1GC30W is that the USB 3.2 Gen 1 bus at 5 Gbps gives Gigabit Ethernet genuine headroom — you're not in a situation where the USB bus is the constraint, which was a real problem with older USB 2.0-based adapters that physically couldn't sustain wire-speed gigabit. The RTL8153 chipset is also one I trust in managed enterprise environments precisely because driver support is broadly baked into modern OS kernels without manual intervention.

Technical Highlights:

• RTL8153 Chipset: Native driver support in Linux kernel 4.x+ and Windows 10/11 reduces provisioning friction when deploying across a large fleet — no driver package management needed in most standard OS images.
• 9K Jumbo Frame Support: On workstations pulling bulk data from NAS or NVR storage, 9K MTU lowers per-packet CPU overhead compared to 1500-byte standard MTU — but only when the switch port is also configured for jumbo frames. Mismatched MTU at the switch kills the benefit entirely.
• Bus-Powered at 5V DC: Zero external power dependency keeps it viable for field technicians and temporary wired drops where outlet access isn't guaranteed. The 24-gram weight means it doesn't add meaningful load to a laptop bag kit.

Deployment Considerations:

• The 125mm attached cable is intentionally short — this is good for port stress management on thin chassis USB-C ports, but if you need the adapter to reach a recessed desk grommet or panel port, plan for a short USB-C extension cable in your kit.
• This is a USB data adapter only — it does not carry video or power delivery signals. If your deployment needs simultaneous display output or laptop charging over the same USB-C port, pair it with a docking station rather than expecting the adapter to handle multiple roles.

The US1GC30W is the right call for IT teams standardizing wired network access on USB-C-only business laptops in conference rooms, temporary workstations, and field service kits — anywhere a lightweight, driver-friendly, bus-powered gigabit drop is needed without the bulk of a full docking solution.
