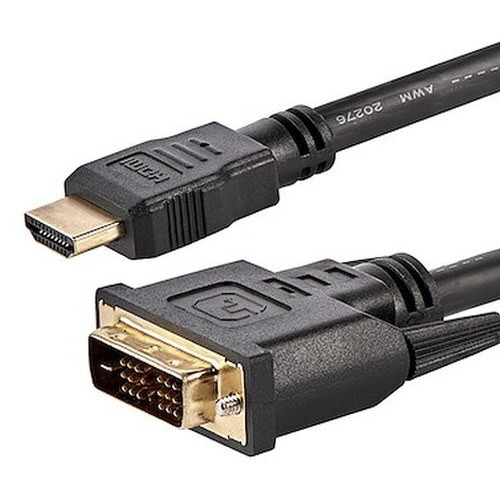

StarTech HDMIDVIMM6 HDMI to DVI-D Passive Adapter Cable

Overview

The StarTech HDMIDVIMM6 is a 6-foot (1.8m) passive HDMI-to-DVI-D cable designed to bridge HDMI output devices — displays, capture cards, matrix switchers, video walls — to DVI-D inputs without any active conversion electronics in the signal path. Passive construction means no power draw, no latency from conversion circuitry, and no additional failure points. If you're integrating a modern HDMI-output source into an existing DVI-D monitor or display infrastructure — a common situation in control rooms refreshing hardware incrementally — this cable eliminates the need for a separate adapter block.

At 5.7 feet of usable cable length (with a 6.0 ft rated product length), the HDMIDVIMM6 fits rack-to-display runs, console operator stations, and video wall edge connections where a short, clean cable route is the goal. The lifetime warranty means you're not tracking a replacement cycle on a consumable.

Key Features

• Passive Adapter Design: No active electronics means no power supply, no firmware, and no compatibility issues introduced by conversion ICs. Signal integrity depends entirely on the cable — which keeps the signal path simple and fault-free in the vast majority of DVI-D-to-HDMI pairings where both ends support compatible digital video signals.
• 28 AWG Wire Gauge: At 28 AWG, this cable is appropriately gauged for a 6-foot run. Thinner than this at longer distances can introduce signal degradation; at under 2 meters, 28 AWG holds signal integrity without the bulk of heavier-gauge cable — useful in dense cable management environments.
• Aluminum-Mylar Foil with Braid Shielding: The dual-layer shield — foil plus braid — blocks EMI from adjacent power cables, switching power supplies, and other RF sources common in rack environments and control rooms. A foil-only cable in an electrically noisy rack can introduce interference artifacts on sensitive displays; the braid layer here addresses that.
• Nickel-Plated Connectors: Nickel plating resists oxidation at the contact points better than bare copper, which matters in installations where cables are left connected for years without re-seating. Corroded contacts are a silent cause of intermittent display drop-out in long-term deployments.
• PVC Cable Jacket: The PVC outer jacket is flexible enough for tight routing in cable trays and behind monitor mounts, and durable enough for permanent installation. Not rated for plenum or outdoor use — this is an indoor, in-rack or desk-run cable.
• Straight Connector Style: Both the HDMI (19-pin Type A) and DVI-D (19-pin single-link) connectors exit straight from the cable. This matters when clearance behind a monitor or at a display port is tight — right-angle connectors are not always an option, and straight connectors here keep the bend radius predictable.
• 1.8m Cable Length: Long enough to reach from a rackmount appliance to a nearby monitor or KVM switch without slack management issues. Short enough that you're not coiling excess behind equipment. This is a purpose-sized cable, not a general-purpose long run.
• Lifetime Warranty: StarTech backs the HDMIDVIMM6 with a lifetime warranty — unusual for a passive cable at this price tier. In a commercial environment where swap-out labor costs more than the cable itself, a no-expiry warranty reduces total cost of ownership.

Integration and Compatibility

The HDMIDVIMM6 connects one HDMI output (19-pin Type A, standard full-size) to one DVI-D input (19-pin single-link). Key compatibility notes: this is a single-link DVI-D cable, which supports resolutions up to 1920x1200 at 60Hz. If your target display or source requires dual-link DVI-D (needed for resolutions above 1920x1200 or refresh rates above 60Hz on high-resolution panels), this cable is not the correct choice — you need a dual-link DVI-D cable. Additionally, since this is a passive cable, analog signals cannot pass through; DVI-A or VGA sources are not compatible. HDMI audio signals are not carried over DVI-D — the display receiving via DVI-D will not receive audio through this cable. Plan audio routing separately if the application requires it.

Common deployment scenarios include: connecting an HDMI-output NVR or video management workstation to a DVI-D monitor in a security operations center, integrating newer HDMI-output hardware into existing DVI-D KVM switches, and general AV or IT rack patching where display infrastructure predates HDMI adoption.

Frequently Asked Questions

Q: Is the HDMIDVIMM6 active or passive?

A: Passive. There are no active conversion electronics in this cable. It works for standard digital video signals shared between HDMI and DVI-D (both are digital interfaces), but it cannot convert analog signals and adds no signal processing.

Q: What is the maximum resolution supported by the HDMIDVIMM6?

A: The HDMIDVIMM6 uses a single-link DVI-D connector (19-pin), which supports up to 1920x1200 at 60Hz. It is not a dual-link cable and will not support resolutions above that threshold.

Q: Will the HDMIDVIMM6 carry audio to my DVI-D monitor?

A: No. DVI-D does not carry audio signals. Even though HDMI supports audio, connecting via this cable to a DVI-D input means audio is not transmitted. A separate audio connection is required if the application needs sound.

Q: What warranty does the HDMIDVIMM6 carry?

A: StarTech provides a lifetime warranty on the HDMIDVIMM6.

Q: Can I use the HDMIDVIMM6 with a DVI-I port?

A: DVI-D connectors are physically compatible with DVI-I ports — the DVI-D plug will seat in a DVI-I receptacle and carry the digital signal. However, the analog pins of the DVI-I port will not be used, and no analog conversion occurs.

Q: Is this cable suitable for plenum or outdoor installation?

A: No. The HDMIDVIMM6 has a PVC jacket rated for standard indoor use. It is not plenum-rated (CMP) and is not designed for outdoor environments.

Jerry Tildsen

The HDMIDVIMM6 comes up regularly in control room and security operations center builds where the monitor infrastructure is DVI-D but the NVR, video wall controller, or workstation output is HDMI. The passive design is the right call here — at 1.8 meters, you do not need active signal boosting, and eliminating conversion electronics removes a potential failure point in a 24/7 environment. The dual-layer shield (aluminum-mylar foil plus braid) is the spec I actually look at first for rack installations; in an electrical room or equipment closet with switching power supplies and UPS units running nearby, foil-only cables can pick up interference that shows as display flicker at the worst possible moment.

Technical Highlights:

• 28 AWG at 1.8m: Correctly sized for this run length — signal integrity is not a concern at under 2 meters with this gauge, and the cable stays manageable in tight cable trays.
• Nickel-Plated Contacts: Resists oxidation over multi-year deployments, reducing the chance of intermittent signal drop-out that's frustratingly hard to diagnose in a live system.
• Lifetime Warranty: Practically speaking, this means you're not budgeting replacement cycles for this cable — a real consideration when labor to swap it in a rack costs more than the part.

Deployment Considerations:

• Confirm the target display uses single-link DVI-D. The 19-pin DVI-D connector on this cable maxes out at 1920x1200 at 60Hz — if you're running a 2560x1440 or 4K panel with a DVI input, you need a dual-link cable or a different signal path entirely.
• Plan audio separately. Any HDMI source audio will not reach the display over this cable — DVI-D carries no audio. Overlooking this in a deployment that needs operator audio at the monitor is a common, avoidable mistake.

For security operations centers running legacy DVI-D monitors alongside modern HDMI-output NVRs or video management workstations, the HDMIDVIMM6 is the right short-run bridge cable — passive, shielded, and backed by a lifetime warranty that removes it from the maintenance conversation entirely.
