StarTech USBPNLAFHD3 Panel Mount USB-A to Motherboard Header Cable

Overview

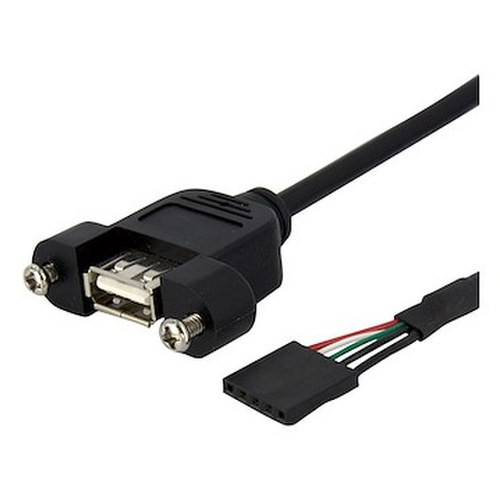

The StarTech USBPNLAFHD3 is a 3-foot internal USB adapter cable that connects a flush-mount USB 2.0 Type-A port directly to a 5-pin IDC motherboard header — the practical fix for systems where you need an accessible front-panel or chassis-mounted USB port without running external adapters or cutting holes freehand. Whether you're building a custom kiosk enclosure, integrating a panel PC into a security console, or adding a maintenance USB port to a wall-mounted NVR chassis, this cable routes the connection cleanly from the board to wherever you need the port on the panel.

At 36 inches (3.0 ft), the USBPNLAFHD3 gives you enough reach to route from a mid-tower or 2U rack chassis motherboard tray to a front or side panel without having to coil excess cable inside the enclosure. The panel-mount USB-A port installs into a standard rectangular cutout and sits flush with the chassis surface — no adapter dongle protruding, no zip-tie-wrapped USB hub hanging inside the door.

Key Features

• USB 2.0 Type-A at 480Mbps: Full-speed USB 2.0 handles firmware update drives, configuration dongles, keyboard/mouse input, and low-bandwidth peripherals without issue. For maintenance and commissioning access, 480Mbps is the correct spec — you're not transferring 4K video files here, you're running setup utilities and credential writers.
• 5-Pin IDC Motherboard Header Connector: Mates directly to the standard internal USB header found on virtually every ATX, mini-ITX, and embedded x86 board produced in the last 15+ years. No adapters required between this cable and the board — plug it into the 9-pin header block (using one port's 5 pins) and you're done.
• 36-Inch Cable Length: Long enough to reach from a recessed motherboard tray to a front panel or side cutout in most 1U through 4U chassis and mid-tower enclosures. If your motherboard sits at the bottom of a full-tower or deep wall-mount enclosure, measure first — 36 inches is the working length you have.
• Aluminum-Mylar Foil with Braid Shield: Dual-layer shielding on the cable jacket (foil plus braid) suppresses EMI interference — relevant when this cable runs through an enclosure alongside switching power supplies, motor controllers, or other noise-generating hardware. In industrial panel PC installs, unshielded USB cables near variable-frequency drives are a known source of data errors; the shielded construction here addresses that directly.
• 24/28 AWG Wire Gauge: The 24 AWG power conductors carry adequate current for bus-powered USB peripherals (up to 500mA per the USB 2.0 spec), while the 28 AWG data lines are sized correctly for the signal frequencies involved. This matters if you're powering a barcode scanner, card reader, or similar bus-powered device off the port — undersized wire causes voltage drop and unreliable enumeration.
• Nickel-Plated Connectors: Nickel plating on both the Type-A receptacle and the IDC header connector resists oxidation better than bare copper contacts, which is meaningful in enclosures with higher humidity or industrial environments where connectors may not be disturbed for months at a time.
• PVC Cable Jacket, 0°C to 50°C Operating Range: Rated for standard indoor operating environments. The 0°C to 50°C (32°F to 122°F) operating temperature covers typical rack room, server closet, and indoor control panel conditions. If your enclosure is in an unheated space that drops below freezing, plan accordingly — this cable is not rated for cold-environment operation.
• Lifetime Warranty: StarTech backs this cable with a lifetime manufacturer warranty, which removes the need to stock spares for warranty coverage purposes. For integrators building systems with long maintenance contracts, this is a meaningful spec.

Integration & Compatibility

The USBPNLAFHD3 is compatible with any motherboard or embedded board exposing a standard 9-pin internal USB 2.0 header (Intel pinout). This header is present on essentially all ATX, Micro-ATX, Mini-ITX, and most embedded SBC designs. The panel-mount USB-A port is designed to install in a standard rectangular chassis cutout — verify your panel's cutout dimensions match before ordering if you're fabricating a custom plate. The cable also works paired with USB 3.0 headers for USB 2.0-speed operation, since the 9-pin USB 2.0 pinout is electrically compatible with the first port on a USB 3.0 header block, though you will not get USB 3.0 speeds through this cable.

Common deployment scenarios include: NVR and DVR chassis with front-panel USB maintenance ports, custom kiosk builds requiring a recessed USB port, industrial panel PCs in control enclosures, and security console builds where a clean panel-mounted USB-A port is needed for credential programming or peripheral connection. Pair this cable with a chassis mounting accessory or panel fabrication hardware appropriate to your enclosure type.

Frequently Asked Questions

Q: What motherboard header does the USBPNLAFHD3 connect to?

A: The USBPNLAFHD3 uses a 5-pin IDC connector that mates with the standard 9-pin internal USB 2.0 header found on ATX, Micro-ATX, Mini-ITX, and most embedded x86 motherboards. It occupies one of the two USB 2.0 ports available on a standard 9-pin header block.

Q: What is the cable length of the USBPNLAFHD3?

A: The cable is 36 inches (3.0 feet) long. This is the full working length from the IDC header connector to the panel-mount USB-A port.

Q: Will the USBPNLAFHD3 work in electrically noisy industrial enclosures?

A: The cable uses a dual-layer shield — aluminum-Mylar foil combined with a braid — which provides meaningful EMI suppression. This makes it better suited for enclosures with switching power supplies or nearby motor controllers than an unshielded cable would be. However, it is rated for 0°C to 50°C operation, so confirm the operating environment falls within that range.

Q: What is the maximum current this cable can supply to a connected USB device?

A: The cable uses 24 AWG power conductors, sized to carry up to 500mA — the USB 2.0 bus-powered device maximum. This supports barcode scanners, card readers, USB flash drives, and similar low-power peripherals. High-current devices requiring more than 500mA need a powered USB hub.

Q: What warranty does the USBPNLAFHD3 carry?

A: StarTech provides a lifetime manufacturer warranty on the USBPNLAFHD3.

Q: Can the USBPNLAFHD3 be used with a USB 3.0 motherboard header?

A: The 5-pin IDC connector on this cable is designed for the 9-pin USB 2.0 header. While the USB 2.0 pinout is electrically compatible with the first port on some USB 3.0 header blocks, this cable will only operate at USB 2.0 speeds (480Mbps) regardless of the header type used. Verify your header pinout before connecting.

Jerry Tildsen

The detail I keep coming back to on the USBPNLAFHD3 is the dual-layer shielding — aluminum-Mylar foil plus braid on a cable this short is genuinely useful, not just a spec checkbox. When we build out NVR or panel PC enclosures alongside 12V switching supplies, an unshielded internal USB cable is a real enumeration liability. StarTech addressed that here.

Technical Highlights:

• Dual-Layer EMI Shield: Foil-plus-braid construction suppresses interference from co-located switching supplies and motor controllers — addresses a known failure mode for internal USB cables in industrial builds.
• 24 AWG Power Conductors: Properly sized for 500mA bus-powered devices; no voltage drop issues with card readers, barcode scanners, or credential writers running off the port.
• Lifetime Warranty: StarTech's lifetime coverage removes this component from your spare-parts rotation — relevant for deployed systems with 5- or 10-year maintenance windows.

Deployment Considerations:

• The 36-inch cable length works well for mid-tower and 2U/4U chassis panel runs — measure from your motherboard header to your intended panel cutout before ordering if you're working with a deep or unusual enclosure form factor.
• Operating temperature ceiling is 50°C — if this cable runs inside an enclosure without active cooling that could see elevated internal temperatures, verify thermal conditions before deployment.

This cable is the right call for security console builds, NVR chassis with front-panel maintenance USB ports, and kiosk enclosures where a clean, flush-mount USB-A port needs a shielded, reliable path back to the motherboard header.
