Speco Technologies H6HRL10TB vs Speco Technologies H6HRLN: Specification Comparison
The H6HRL10TB and H6HRLN are both Speco Technologies 6-channel hybrid DVRs sharing an identical channel architecture: four inputs that accept either TVI coax or IP signals, plus two dedicated IP-only ports. A buyer migrating a coax infrastructure to IP while managing recording storage and VMS integration would legitimately cross-shop these two units. The primary axes of differentiation are onboard storage capacity, codec and compression support, physical form factor, warranty length, and compliance certifications relevant to government and critical-infrastructure procurement.
In This Guide
- Which recorder provides more onboard storage and how does that affect retention planning?
- How do the two recorders differ in compression support, PoE delivery, and physical installation requirements?
- Which recorder offers stronger VMS integration, compliance credentials, and warranty coverage?
- Which should you choose: the H6HRL10TB or the H6HRLN?
- Side-by-Side Specs
- FAQ
Which recorder provides more onboard storage and how does that affect retention planning?
The H6HRL10TB ships with 10TB of onboard storage, a figure stated explicitly in its specs. The H6HRLN's specs do not list any installed storage capacity; the model name suffix 'N' is commonly associated with diskless or no-HDD configurations, but no storage figure appears in the provided specification data and none can be assumed.
For a 6-channel deployment mixing 5MP TVI and IP streams at H.265 compression, 10TB of onboard storage translates to substantially longer retention windows without requiring an external NAS or SAN. Installers sizing retention for 30-day loops at moderate bitrates should verify whether the H6HRLN requires a separately purchased and installed drive before quoting the project, as the total system cost will differ significantly.
How do the two recorders differ in compression support, PoE delivery, and physical installation requirements?
Both units support H.265 and H.264 compression. The H6HRL10TB additionally lists MJPEG as a supported codec; the H6HRLN does not list MJPEG support in its provided specs. H.265 is available on both, providing comparable bandwidth and storage efficiency for the primary codec path.
PoE class differs: the H6HRL10TB specifies PoE+ (802.3at, up to 30W per port), while the H6HRLN specifies PoE (802.3af, up to 15.4W per port). This distinction is consequential when powering cameras with heated enclosures, high-zoom motorized lenses, or onboard analytics requiring elevated wattage. Cameras that require 802.3at will not power reliably from an 802.3af port.

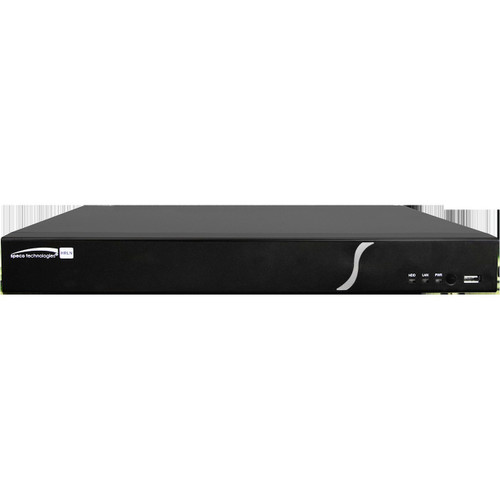

Physically, the two units occupy entirely different form factors. The H6HRL10TB measures 17.6 × 4.0 × 13.0 in and weighs 6.0 lbs, suggesting a desktop or shelf-mount chassis. The H6HRLN measures 1.8 × 9.8 × 1.8 in and ships with rack ears (per package contents), indicating a 1U rack-mount design. The H6HRL10TB's weight is consistent with an installed hard drive; the H6HRLN's slim profile is consistent with a diskless appliance. Installation environment — rack cabinet vs. open shelf — should drive form-factor selection independently of other specs.
Which recorder offers stronger VMS integration, compliance credentials, and warranty coverage?
The H6HRLN carries an explicit NDAA Section 889 compliance certification, making it eligible for federal agency, military, and critical-infrastructure deployments where supply-chain attestation is contractually required. The H6HRL10TB's specs do not mention NDAA Section 889 compliance; specifying it on a federally funded project without confirmation from Speco would require additional due diligence.
VMS integration is more detailed in the H6HRLN spec set: it lists ONVIF Profile S, T, and G plus named compatibility with Milestone and Genetec. The H6HRL10TB lists ONVIF compliance but does not specify which ONVIF profiles are supported, and no named VMS platforms are cited. Integrators deploying into an existing Milestone or Genetec environment have a confirmed integration path with the H6HRLN; the H6HRL10TB would require independent validation.
Warranty coverage favors the H6HRL10TB at 3 years versus 2 years for the H6HRLN. For a recorder expected to run continuously, the additional year of manufacturer coverage reduces total cost of ownership risk over the typical 3–5 year deployment lifecycle. The H6HRLN's spec data also lists the operating system as embedded Linux, which is not stated in the H6HRL10TB's provided specs.
Which should you choose: the H6HRL10TB or the H6HRLN?
Our take: The H6HRL10TB is the stronger choice when onboard storage, PoE+ camera power delivery, and longer warranty coverage are the primary decision drivers. It ships with 10TB installed versus no stated storage on the H6HRLN, supports PoE+ (802.3at) versus the H6HRLN's PoE (802.3af), and carries a 3-year warranty against the H6HRLN's 2-year coverage. Conversely, the H6HRLN is the correct specification for federally funded or critical-infrastructure projects requiring documented NDAA Section 889 compliance, for rack-mount deployments in a 1U cabinet, or for sites running Milestone or Genetec VMS where named integration is confirmed. Buyers should note that the H6HRLN's storage capacity is not stated in the provided specs and must be clarified before quoting. Neither unit should be cross-specified without confirming camera PoE class requirements against the respective port budget.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Speco Technologies H6HRL10TB | Speco Technologies H6HRLN |
|---|---|---|
| Recording Channels | 6 (4 hybrid TVI/IP + 2 IP-only) | 6 (4 hybrid TVI/IP + 2 IP-only) |
| Recorder Type | Hybrid DVR | Hybrid DVR (Type listed as Switch in source data — verify with Speco) |
| Onboard Storage | 10TB | — (not stated in specs) |
| Codec Support | H.265, H.264, MJPEG | H.265, H.264 |
| PoE Standard | PoE+ (802.3at) | PoE (802.3af) |
| Max Resolution | 5MP | 5MP |
| ONVIF Compliance | Yes (profiles not specified) | ONVIF Profile S, T, G |
| VMS Compatibility | — (not stated) | Milestone, Genetec |
| NDAA Section 889 | — (not stated) | Compliant |
| Warranty | 3 years | 2 years |
| Form Factor | Desktop/shelf — 17.6 × 4.0 × 13.0 in, 6.0 lbs | Rack-mount 1U — 1.8 × 9.8 × 1.8 in |
| Housing Color | White | White |
| Audio | Two-way; Built-in mic | Two-way |
| Operating System | — (not stated) | Embedded Linux |
| Compression Savings Note | H.265 saves ~40% vs H.264 (per spec) | — (not stated) |
| Datasheet | /content/product-datasheets/H6HRL10TB.pdf | /content/product-datasheets/H6HRLN.pdf |
Frequently Asked Questions
Which should you choose: the H6HRL10TB or the H6HRLN?
The H6HRL10TB is the stronger choice when onboard storage, PoE+ camera power delivery, and longer warranty coverage are the primary decision drivers. It ships with 10TB installed versus no stated storage on the H6HRLN, supports PoE+ (802.3at) versus the H6HRLN's PoE (802.3af), and carries a 3-year warranty against the H6HRLN's 2-year coverage. Conversely, the H6HRLN is the correct specification for federally funded or critical-infrastructure projects requiring documented NDAA Section 889 compliance, for rack-mount deployments in a 1U cabinet, or for sites running Milestone or Genetec VMS where named integration is confirmed. Buyers should note that the H6HRLN's storage capacity is not stated in the provided specs and must be clarified before quoting. Neither unit should be cross-specified without confirming camera PoE class requirements against the respective port budget.
Can I use high-wattage PTZ or heated-dome cameras with either recorder?
Only the H6HRL10TB specifies PoE+ (802.3at) support, which delivers up to 30W per port and is required by many PTZ cameras and heated enclosures. The H6HRLN specifies PoE (802.3af), which is capped at 15.4W per port. Cameras requiring more than 15.4W will not power reliably from the H6HRLN without a separate PoE injector or midspan.
Which unit is compliant for a government or federally funded security project?
The H6HRLN lists explicit NDAA Section 889 compliance in its provided specifications, making it the documented choice for federal agency, municipal, or critical-infrastructure contracts that require supply-chain attestation. The H6HRL10TB's specifications do not include an NDAA Section 889 compliance statement; buyers should contact Speco directly for confirmation before specifying it on a federally funded project.
Does the H6HRLN come with a hard drive included?
The provided specifications for the H6HRLN do not state any installed storage capacity. The H6HRL10TB explicitly lists 10TB of onboard storage. Installers should confirm with Speco or the distributor whether the H6HRLN ships with a drive installed or requires a separately purchased HDD, as this directly affects the bill of materials and total system cost.
