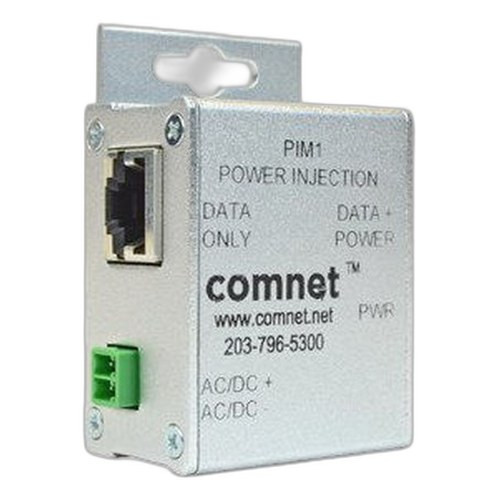

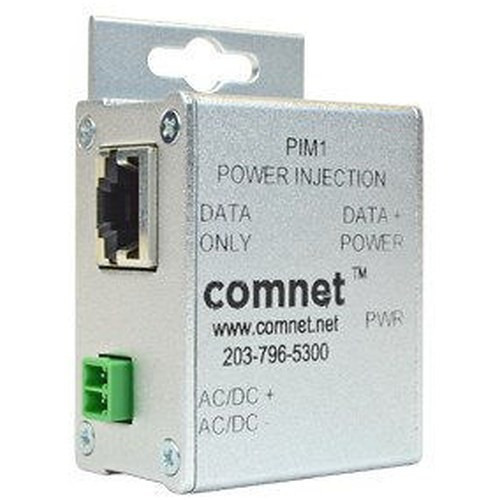

Comnet PIM1 PoE Injector Module

Comnet PIM1 PoE Injector Module

Overview

The Comnet PIM1 is an unmanaged PoE injector designed for industrial-grade power delivery across extended network runs. This module supports 11 ports operating at 10/100 Mbps, making it suitable for distributed surveillance, access control, and IP telephony installations where centralized PoE injection is required at network edge locations. The PIM1 achieves transmission distances up to 330 feet, enabling flexible device placement in security infrastructure deployments without requiring additional power infrastructure at endpoint locations.

Key Features

• 11 Ports: Multi-port configuration supports simultaneous power delivery to multiple PoE endpoints
• 10/100 Mbps Speed: Fast Ethernet data rates suitable for standard IP security cameras, intercoms, and access control devices
• Extended Range: 330-foot maximum transmission distance reduces need for supplementary power supplies in long-run cabling scenarios
• Industrial Operating Temperature: Rated for industrial-grade thermal environments, ensuring reliability in non-climate-controlled enclosures and outdoor-adjacent installations
• DIN Rail Mountable: Standard DIN rail form factor integrates seamlessly into rack-mounted and panel-mounted security infrastructure
• Unmanaged Design: Plug-and-play deployment with no configuration overhead; immediate PoE power delivery upon connection

Integration & Compatibility

The PIM1 operates as an unmanaged PoE injection device, compatible with standard IEEE PoE-compliant endpoints. The 10/100 Mbps speed class supports legacy and current-generation IP security devices, intercoms, wireless access points, and digital signage. Industrial temperature rating qualifies the module for deployment in electrical rooms, outdoor junction boxes, and temperature-variable environments common in security system integration. DIN rail mounting allows co-location with other industrial networking and power distribution equipment.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

During recent planning cycles for distributed IP security deployments, the Comnet PIM1 consistently appeared as a reliable edge injection point for facilities with long cable runs and limited power infrastructure. The unmanaged architecture means zero configuration time—critical when integrating PoE across multiple remote camera locations or access control devices in sprawling campuses.

Technical Highlights:

• 11-Port Capacity: Supports simultaneous power injection across multiple endpoints without centralized switch dependency
• 330-Foot Range: Eliminates need for additional power supplies or midspan injectors on standard CAT5e/CAT6 runs in many real-world layouts
• Industrial Thermal Specification: Operates reliably in non-climate-controlled environments where consumer-grade injectors often fail

Deployment Considerations:

• Verify total PoE budget against aggregate device power draw; unmanaged design does not enforce per-port limits
• Position near power source in electrical enclosure to minimize voltage drop on injection legs
• DIN rail mounting allows parallel installation with breaker panels and other industrial control equipment

The PIM1 remains a dependable choice for integrators managing hybrid networks where edge-location power injection simplifies cabling and reduces infrastructure cost. Its industrial-grade construction justifies deployment in challenging environments where commercial-grade injectors present reliability risk.
