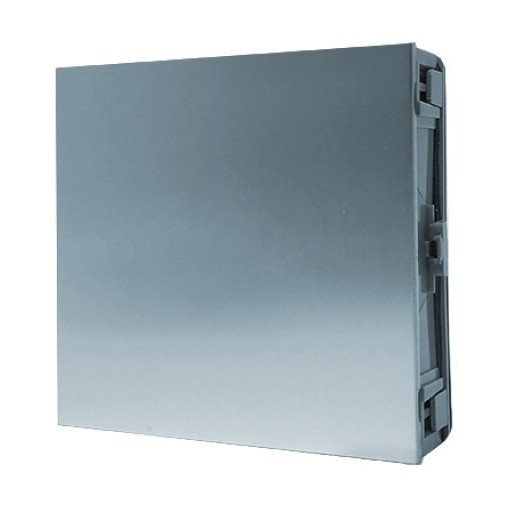

Comelit UT9230M Metal Ultra Blank Module
Overview
The Comelit UT9230M is a metal blank module engineered for expansion within Comelit modular intercom and access control systems. This unit accepts PoE+ (802.3at) power input and supports 4MP video resolution, making it a configurable building block for facilities that require modular video component integration without a pre-integrated camera head. The UT9230M is deployed in residential, commercial, and mixed-use access control architectures where flexibility in module assignment and phased system expansion matter.
Key Features
- PoE+ (802.3at) Power Input: Eliminates the need for separate power supplies at the module location. A single Ethernet run delivers both data and power, reducing wiring complexity during installation and simplifying future relocations within a Comelit system.
- 4MP Video Resolution: Captures 4-megapixel resolution (2688 × 1520 or equivalent), balancing facial recognition legibility with reasonable bandwidth and storage consumption. Useful for entry-point verification without the storage penalty of 8MP or higher.
- Metal Housing: Durable metal construction protects the module against physical handling during installation and daily operation. Standard for professional-grade access control deployments in commercial environments.
- Blank Module Design: Ships without pre-integrated optics or sensor head, allowing assignment of compatible IP camera modules or specialized sensors during deployment. This modular approach defers cost and lets you right-size each module to its location's requirements.
- Modular System Integration: Designed to work within the Comelit ecosystem; follows standard NVR architectures and module mounting/electrical procedures documented in Comelit integration guides. Compatible with Comelit's modular intercom platforms.
- Access Control Ready: Supports integration into door entry, multi-unit residential, and commercial access control workflows where video verification is layered on top of credential readers or keypad entry.
Integration & Compatibility
The UT9230M is built for Comelit system environments. Installation follows Comelit's standard module mounting and electrical procedures. PoE+ power delivery (up to approximately 30W available per port on compatible switches) means the module integrates directly into existing Ethernet infrastructure without additional power hardware. When planning a larger PoE switch deployment, confirm your switch's per-port and total power budget — especially if combining multiple UT9230M units with other PoE devices on the same switch.
The blank module format means you will assign compatible video sensors or optics during commissioning; verify sensor/lens compatibility with your integrator before ordering. System architecture should account for the 4MP resolution footprint in your video retention and storage planning — while 4MP is moderate compared to 8MP or higher, 24/7 recording across multiple modules still requires realistic storage sizing.
When to Choose a Different Model
If you need a pre-integrated camera module with optics already installed, look for Comelit's integrated camera variants in the same modular family — they eliminate the need to source and pair sensors separately. If your deployment requires higher resolution (8MP or above) or specialized analytics such as deep-learning object detection, review higher-megapixel options within the Comelit line. For outdoor, high-impact environments requiring IP67 or IK10 ratings, confirm the UT9230M's environmental tolerances with your integrator; it is marketed as a metal module suitable for access control but may not carry outdoor weathering certifications.
Frequently Asked Questions
Q: Is the UT9230M a complete camera or a housing only?
A: It is a blank module — a housing and interface plate designed to accept compatible video sensor and lens modules. You will configure the optics during deployment based on your location's focal length and field-of-view requirements.
Q: What is the maximum PoE power draw of the UT9230M?
A: The module supports PoE+ (802.3at) input, which can deliver up to 30W per port. Exact power consumption depends on the sensor and lens module you assign to it; consult the sensor specification sheet for precise current draw.
Q: Can I use the UT9230M outdoors?
A: The metal housing provides physical protection, but environmental ratings (IP, IK codes) depend on the specific sensor module installed and any additional weatherproofing enclosures. Confirm outdoor suitability with your integrator before deployment in rain, snow, or dusty environments.
Q: What is the warranty on the Comelit UT9230M?
A: Warranty terms are supplied by the authorized Comelit distributor or integrator. Confirm coverage period and conditions with your supplier at point of order.
Q: Does the UT9230M work with third-party VMS platforms?
A: The UT9230M is designed for Comelit system integration. ONVIF compatibility and third-party VMS support depend on the video module you assign and Comelit's system architecture documentation. Verify interoperability with your VMS during design.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Comelit UT9230M is a modular blank frame, not a standalone camera — that distinction matters for your bill of materials and installation timeline. You're buying a housing, mounting plate, and PoE+ termination point. The 4MP sensor module mounts into it separately, which means flexibility but also means you must coordinate optics sourcing with your Comelit integrator during design phase.
Technical Highlights:
- PoE+ (802.3at) Delivery: Single Ethernet cable supplies power and data. No auxiliary 12VDC supplies or power injectors needed at the module location. Simplifies wiring in conduit-constrained or retrofit deployments.
- 4MP Sensor Placeholder: The 4MP specification refers to the resolution capability of the module once a compatible 4MP sensor is installed. Bandwidth is moderate — roughly 2–4 Mbps depending on compression and frame rate — so it won't saturate gigabit Ethernet or bloat your NVR storage beyond reason on 24/7 recording.
- Metal Housing Durability: Protects wiring terminations and the sensor module from incidental impact during installation. Not a weatherproof enclosure by itself — outdoor use requires additional IP-rated housings or confirmation that your installed sensor module carries its own IP rating.
Deployment Considerations:
- The blank module format requires you to source the sensor/lens kit separately. Confirm the exact part number of the 4MP module you plan to install before ordering the UT9230M frame.
- PoE+ power budget: If you're stacking multiple UT9230M units on a single PoE switch, verify the switch's total power budget. A 48-port managed PoE+ switch typically supplies 480–600W total; plan accordingly if adding other powered devices (IP phones, wireless APs, etc.).
The UT9230M makes sense in phased multi-site access control rollouts where you want to install framing now and assign sensors later, or where standardizing on Comelit modular architecture lets your team maintain consistency across residential communities or multi-tenant commercial buildings. Not the right choice if you need a plug-and-play camera module — order an integrated Comelit camera variant for that.
