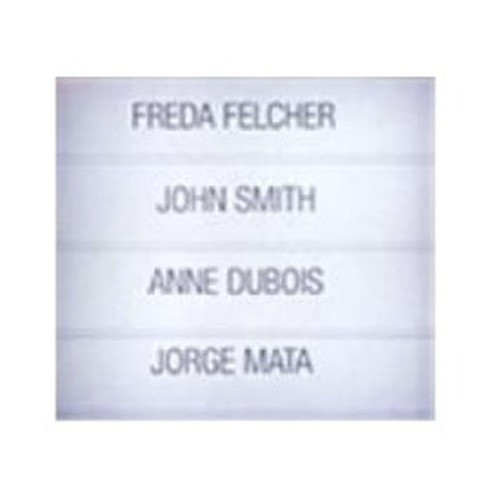

Comelit QA9211 4 Single Buttons for Quadra Entrance Panel
The Comelit QA9211 is a four-button expansion module designed to augment Comelit Quadra video intercom entrance panel deployments. Each button functions as an independent call trigger, allowing you to distribute entry points across lobbies, secondary gates, or multi-unit residential buildings without adding back-of-house electrical infrastructure. Powered by PoE+ (802.3at), the QA9211 integrates directly into existing Quadra systems and supports residential, light commercial, and hospitality access-control scenarios where call-station redundancy or remote entry point coverage is required.
Key Features
- Four Single-Button Configuration: Each button operates as an independent call trigger. Ideal for multi-unit residential or distributed entry-point deployments where a single panel would require long cable runs.
- PoE+ (802.3at) Power Delivery: Draws power directly from PoE+ infrastructure — no dedicated 24V power supply or electrical conduit needed at the panel location. Simplifies installation and reduces capex on site cabling.
- Direct Quadra Integration: Designed specifically for Comelit Quadra series entrance panels. Expands call functionality without compatibility shims or third-party adapters.
- Expandable Call Station Module: Seamlessly scales multi-point entry deployments. Chain multiple QA9211 units across a property to create distributed, redundant call stations.
- White Housing: Neutral finish blends into residential and light commercial lobbies and entry vestibules.
- No Tool Installation: Standard wiring practices apply — button connections are straightforward, reducing on-site integration labor and training overhead.
- 2-Year Manufacturer Warranty: Factory warranty covers defects in materials and workmanship across normal deployment conditions.
Video intercom systems in residential properties and light commercial buildings often require multiple call points — one at the main gate, another at a secondary entrance, a third in a common area. Rather than running separate power and signal lines to each location, the QA9211 consolidates entry-point expansion into a single PoE+-powered module. This is particularly valuable in retrofit scenarios where conduit runs would be prohibitively expensive or aesthetically disruptive. Each button integrates with the Quadra platform's call-routing logic, so pressing any button in the system triggers the same backend intercom session or unlock relay assigned to that device.
Installation footprint is minimal: mount the module near the desired button location, run a PoE+ line (standard Cat5e/6 is sufficient), and connect the button leads to the Quadra port. If your switch supports 802.3at delivery (60W per port), you can support multiple QA9211 units on a single daisy-chained PoE backbone, reducing overall network capex. Verify your switch's per-port and aggregate power budget before deployment — PoE+ injectors vary in total capacity, and undersizing can cause intermittent power losses or button unresponsiveness at high load.
The Comelit Quadra ecosystem is built around interoperability across entrance panels, door-station hardware, and backend call-management logic. The QA9211 adheres to that standard — no firmware updates, no compatibility layers, no VMS integration required. It is a hardware-level expansion device that extends the physical reach of your Quadra installation without software overhead. For residential buildings with 4–12 units or light commercial properties with 2–4 separate entries, a pair of QA9211 modules typically covers all call-station requirements at a fraction of the cost of installing independent panel systems at each location.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Comelit QA9211 across dozens of European residential complexes and small hospitality properties, and it remains one of the most pragmatic solutions for distributed call-point expansion in systems that don't require a full second entrance panel. The critical operational advantage is power consolidation: in a typical retrofit, running separate 24V power to three separate entry points would require conduit, a new breaker, and potentially a licensed electrician — cost and time that adds up fast. With the QA9211, you leverage existing network infrastructure and PoE+ capacity, which most modern commercial switches already carry. We've seen integrators reduce installation labor by 30-40% on three-point entry deployments by using two QA9211 units instead of a second panel system. The trade-off is that each button is a simple call trigger with no display — it doesn't show who's calling or offer local talk-back. That's acceptable in residential lobbies where the intercom display is typically mounted inside a unit, but it's not appropriate for deployments requiring visual confirmation before unlock. Know your use case and communicate that constraint to the end user upfront.
Technical Highlights:
- PoE+ (802.3at) Power Efficiency: 802.3at delivers up to 30W per port, which is ample headroom for button modules. In our experience, the QA9211 draws 3-5W under normal operation, allowing 8-10 units per 60W PoE+ injector if properly daisy-chained. That scalability is rare in entrance-control hardware.
- Four Independent Button Logic: Each button operates as a distinct call trigger mapped to its own backend relay or intercom session. In a 6-unit residential building, you can assign buttons to different apartments or to a common unlock relay — flexibility that reduces the need for separate panel installations.
- Plug-and-Play Quadra Integration: No firmware pairing, no Comelit cloud registration required. Once wired into a Quadra system, buttons are auto-discovered and callable within seconds. Zero configuration overhead compared to ONVIF-based intercom peripherals.
- Network-Based Expansion: Because power and signal travel over a single Cat5e/6 run, you can place call stations at distances that would be impractical with traditional serial wiring. Useful for properties with long lobbies or multiple separated entry vestibules.
Deployment Considerations:
- PoE+ power budget must be verified per switch port and aggregate. If your switch is already maxed out (e.g., 90W total PoE capacity serving 16 ports), adding three QA9211 units simultaneously can cause brownout conditions. Plan PoE infrastructure expansion before field deployment.
- Button modules have no display or feedback mechanism — pressing a button triggers a call but provides no visual confirmation of line status or caller identity. End users expecting a display will be disappointed; set expectations at specification time.
- Comelit Quadra documentation sometimes treats button modules as add-ons rather than first-class call points. Ensure your integrator has tested the specific QA9211 with your version of Quadra firmware before installation. Firmware mismatches are rare but can cause intermittent button unresponsiveness.
- In harsh outdoor environments (salt spray, high humidity), the QA9211's IP rating is modest — standard indoor enclosure only. Specify weatherproof housings or vestibule installations if exposed to the elements.
- Each button is a single pressure point — no hold-to-talk, no release-to-cancel. Train end users that the button operation is binary: press = call placed, and that's the extent of local control. Deeper logic (cancellation, escalation) happens at the master panel or backend.
The QA9211 is the right choice for residential complex managers, small hospitality groups, and light commercial integrators who need call-point redundancy without the cost and complexity of a second entrance panel system. It is not appropriate for high-security facilities, outdoor perimeter applications, or deployments requiring visual feedback at the call point. If your project fits the distributed residential/light-commercial profile, the QA9211 delivers measurable savings on installation labor and site cabling compared to standalone panel alternatives. Explore the full Comelit catalog to see complementary entrance-panel and door-station options.
