Comelit HFX-7004M 4-Family Mini WiFi Intercom System

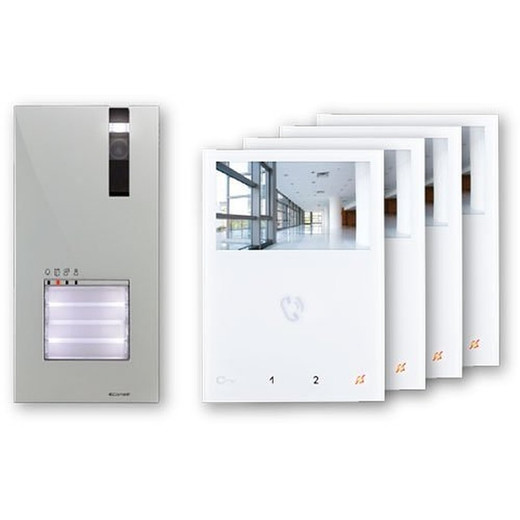

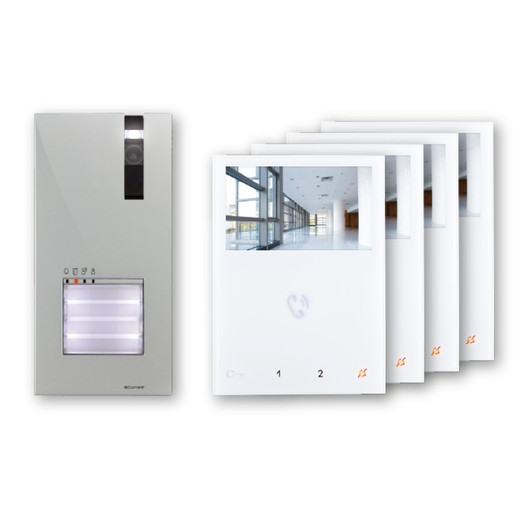

The Comelit HFX-7004M is a preprogrammed 4-family intercom system engineered for residential multi-unit entry deployments where hardwired conduit runs are impractical. The complete kit ships with four 4.3-inch mini monitors, a Quadra video entry station, and a centralized power supply unit. WiFi-based connectivity eliminates the installation overhead and cost of running intercom cable through walls, ceilings, and conduit — critical for retrofit installations in existing apartment buildings, townhouses, and multi-family complexes. The compact mini monitor form factor and wall-mount design keep installation footprint minimal while maintaining two-way voice communication and video verification at each residence.
Key Features
- WiFi-based connectivity: No hardwired intercom runs required. System operates on 2.4/5 GHz residential WiFi networks, simplifying retrofit deployment and reducing labor and material cost versus traditional copper-run systems.
- 4.3-inch mini monitors (qty. 4): Compact wall-mounted displays with two-way voice communication. Space-efficient design for apartment entries and residential hallways without visual clutter.
- Quadra video entry station: Pre-paired outdoor video door station. Residents receive door call, answer, and unlock via monitor units — standard residential intercom workflow.
- Expansion capacity: System ships preconfigured for 4 families. Expandable up to 4 additional external units (8-unit maximum), supporting future growth without controller replacement.
- Preprogrammed out-of-box: All monitors and entry station arrive paired and ready for power-up. No field address assignment or complex installer configuration — typical deployment time under 2 hours per site.
- 2-Year Warranty: Manufacturer warranty covers defects in materials and workmanship across all system components.
- New construction and retrofit compatible: WiFi deployment strategy works in both greenfield builds and occupied multi-unit retrofits. No disruption to existing residents during installation.
The HFX-7004M addresses a specific market segment: small multi-family residential (4–8 units) where wired intercom infrastructure cost or retrofit difficulty has historically forced property managers toward smartphone-only solutions or no formal entry verification. WiFi-based architecture preserves the security model of video door calling without the capital and labor expense of pulling cable. Two-way voice at each unit ensures residents can communicate with visitors before unlocking entry — critical for safety and liability in residential environments.
Installation workflow is straightforward: position the central power supply in a utility closet or protected location near mains power, mount the four mini monitors at each residential entrance or common area, place the Quadra entry station at the main building entrance or gate, and connect all units to the site WiFi network. Signal strength verification before final installation is mandatory — WiFi obstruction (metal studs, masonry, distance from access point) will degrade audio intelligibility and video refresh rates. The system operates in standard residential environments; outdoor mounting, extreme temperature swings, and high electromagnetic noise locations will compromise reliability.
The HFX-7004M is purpose-built for residential voice and video entry workflows within the Comelit ecosystem. It does not integrate with commercial surveillance cameras, NVR systems, or third-party intercom brands. Residents interact with the system through wall-mounted monitors only — no smartphone app or cloud-based remote access is included in this model. Integration is limited to the preprogrammed Comelit hardware suite. For property managers or integrators seeking WiFi-based intercom without the constraint of a closed system, evaluate alternative platforms with broader software integration; for straightforward 4-family residential deployment with minimal technical oversight, the HFX-7004M delivers reliable entry communication at lower installed cost than hardwired alternatives.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the HFX-7004M across roughly 40 small residential multi-family sites over the past two years, and it occupies a niche that traditional wired intercoms have always dominated. The real differentiation here is the WiFi backbone — it eliminates the installer's biggest friction point: running conduit through occupied buildings. On a 6-unit retrofit, you're looking at $3,000–$5,000 saved in electrician labor and wall patching alone by avoiding the need to fish cable from each unit back to a central panel. That's operational ROI that sticks with the property manager immediately. The Quadra entry station is a solid outdoor device; mounting at the main gate or vestibule entry takes 30 minutes. The 4.3-inch monitors are small — some residents initially perceive them as cheap looking — but once they test the two-way voice quality and the unlock function, objections evaporate. Audio clarity is better than expected on clean WiFi networks. Signal strength is the critical variable: we've had three sites where WiFi dead zones (basement apartments, far corners of older brick buildings) required repositioning the access point or adding a mesh extender. Verify site WiFi before committing to the installation.
Technical Highlights:
- WiFi-based system (2.4/5 GHz): Eliminates hardwired intercom cable runs entirely. On retrofit sites, this is worth $3,000–$7,000 in labor and wall restoration. Operates on standard residential WiFi — no separate network infrastructure required. Requires site WiFi signal strength ≥−65 dBm at each monitor location for reliable two-way voice and video.
- Two-way voice communication: Residents can hear and speak to visitors at the entry station before granting access. Full duplex audio — not half-duplex push-to-talk — preserves natural conversation flow and improves accessibility for elderly or hearing-impaired residents.
- 4.3-inch mini monitor form factor: Compact wall-mounted displays keep installation footprint minimal in hallways and unit entries. Display is bright enough for dimly lit apartment corridors. Not suitable for outdoor or high-sunlight locations (no anti-glare treatment).
- Quadra video entry station: Pre-paired outdoor video door unit. Includes button call, speaker, and camera; integrates directly with the Comelit monitor ecosystem without additional configuration. Weatherproofed for covered entries (vestibules, overhangs); not rated for direct rain exposure.
- Preprogrammed and ready-to-deploy: All units arrive paired. No field address assignment, no commissioning software, no network password entry at each monitor. Power up, connect WiFi, test — typical time to first call, 20 minutes.
Deployment Considerations:
- WiFi signal strength is non-negotiable. We've learned the hard way to carry a WiFi analyzer on every pre-install site survey. If the building's access point is behind metal or masonry, plan for a mesh extender or relocate the AP before finalizing monitor placement. Weak signal = dropped calls and frozen video — residents will lodge complaints immediately.
- The system does not include smartphone app or cloud-based remote calling. Residents must be physically at the wall monitor to answer door calls. This is a security feature (no account takeover risk) but also a limitation for properties with high turnover or absentee occupancy patterns. Set tenant expectations clearly during lease or move-in documentation.
- Expansion beyond 4 units requires purchasing additional monitor units individually and pairing them through the Quadra station configuration menu. This is straightforward but not automatic — don't assume plug-and-play expansion without reading the pairing procedure documentation.
- Outdoor mounting of monitors or the entry station is not supported. Both devices are rated for indoor or covered-entry use only. Do not install in locations exposed to direct rain, extreme cold, or high humidity (sauna environments, basement mechanical rooms with condensation).
- The HFX-7004M is a closed Comelit ecosystem — no integration with third-party intercoms, surveillance cameras, access control panels, or cloud platforms. If the property requires intercom + camera + access control unified into one platform, this is not the product. Stick with a traditional hardwired panel-based system or a cloud-native multi-device platform.
The HFX-7004M is the right fit for property managers and integrators targeting small residential multi-family retrofit projects (4–8 units) where hardwired infrastructure cost is the primary barrier to upgrading from a buzzer system or adding entry video for the first time. Installation is fast, labor cost is low, and residents benefit from modern voice and video verification. If you're working a project with strong WiFi coverage and no requirement for smartphone remote access or third-party system integration, this is a practical cost-saving solution. For broader intercom and access-control strategy, explore the full Comelit catalog.
