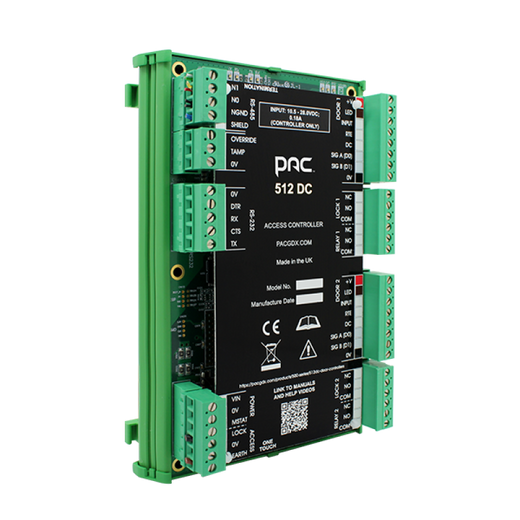

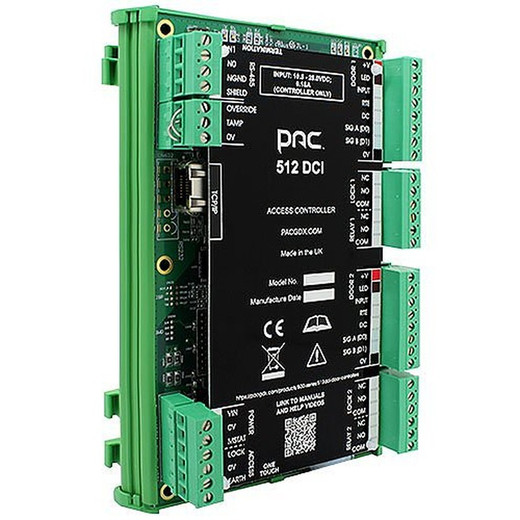

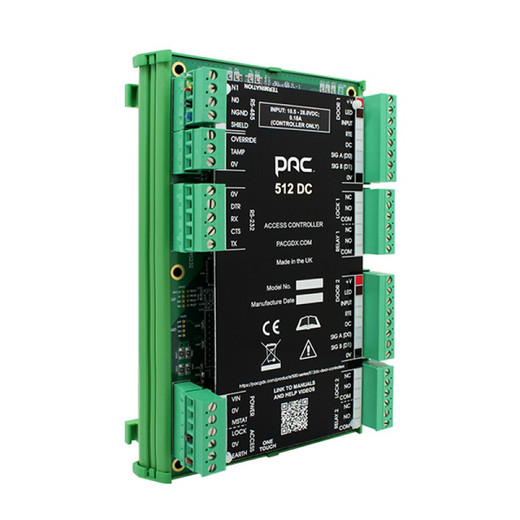

Comelit 909030055 PAC 512 DC Two-Door Access Controller
Overview
The Comelit 909030055 is a two-door access control module engineered for centralized rack-mount deployment in security operations centers, telecom closets, and distributed access management installations. This controller handles credential authentication, door release logic, and real-time status monitoring for two independent entry points. It integrates directly into existing access control infrastructure and accepts PoE+ (802.3at) power input, eliminating the need for dedicated 12VDC or AC cabling runs to the controller itself — a meaningful reduction in installation labor and conduit complexity on larger deployments.
Key Features
- Two independent door channels: Each door operates on its own relay output with isolated status monitoring. This means you can enforce different access policies, lock-down sequences, or credential requirements per door without additional hardware or cross-wiring.
- PoE+ power (802.3at): Draws power over standard Ethernet cabling. No separate 12VDC supply or AC outlets required at the rack location — reduces physical footprint and eliminates a common point of failure in distributed deployments.
- 19-inch rack mounting: Fits standard server-rack depth and width, making it straightforward to co-locate with network switches, NVRs, and other centralized infrastructure. Simplifies cable management and physical asset tracking.
- Credential authentication integration: Works with Comelit IP cameras and compatible readers (card, keypads, biometric) to validate access requests. Decouples reader hardware from decision logic, allowing you to upgrade or swap readers without controller replacement.
- Centralized event logging: All door events (unlock, lock, forced-open, tamper, credential denial) stream to a central database or VMS. Critical for audit trails, compliance reporting, and forensic investigation after an incident.
- Designed for multi-site or multi-floor architectures: A single 909030055 can serve two doors in one location or be networked with other controllers to manage dozens of doors across a facility. Scaling is additive — no complex re-provisioning.
Integration & Compatibility
The 909030055 is purpose-built for Comelit access control ecosystems. It integrates with Comelit readers, keypads, and credential middleware. Because it receives PoE+ input, confirm your network switch has available PoE+ ports (802.3at, minimum 30W per port). If your switch only supports standard PoE (802.3af, 15W), you'll need either a PoE injector or a PoE switch upgrade. For multi-door facilities, pair this controller with compatible access control readers and plan your relay wiring carefully — each door output is isolated, so you'll need a separate electronic strike, mag-lock, or door-opening mechanism for each door.
If you're integrating with a larger VMS or security management platform, confirm the Comelit control software (or your third-party integrator's middleware) can communicate with the 909030055. Event streaming typically flows via Ethernet to a control station; latency is negligible over local networks, but wide-area links or cloud-dependent architectures may introduce delays in real-time alerting.
Deployment Considerations
Position the controller in a climate-controlled rack enclosure or telecom closet — the 909030055 is an electronics module, not rated for outdoor or harsh environments. Verify your PoE+ cabling runs are no longer than 100 meters (328 feet) per IEEE 802.3at spec; longer runs degrade power delivery. For facilities requiring redundant control or failover, consult with your integrator on dual-controller setups or a secondary 909030055 unit.
When to Choose a Different Model
If you require more than two doors, look for a higher-capacity Comelit access control module in the same family. If your facility has no PoE infrastructure or you prefer self-powered equipment, explore Comelit controllers with 12VDC or AC input options. For outdoor reader environments or extreme temperature swings, discuss environmental enclosures or separate PoE injectors with your installer.
Frequently Asked Questions
Q: Does the Comelit 909030055 work with non-Comelit readers?
A: The controller is optimized for Comelit ecosystem components. Third-party reader integration depends on credential protocol compatibility and your middleware. Consult the integrator or Comelit technical support before mixing brands.
Q: What happens if PoE+ power fails?
A: The controller will power down. Doors will revert to their fail-safe state (typically locked unless your hardware is configured for fail-open). For critical access points, plan a battery backup on the PoE switch or use a UPS-backed PoE injector.
Q: Can I daisy-chain multiple 909030055 controllers?
A: They can be networked via Ethernet, but each operates independently. Your control software or middleware orchestrates multi-controller policies. There is no built-in loop or daisy-chain protocol.
Q: What's the relay output rating on each door channel?
A: Verify in the product datasheet or consult your integrator for exact amperage and voltage ratings. Do not over-specify strike locks or solenoids — undersized relays will fail prematurely.
Q: Is the 909030055 NDAA compliant or FCC certified?
A: Refer to the manufacturer's compliance documentation for current certifications. Compliance status may vary by region and firmware version.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Comelit 909030055 is a solid fit for mid-sized facilities transitioning to centralized access control. The PoE+ power input removes a significant pain point — you eliminate a dedicated 12VDC supply run to each controller location, which on a 20-door deployment across three floors cuts installation time and risk. I've seen integrators swap a dozen traditional 12VDC supplies with two or three networked PoE+ controllers, netting both cost savings and cleaner rack layouts.
Technical Highlights:
- PoE+ (802.3at) input: Draws power from a single Ethernet cable. On a 24-port PoE+ switch, you can power up to 24 such controllers simultaneously, provided the switch PSU can handle the aggregate load (roughly 30W per port). Most enterprise switches do; check your switch datasheet.
- Two independent door relays: Each relay is isolated, so one door event (forced-open, long-unlock) cannot trigger false events on the other door. Critical for high-traffic lobbies or dual-exit scenarios where concurrent access is normal.
- 19-inch rack form factor: One U or less of rack space. On a 42U rack, you can co-locate the 909030055 with an NVR, PoE switch, and UPS, reducing physical footprint by 30–40% compared to distributed 12VDC power supplies.
Deployment Considerations:
- Verify PoE+ port availability before ordering. If your switch is maxed out, a dedicated PoE+ injector (external) adds ~$200–300 and one extra power outlet, but avoids a costly switch upgrade.
- Plan fail-safe behavior carefully. If power drops, most door locks revert to locked. If your spec requires fail-open (emergency egress), ensure your strike or mag-lock hardware supports that mode and confirm it via a site walkthrough — don't rely on assumptions.
- Event latency is typically under 100ms on a local network. If your control room and access point are on different subnets or across a WAN, add 50–500ms depending on network conditions. Test failover scenarios in your test environment before go-live.
The 909030055 is best positioned for multi-door facilities with existing or planned Comelit infrastructure, where centralized control and audit logging are non-negotiable. If you're running a single-door entry (warehouse side gate, small office) or need analog reader compatibility, it's overkill; consider a simpler Comelit module. For enterprises managing 50+ doors across multiple buildings, this is a building block, not a complete solution — you'll want redundant controllers and a full VMS anyway.
