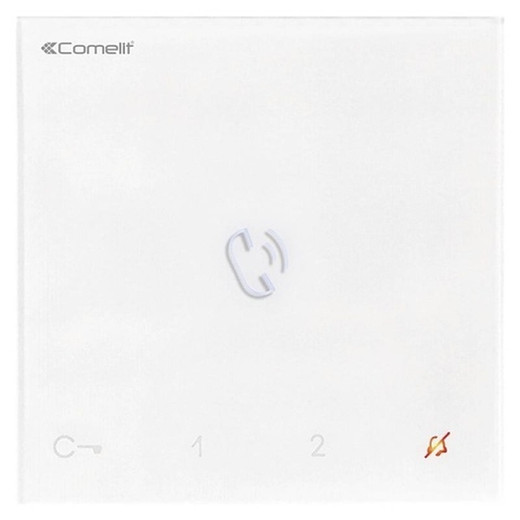

Comelit 6751W Simplebus Mini Audio Door-Entry Phone

Overview

The Comelit 6751W is a wall-mounted mini audio-only door-entry phone designed for Simplebus intercom installations where audio communication suffices without video. The unit delivers full-duplex hands-free audio and operates as a standard floor call endpoint in multi-unit residential or light commercial environments. Mount type is wall installation; finish is white to blend into typical interior settings.

Compatibility

The 6751W integrates into Comelit Simplebus2 audio systems using power supply model 1210A. It functions as an audio endpoint alongside other Simplebus components—door stations, video units, and control modules—on the same network infrastructure.

Installation Notes

The unit includes two 8-position DIP switches for programming user codes and button functions. Physical dimensions are 105×105×20 mm (4.1×4.1×0.79 inches), fitting standard wall-mount backboxes. Requires connection to the Simplebus network and the 1210A power supply. No additional external power supply is needed when wired to the system supply.

What's in the Box

• 1x Comelit 6751W Mini Audio Door-Entry Phone (white)
• 2x 8-position DIP switches (pre-installed)
