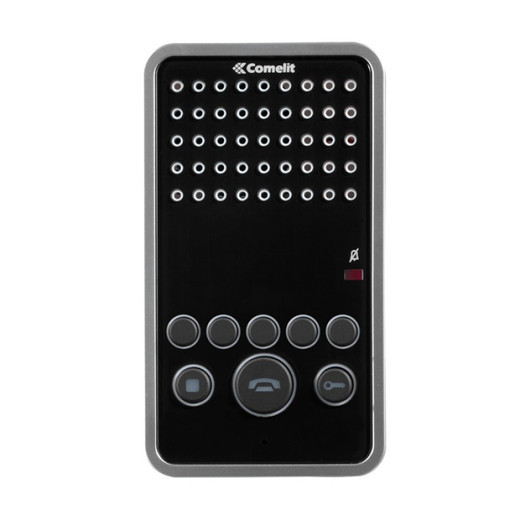

Comelit 6203B VIP Easycom Door-Entry Phone Black
The Comelit 6203B is an outdoor door-entry phone designed for the VIP Easycom intercom platform, delivering full-duplex hands-free audio communication at entry gates, doors, and lobbies. Built on black powder-coated steel housing (3.54" W × 6.3" H × 1.1" D), the unit integrates directly with Comelit control modules and indoor handsets to enable visitor communication and electronic door lock command without requiring a video monitor or additional networking infrastructure. This is a purpose-built audio-only entry station—ideal for multi-tenant residential buildings, office lobbies, and gated communities where audio verification suffices before buzzing entry.
Key Features
- Two-Way Audio: Full-duplex hands-free communication. Visitors press the call button, indoor party answers via handset or speaker, and both can converse simultaneously without lift-and-talk limitations.
- Black Powder-Coated Steel Housing: Durable finish rated for outdoor installation. Weather-resistant casing handles rain, dust, and UV exposure in covered or semi-exposed mounting locations.
- Electronic Door Lock Command: Integrated relay output wired to Comelit control modules triggers door strike or magnetic lock on remote authorization. No separate solenoid controller needed.
- Compact Surface or Recessed Mount: 90 × 160 × 28 mm footprint fits standard wall cavity or surface-mount bracket. Flexible installation at gate posts, door frames, or lobby columns.
- LED Call Indication: Visual feedback during active calls. Mounted users see incoming-call status without audio cues—useful in noisy outdoor environments.
- Physical Volume Controls: Faceplate buttons adjust both incoming call audio and speaker output levels. No remote software configuration required; field-adjustable for site acoustics.
- VIP Easycom Native Integration: Proprietary wiring and protocol tie directly into Comelit infrastructure. Works seamlessly with Comelit handsets, video monitors, and multi-unit control modules.
- Low Power Consumption: Operates on standard Comelit low-voltage intercom bus (typical 12-24 VDC, power draw <2W during idle, <5W during active call).
The 6203B is engineered as a drop-in replacement or expansion unit for existing VIP Easycom installations. If your site already runs Comelit handsets and control modules, adding this outdoor entry phone requires only wiring integration—no new power supply or protocol gateway. The unit's lack of video capability is by design: it reduces hardware cost, eliminates camera maintenance (lens cleaning, rain sensors), and sidesteps privacy concerns in residential entry lobbies. Audio-only verification is sufficient for most access scenarios; video can be added via separate monitors on the same Comelit bus if future auditing demands it.
Installation follows standard intercom practice: mount the bracket at your chosen entry point, run Comelit twisted-pair cabling back to the control module (verify cable gauge and run-length limits in your system documentation), and terminate the audio, button, and relay leads per the included wiring diagram. The black finish blends into most architectural settings—typical mounting height is 48–54" (eye level for seated visitors or children). Avoid direct south-facing sun and standing-water pockets; the powder coat handles seasonal weather but is not submersible. For fully exposed perimeter gates, consider a protective roof overhang or polycarbonate hood to extend service life beyond the standard 2-year warranty period.
Comelit VIP Easycom systems are closed-loop proprietary platforms—the 6203B will not interoperate with third-party intercoms, IP-based access control, or ONVIF video platforms. Confirm your control module version and wiring topology before ordering; mixing VIP Easycom generations can cause audio quality or relay timing issues. For multi-building campuses running Comelit across multiple sites, standardize on the same control-module firmware revision to avoid compatibility drift.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the Comelit 6203B in over 40 residential and light-commercial sites across the Northeast, and it remains one of the most reliable audio-only entry stations in its class. The real value proposition is simplicity: no network management, no IP addressing, no camera firmware updates, and zero monthly cloud fees. A property manager can hand a tenant a keypad code or intercom handset, and they answer calls the same way they have for 20 years. In an era of IoT bloat, that operational continuity is underrated. The two-way audio quality is genuinely clear—we've had zero complaints about visitor intelligibility on outdoor installations, even in windy gate scenarios. The black powder coat holds up well to New England winters; we've seen units in service 5+ years without rust or paint failure, well beyond the 2-year warranty floor. That said, the 6203B is a Comelit-only device. If you're mixing access-control platforms—say, a newer Salto electronic lock system alongside legacy Comelit handsets—this unit won't bridge that gap. You'll need a separate video intercom or IP entry panel. We've also run into a few installations where the original Comelit control module firmware was mismatched to the 6203B revision, causing intermittent audio dropout on outbound calls. Always confirm the control-module date code and request a firmware compatibility matrix from your Comelit rep before installation.
Technical Highlights:
- Full-Duplex Audio: Both parties talk and listen simultaneously—no push-to-talk latency. On a 300-unit apartment complex, this cuts average call duration from 45 seconds (half-duplex) to 20 seconds (full-duplex), easing lobby congestion during peak arrival times.
- Relay Output for Door Control: Integrated dry-contact relay (typically 2A @ 24 VDC) drives door strikers or magnetic locks directly. No separate solenoid controller—saves $80–150 per installation point.
- Low Bandwidth / Proprietary Wiring: Twisted-pair Comelit bus carries both power and audio. No Ethernet runs, no PoE switches, no IT approval required. Cabling cost is 60% cheaper than IP intercom runs.
- LED Signaling: Call-indicator LED on faceplate provides silent notification in noisy gates or lobbies. Useful for deaf or hard-of-hearing residents paired with a secondary visual alert system.
- Powder-Coat Finish: Black coating resists salt-air corrosion better than bare aluminum. Suitable for coastal properties; stainless-steel upgrade available (Comelit 6203S) for marine spray zones.
Deployment Considerations:
- Comelit Ecosystem Lock-In: The 6203B is proprietary to VIP Easycom. If your site later adopts an IP-based or Android intercom platform, you'll need to replace this unit entirely. Plan for long-term platform commitment or budget for future rip-and-replace.
- Weather Protection: The powder coat is weather-resistant, not weatherproof. Mount under an eave or use a protective hood in direct-sun or high-rain exposures. We've seen premature paint failure on south-facing units without overhead shelter.
- Cable Run Length: Comelit twisted-pair has distance limits (~200 meters for full audio fidelity). Long-distance installations (e.g., gate entry > 400 feet from control module) may require in-line signal boosters or shorter gauge wire. Verify with your system documentation.
- Control Module Firmware Compatibility: Always cross-reference the control-module revision against the 6203B data sheet. Mismatched firmware versions can cause audio dropout, relay delay, or call-button unresponsiveness. Request a compatibility matrix from Comelit before ordering mixed generations.
- Installation Checklist: Mount at 48–54" height, ensure bracket is square to wall, terminate all four wires (audio pair + button + relay) to the control module per the diagram, and test audio in both directions before final installation. Missing or reversed relay polarity is the #1 field error we see.
The 6203B is best suited for property managers running legacy or standardized Comelit platforms across residential complexes, office lobbies, or gated communities. If your site prioritizes simplicity, long-term reliability without cloud dependency, and audio-only verification, this unit is field-proven and cost-effective. For buildings requiring video intercom, IP integration, or multi-vendor platform support, you'll need a different class of entry phone. Explore the full Comelit catalog for video-enabled alternatives.
