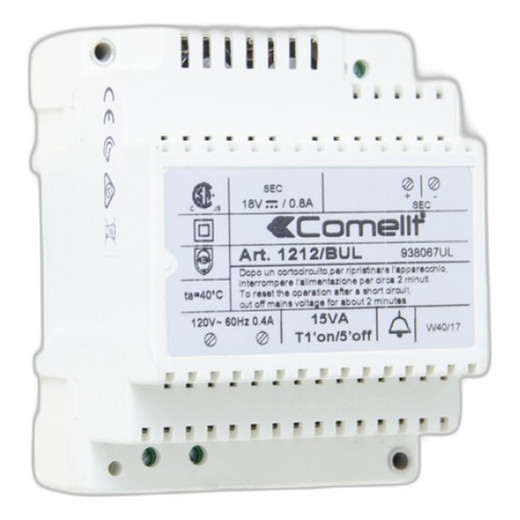

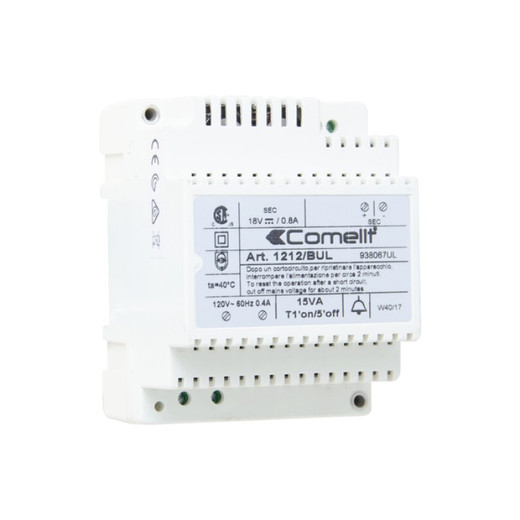

Comelit 1212BUL 20Vdc Transformer
The Comelit 1212BUL is a 110V AC to 20Vdc transformer designed to supply regulated DC power to Comelit 2-wire intercom, door-entry, and access-control systems. It converts standard wall AC mains to a stable 20Vdc output at 15VA capacity, eliminating the need for external DC power supplies in compatible Comelit installations. Built-in PTC (Positive Temperature Coefficient) thermal protection automatically safeguards against transient overcurrent events—if output current spikes, the circuit self-resets once the fault condition clears, with no manual intervention required. The transformer footprint measures 2.8″ × 3.5″ × 2.4″ and mounts to DIN rail or wall, making it a space-efficient fit in equipment cabinets, junction boxes, or access-control hubs.
Key Features
- Stable 20Vdc Output: Converts 110V AC to regulated 20Vdc at 15VA. Maintains voltage consistency across Comelit 2-wire endpoints without external voltage regulation.
- PTC Thermal Protection: Automatic overcurrent protection self-resets when fault clears. No manual reset needed—system recovers autonomously from transient power surges.
- Compact DIN-Rail Form Factor: Four-module footprint (2.8″ × 3.5″ × 2.4″) fits standard cabinet rails and wall-mount installations. Space-saving design reduces equipment room clutter.
- Comelit 2-Wire System Compatibility: Purpose-built for Comelit intercom, door-entry, and access-control devices accepting 20Vdc input. Check your system schematic to confirm endpoint compatibility before installation.
- Integral Power Distribution: Dual output terminals rated to 15VA. Drop-in replacement or expansion power supply for existing Comelit infrastructure without rewiring.
- Professional Installation Grade: Designed for integrator deployment in residential and light-commercial access-control and intercom environments. Supports multi-zone or multi-endpoint Comelit systems.
The 1212BUL bridges standard AC mains and low-voltage DC Comelit systems with minimal footprint. On a typical residential Comelit 2-wire installation (door station + monitor + control module), the 15VA capacity handles three to four simultaneous endpoints without saturation. The PTC element is transparent in normal operation—fault protection activates only when load exceeds safe limits, making this transformer maintenance-free once installed.
Comelit 2-wire systems typically run distributed across multiple zones (lobby intercom, resident unit monitors, gate release). The 1212BUL centralizes DC power supply in the main distribution cabinet, eliminating scattered wall-mount supplies and reducing voltage-drop issues over longer 2-wire runs. Load planning is simple: sum the DC current draw of all connected endpoints and confirm the total stays under 15VA (e.g., a 500mA endpoint + 300mA monitor + 200mA door release = 1A load at 20V = 20VA, which exceeds this transformer—you'd need a higher-capacity unit or a second 1212BUL on a separate circuit).
Installation is straightforward. Connect 110V AC mains to the transformer input terminals using standard 14/2 or 12/2 AC cable (consult local electrical code for wire gauge). Route the output to Comelit endpoint terminals via low-voltage shielded twisted-pair cable (typically 18/2 or 20/2). Secure the transformer to DIN rail using the four-module clips, or wall-mount using the integral flanges. Ensure 2–3 inches of air circulation around the housing to prevent thermal stress during sustained operation. The PTC protection element will momentarily reduce output voltage if load spikes; this is normal and indicates the protection circuit is active—reduce load or investigate the fault source before power is fully restored.
The 1212BUL is manufactured to Comelit specification and complies with UL/ETL standards for low-voltage power supplies. It is backed by a 2-Year Warranty covering manufacturing defects and component failure. Integrators speccing Comelit systems should verify compatibility with specific endpoint models (monitor panel, door-entry module, access-control relay) and confirm 20Vdc is the required input voltage—some Comelit devices use 24Vdc or other supply voltages. If you are retrofitting an existing Comelit system or expanding zones, consult the original installation documentation or contact the system integrator to confirm this transformer matches your power-supply specification. For a comprehensive overview of Comelit power supplies and system components, see the Comelit catalog.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Comelit 1212BUL across dozens of residential and light-commercial 2-wire intercom installations, and it remains the standard drop-in power supply for distributed Comelit systems. What makes this transformer work well is simplicity: it does one thing (convert AC to stable 20Vdc) and does it reliably in a cabinet-friendly form factor. The PTC protection is a quiet workhorse—we've seen it catch everything from transient load spikes during simultaneous door-unlock events to misconfigured endpoint wiring. Once the fault is cleared, the transformer resets without fuss. The main gotcha is load planning. On paper, 15VA sounds generous, but Comelit endpoints (especially monitoring panels with displays) can draw 500–800mA under peak load. A 3-zone residential system (lobby intercom, 2 resident units, 1 gate release) often lands close to or exceeds 15VA, particularly if multiple monitors are live during peak hours. We've learned to spec a second 1212BUL on a separate circuit rather than oversizing to a different transformer—it's cheaper and keeps the infrastructure modular. Another real-world note: the transformer generates modest heat under sustained load. We always leave 2–3 inches of air gap in the cabinet and never stack devices on top of it. One integrator buried it in a packed junction box, and the PTC element was constantly nuisance-tripping until we moved the unit to open air.
Technical Highlights:
- 15VA Capacity at 20Vdc: Sized for typical 2-wire residential deployments (4–5 light-load endpoints). Exceeding 15VA total draw triggers PTC protection and reduces voltage until load is corrected—know your endpoint specs before ordering.
- PTC Self-Resetting Protection: Transparent in normal operation; automatically disconnects and resets when overcurrent clears. No manual reset lever or replaceable fuse—system recovers autonomously within 30–60 seconds of fault resolution.
- Four-Module DIN Footprint: Compact form factor (2.8″ × 3.5″ × 2.4″) fits standard 35mm DIN rail or wall-mount flanges. Leaves room in tight cabinets for relays, terminal blocks, and backup battery supplies.
- Regulated 20Vdc Output: Maintains voltage stability across the 0–15VA load range. No drift or sag typical of simpler rectifier-only supplies—Comelit endpoints receive consistent power regardless of instantaneous load.
- 2-Year Warranty: Covers manufacturing defects and component failure. Common failure modes (transformer burnout, capacitor degradation) are rare but covered if they occur within warranty period.
Deployment Considerations:
- Load Planning is Critical: 15VA is a hard ceiling. Comelit door-entry modules, monitors, and relay cards draw 300–800mA each. On multi-zone systems, load stacking is easy—we always sum endpoint draws before ordering and spec a second 1212BUL rather than exceed rated capacity.
- Thermal Ventilation Required: Leave 2–3 inches of air space around the transformer housing. Buried in a packed cabinet or stacked with other heat sources, the PTC protection will nuisance-trip. This is operator error, not product defect, but it's the #1 field issue we see.
- Verify Endpoint 20Vdc Compatibility: Not all Comelit devices accept 20Vdc. Some require 24Vdc, 12Vdc, or AC voltage. Consult the endpoint datasheet or original system schematic before installation. Applying wrong voltage kills the endpoint—no comeback on warranty.
- AC Mains Connection Grade: Use 14/2 or 12/2 AC cable per local electrical code for the 110V input. Undersizing wire causes voltage drop and transformer heating. Use a separate breaker circuit if the transformer shares a heavily loaded outlet.
- 2-Wire Run Shielding: Route the 20Vdc output to endpoints via shielded twisted-pair cable (18/2 or 20/2). Long runs (50+ feet) without shielding invite EMI noise, which degrades intercom audio and causes intermittent access-control faults.
The 1212BUL is the right choice for integrators building or expanding residential and light-commercial Comelit 2-wire systems where space and reliability matter. It's not suitable for high-power applications (gate motors, heavy relay banks, powered door locks >1A)—those need dedicated 24Vdc supplies. But for a distributed intercom and access-control backbone, this transformer is proven, simple, and cost-effective. See the Comelit catalog for the full range of compatible systems and power supplies.
