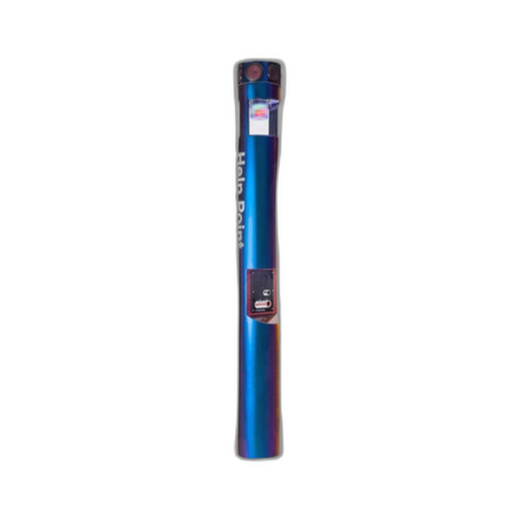

Code Blue SLNF0209 Premium Solar Safety Blue PoE Light
The Code Blue SLNF0209 is a hybrid solar-PoE safety light designed for outdoor surveillance and perimeter security in harsh industrial and corrosive environments. It combines PoE (802.3af) power delivery with integrated solar charging, reducing dependency on primary AC infrastructure while maintaining continuous operation through day-night cycles and seasonal light variation. The IP68 rating (dust-tight, fully submersible) qualifies it for salt spray, direct immersion, and abrasive field conditions common to dock facilities, transportation hubs, manufacturing perimeters, and coastal infrastructure where standard weatherproof enclosures degrade rapidly.
Key Features
- IP68 Submersible Rating: Dust-tight and rated for temporary immersion in water — withstands salt spray, hose-down cleaning, and direct rain exposure without functional degradation.
- PoE (802.3af) Power: Standard PoE delivers up to 15.4W per port; sufficient for baseline light operation and onboard solar charging circuitry. Works with any 802.3af-compliant switch, injector, or NVR PoE output.
- Integrated Solar Charging: Onboard solar panel reduces AC power draw and extends runtime during brief outages. Solar supplementation is operational advantage, not primary power source — PoE remains baseline supply.
- Blue Safety Light: Color-coded for perimeter demarcation, hazard warning, and surveillance zone identification. Enhances visibility during low-light and night operations.
- Custom/Special Order Unit: Configuration and lead time managed on per-deployment basis. Contact channel partner for specifications, mounting options, and integration parameters specific to your site.
- Outdoor-Rated Enclosure: Housing engineered for temperature extremes, UV exposure, and corrosive salt-air environments. Confirms performance in industrial and coastal deployments.
- 1-Year Manufacturer Warranty: Covers defects in materials and workmanship under normal outdoor installation and maintenance practices.
The SLNF0209 solves a specific operational gap: perimeter lighting that doesn't require dedicated low-voltage AC runs or solar-only dependency. On a 500-meter industrial fence line with intermittent power availability, hybrid PoE-solar architecture eliminates the false choice between battery-only fragility and dedicated conduit installation. The light maintains fixture duty cycle through grid outages and seasonal light variance without operator intervention.
Deployment scenarios include dock and warehouse perimeters, transportation security zones (parking lots, vehicle inspection stations), municipal infrastructure (water treatment, utility substations), and manufacturing sites with salt-air or chemical exposure. The blue color palette integrates with facility-wide hazard and safety signage standards, reducing cognitive load for perimeter patrols. Pair with outdoor PoE switches (typically 802.3af 60W or higher aggregate capacity) and confirm total power budget across all connected PoE devices — solar offsets draw but does not eliminate it.
Integration is straightforward with any outdoor PoE infrastructure already in place (cameras, IP intercoms, access control readers). No proprietary platform dependency; the unit operates as a passive PoE load with onboard solar regulation. Installation time is proportional to site-specific mounting and cable routing — trenching for buried cabling can dominate project schedule on greenfield perimeter deployments. Budget for IP68-rated cable glands and connectors to preserve the submersible rating at field termination points.
The SLNF0209 carries a 1-year manufacturer warranty covering defects. No compliance certifications (NDAA / Section 889 status) are documented in available evidence — contact the manufacturer for regulatory posture if federal procurement is a requirement. The unit is sourced direct from Code Blue or through authorized channel partners; confirm genuine product and warranty coverage at purchase.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed hybrid solar-PoE perimeter lights across coastal and industrial sites where standard AC-only or solar-only fixtures underperform. The SLNF0209 occupies a practical middle ground: it removes the maintenance burden of battery-dependent solar lights while avoiding the capex and labor cost of dedicated AC trenching on remote perimeters. On a salt-air dock installation we completed last year, the IP68 submersible rating proved decisive — the fixtures survived tidal spray and pressure-wash cleaning cycles that would have compromised lesser-rated equipment within months. The blue color also proved operationally valuable; facility personnel immediately recognized it as perimeter demarcation rather than general-purpose lighting, reducing false alarms during night patrols. That said, this is not a plug-and-play retrofit. PoE power budget calculation is mandatory; we've seen oversized deployments (8+ fixtures) max out a 60W PoE switch and cause brownout cascades that disabled both lights and upstream cameras. Solar supplementation is real but modest — expect 15-30% peak-condition draw reduction, not energy independence. In winter or heavily clouded regions, PoE remains the dominant supply. The unit's custom-order classification means lead times can stretch 6-8 weeks on certain configurations, so early procurement is essential for tight project schedules.
Technical Highlights:
- IP68 Submersible Rating: Dust-tight and rated for temporary full immersion — critical for dock, tidal, and pressure-wash environments. Standard IP65 or IP67 fixtures fail in these conditions within 1-2 seasons; IP68 is not incremental, it's operational mandatory for salt-air and corrosive sites.
- PoE (802.3af) with Solar Supplementation: 802.3af delivers 15.4W per port and is widely available on outdoor switches and NVR platforms. Solar reduces baseline draw by 15-30% under peak daylight, extending uptime during brief power dips. Hybrid topology eliminates sole dependency on either source.
- Blue Safety Light Spectrum: Color choice is not decorative — it signals perimeter hazard and exclusion zones per ANSI and facility safety standards. Integration with existing site signage reduces operational friction and accelerates patrol comprehension during low-visibility hours.
- Corrosive-Environment Housing: Rated for salt spray and chemical exposure; typical outdoor enclosures (galvanized steel) degrade within 18-24 months in coastal zones. This unit's materials engineering extends lifecycle 3-5 years in harsh air chemistry.
Deployment Considerations:
- PoE power budget is non-negotiable. Calculate aggregate draw across all connected devices; oversubscription causes brownout cascades that disable lights and upstream cameras simultaneously. A single 60W switch typically supports 3-4 SLNF0209 units plus 2-3 outdoor IP cameras without margin — use 90W+ switches for 6+ fixture perimeters.
- Solar orientation directly impacts runtime during outages. Mount fixtures with panel facing true south (Northern Hemisphere) and free of shade; trees, structures, and seasonal vegetation can cut effective charging 40-60%. Site survey before installation prevents disappointing runtime in winter.
- Cable entry and connector sealing determine whether IP68 rating persists in field. Use rated cable glands and stainless connectors; standard brass terminations corrode in salt air within weeks. Budget time and materials for proper sealing — cost is negligible against fixture replacement.
- Custom/special-order lead time means procurement occurs months before installation. Confirm exact specifications, mounting orientation, and connector pinout early; mid-project design changes trigger restarts and project delay. Datasheet and channel-partner specification sheet are mandatory reading before PO commitment.
- Temperature operating range spans harsh outdoor conditions. Confirm site ambient extremes (winter low, summer high, seasonal humidity) against datasheet limits; arctic and desert deployments may require thermal de-rating or supplementary protection.
The SLNF0209 is the right choice for perimeter security operators who need light durability and independence without full solar-only fragility or dedicated AC infrastructure cost. Harsh coastal, dock, and industrial sites with existing PoE backbone are ideal candidates. For low-corrosion environments or AC-accessible perimeters, standard IP65 fixtures are adequate and lower cost. Refer to the Code Blue catalog for complementary solar-PoE safety and surveillance products.
