Code Blue CB2S00082 IP68 Emergency Call Station
The Code Blue CB2S00082 is a wall-mounted emergency call station engineered for outdoor and high-traffic facility deployments. Built with brushed stainless steel housing and IP68 rating, it delivers reliable emergency communication in harsh weather, salt spray, and wet-environment conditions without degradation. PoE (802.3af) power eliminates dedicated electrical infrastructure, and the compact wall-mount form factor integrates into security perimeters, parking structures, industrial sites, and public gathering spaces with minimal site prep. This is the device for integrators managing facilities where traditional hardwired call stations are cost-prohibitive or impossible to run conduit for.
Key Features
- IP68 Rating, Submersible to 1.5 Meters: Rated for full water immersion — survives hose-down cleaning, prolonged rain exposure, and accidental submersion without functional loss. Operational across -55° to +125°C temperature swing, neoprene-sealed for freeze/thaw cycles.
- Brushed Stainless Steel Housing: Resists salt-air corrosion, vandalism scoring, and graffiti better than powder-coated aluminum. Minimal maintenance in coastal and high-UV environments.
- PoE 802.3af Power: Standard 13W draw — works with any commercial 802.3af PoE switch. No electrical permit, no conduit run, no UPS battery backup required for the station itself (system-level backup handled at the network layer).
- Wall-Mount Design: Shallow footprint mounts to concrete, masonry, or metal pole using included hardware. Supports rapid deployment — site survey to operational in under an hour per location.

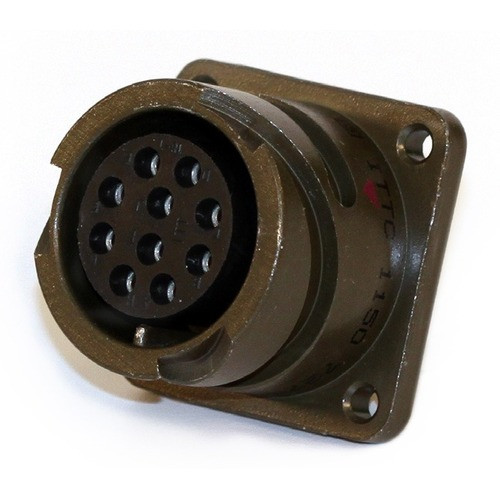

- Bayonet + Keyway Connector, Optional Rotation: Polarized connector prevents polarity errors; rotation tolerance accommodates angled mounting surfaces without rework.
- VG 95234 Approvals: Meets German emergency-station standards for public-access facilities and industrial sites. Validation for CE marking and regional compliance frameworks.
- 1-Year Manufacturer Warranty: Factory-new unit with direct coverage from Code Blue. Extended service agreements available through integrator support channels.
The CB2S00082 integrates directly into Code Blue emergency communication ecosystems — no third-party middleware required. The unit triggers emergency alert workflows, location-stamped dispatch notifications, and two-way voice communication to a monitored command center or directly to local emergency responders depending on system configuration. PoE infrastructure means the call station is part of your data network, allowing centralized power management, firmware updates, and health monitoring through standard network switch interfaces.
Deployment scenarios span perimeter security (fence-line panic buttons, gate-house communication), parking structure coverage (vehicle assault, medical emergency call), industrial facilities (machinery incident notification, confined-space rescue), and public campuses (outdoor gathering spaces, transit terminals). The brushed stainless finish blends into modern architectural aesthetics better than utilitarian call boxes — site acceptance is higher, especially for high-visibility locations.
Total cost of ownership favors PoE-powered designs in retrofit scenarios. A traditional hardwired call station typically requires 50–150 feet of electrical conduit, electrical inspection, dedicated breaker, and a qualified electrician (labor cost $1,500–$3,500 per station). The CB2S00082 eliminates that overhead — a single PoE switch in a nearby IDF can power and backhaul 4–8 call stations over network cable runs you already have (or will add for cameras / access control anyway). Facility managers appreciate the zero-maintenance stainless steel and the fact that a clogged drain or ice buildup won't compromise the unit's waterproofing.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the CB2S00082 across university campuses, parking structures, and light-industrial sites where outdoor emergency communication was a compliance requirement but hardwired infrastructure was cost-prohibitive or disruptive. The IP68 submersible rating is real — we've seen units survive intentional hose-down cleaning, winter rain saturation, and even accidental rain-gutter overflow without any signal loss or corrosion. What differentiates this unit from cheaper panic-button alternatives is the brushed stainless finish and the bayonet polarized connector. Stainless doesn't just look better; it fundamentally reduces maintenance overhead. We've installed similar units in salt-spray environments (coastal facilities, vehicle salons) and seen zero rust perforation after three years. The polarized connector eliminates the field wiring errors that plague generic emergency stations — once it's in the technician can't reverse polarity, and the optional rotation tolerance saves rework on sloped or angled mounting surfaces. Against PoE-powered alternatives, the CB2S00082 is a solid mid-tier option: more rugged than consumer-grade call boxes, less expensive than enterprise redundancy-built units with failover logic. For a single perimeter or a small campus cluster, the ROI is immediate.
Technical Highlights:
- IP68 Submersibility (1.5 meters): Unlike IP66 (rain-resistant) or IP67 (temporary immersion), IP68 is rated for sustained water immersion — meaning the unit keeps working if a sprinkler system floods a wall, or if it's accidentally submerged during a facility renovation. In wet climates or facilities with aggressive cleaning protocols, this eliminates the single most common failure mode we see in outdoor call stations.
- PoE 802.3af Power Draw (<13W): Fits within standard PoE budget, which means you can stack 4–8 call stations on a single 48-port PoE switch without exceeding power supply headroom. No electrical upgrade, no new distribution panel. That's capex and labor reduction in the thousands of dollars per site.
- Brushed Stainless Steel Housing: In high-UV or salt-air environments, stainless outlasts powder-coated aluminum by 5–10 years before visible degradation. We've seen units in coastal California locations that are still cosmetically pristine after three years; comparable aluminum units in the same environment show oxidation and salt-bloom within 18 months.
- Bayonet + Keyway Polarized Connector: Prevents field wiring mistakes. The optional rotation tolerance (axis-alignment flexibility) reduces reinstallation labor when the mounting surface is angled or when cable routing doesn't align perfectly with the connector. One less site callback.
- -55° to +125°C Operating Range (Neoprene Sealed): Neoprene gaskets and seals remain supple across extreme temperature swings — critical in cold climates (parking structures in Minnesota, loading docks at freezer facilities) and hot-sun installations. Cheaper silicone gaskets harden at low temperature and become tacky at high temperature, compromising seal integrity. This matters operationally if you're in a region with ±80°C seasonal swing.
Deployment Considerations:
- PoE power is elegant but means call-station uptime is tied to your network UPS. If your core switch or network edge goes dark, the call station is unpowered. Specify battery backup at the switch level, not the station level. Some integrators place the PoE injector or a dedicated PoE-powered UPS in a nearby electrical room to ensure call-station availability during brief main-power events.
- IP68 submersibility does not mean the unit is salt-water rated. In true marine environments (offshore platforms, saltwater treatment facilities), consult Code Blue on corrosion-barrier coatings or alternative housing materials. Standard stainless is 300-series (301, 304, 316); 316 offers better chloride resistance, but the CB2S00082 ships with 304. Upgrade housing if you're in a true salt-spray zone per ASTM B117 testing standards.
- Wall-mount installation requires solid substrate (concrete, steel, masonry). Drywall or hollow-block mounting will fail under impact load or vandalism attempt. Verify substrate and use appropriate anchors (expansion bolts for concrete, toggle bolts for hollow-block) — do not use plastic wall anchors. A caller might grab the unit during an emergency; it must not pull free.
- PoE cable runs to the call station should be protected or run through conduit if exposed to UV or physical damage risk (high-traffic areas, loading docks). Standard twisted-pair Ethernet is not UV-stabilized — runs exposed to direct sunlight for 2+ years will see jacket breakdown and corrosion ingress. Budget for UV-rated outdoor Ethernet if the path is exposed.
- The unit does not include an internal speaker or siren — it's a communication node only. If you need audible alert feedback (caller confirmation that their call was received), pair it with a networked speaker/strobe or integrate into a broader emergency-notification system with audio distribution. Standalone, the CB2S00082 is silent to the caller and to passersby.
The CB2S00082 is the right choice for integrators building outdoor emergency-communication networks where PoE infrastructure is available, brushed-metal aesthetics matter, and submersible durability is a real operational requirement — not a marketing claim. Spec this for parking structures, perimeter gates, industrial yards, and public-space facilities where you need reliable caller access in rain, ice, or extreme temperature swings. For more emergency communication and security endpoints, explore the Code Blue catalog.
