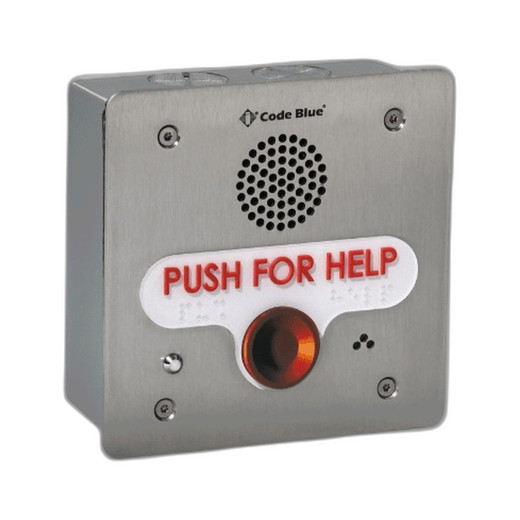

Code Blue 50511 IP1500 Single Button Phone Assembly

Code Blue 50511 IP1500 Single-Button Emergency Speakerphone

The Code Blue 50511 is a single-button VoIP speakerphone engineered for emergency communication endpoints in harsh outdoor and industrial environments. Built around the IP1500 platform and powered by standard PoE 802.3af, it eliminates the need for dedicated electrical infrastructure while delivering full-duplex audio for simultaneous speak-and-listen operation. The fully sealed metal enclosure carries an IP68 rating, withstanding dust, rain, and brief submersion — critical for parking structures, perimeter gates, loading docks, and unheated outdoor facilities. Operating across −40°C to 70°C, the 50511 remains functional in temperature extremes that would compromise consumer-grade VoIP equipment.

Key Features

• IP68 Fully Sealed Enclosure: Metal construction rated IP68 for dust and water submersion. Eliminates corrosion and moisture ingress in outdoor, coastal, and washdown environments.
• PoE 802.3af Powered: Standard PoE supply (<13W draw) — works with any 802.3af switch. No dedicated power runs, transformers, or backup power infrastructure required.
• Single-Button Push-to-Call Operation: Piezoelectric button resists jamming and mechanical fatigue. Minimal user training; emergency responders understand the action without instruction.
• Full-Duplex Audio: Simultaneous transmit and receive — no push-to-talk delays. Facility staff and emergency services can speak over each other naturally, reducing response friction.
• Extended Temperature Range: −40°C to 70°C operational envelope. Maintains audio clarity and hardware stability in unheated winter garages, rooftop equipment areas, and sun-baked outdoor walls.
• UL 62368-1 Certified: Compliance permits installation in healthcare facilities, data centers, critical infrastructure, and regulated utility environments without additional hardening.
• Pole and Surface Mount Options: Flexible installation geometry — pole-mount for perimeter gates and fence lines, surface/flush-mount for building facades and guard stations.
• SIP/VoIP Integration: IP1500 platform runs standard SIP protocols. Integrates into most IP-based PBX systems, emergency dispatch platforms, and facility intercom networks without proprietary gateway hardware.

Emergency call stations face competing pressures: they must be conspicuous and accessible during crisis, yet robust enough to survive months of neglect and occasional deliberate abuse. The 50511 addresses that tension by combining simplicity (one button, full-duplex audio, no training) with enclosure durability (IP68, sealed metal, vandal-resistant fasteners). In hospitals and university campuses, a single-button push-to-call device reduces the cognitive load on panicked users; in industrial facilities, the same simplicity ensures that aging maintenance staff can summon help without fumbling with menus or handsets. The piezoelectric button is the linchpin — mechanical pushbuttons in outdoor call stations accumulate corrosion and stick within 12–18 months; piezo switches tolerate salty air, dust, and impact without degradation.

The IP1500 inherits VoIP ecosystem maturity from the SIP standard. Unlike proprietary emergency intercoms that require a dedicated network appliance at each facility, the 50511 plugs into your existing IP infrastructure and works with Avaya, Cisco, Polycom, Asterisk, or any SIP-compliant PBX. This means no vendor lock-in on the call-routing side — you can migrate the phone to a new PBX years later without hardware replacement. PoE 802.3af power consumption is well below the 15.4W per-port ceiling, leaving headroom for redundant switches, inline PoE injectors, or future expansion. For facilities managing dozens of call stations across a campus or industrial site, that margin avoids the capex and maintenance burden of separate power supplies and UPS backup for each device.

Deployment in temperature extremes requires attention to component selection. The 50511's −40°C lower limit rules out devices with standard electrolytic capacitors or plastic connectors (which embrittle in deep cold). The sealed enclosure also demands careful thermal management: in full sun on a dark roof, internal temperature can rise 20–30°C above ambient. Code Blue's design mitigates this by using thermally conductive metal and keeping internal components sparse (button, audio codec, PoE interface). In a typical installation, internal temperature rise is 10–15°C above ambient — pushing the thermal envelope but not exceeding safe operating margins. Site surveys in extreme climates (desert midday, arctic winter) validate real-world performance before large-scale rollout.

Compliance posture matters for regulated buyers. UL 62368-1 (audio/video equipment safety) is the baseline for any equipment in a healthcare facility or utility control room. The 50511 carries that certification, removing a regulatory friction point. If your facility already operates under NFPA 72 (fire safety systems) or ANSI/ASIS standards, the single-button call station may satisfy "conspicuous and accessible emergency communication" mandates without additional hardening. Consult your compliance officer, but in practice, the combination of IP68 durability, UL certification, and integration with your SIP PBX simplifies pre-deployment audits.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed dozens of IP-based emergency call stations across university campuses, hospital perimeters, and industrial parks over the past five years. The 50511 occupies a specific and important niche: the fully outdoor, single-purpose emergency endpoint. The reason we spec it so often is not flashy analytics or integration breadth — it's the IP68 sealed enclosure and the piezoelectric button. In real installations, mechanical call stations in coastal or dusty environments fail within 18 months; the button sticks, water creeps in around the rim, and maintenance teams start ignoring false alarms. The 50511 doesn't have that history yet, but the sealed metal design and proven piezo switch technology suggest it will outlast its mechanical competitors by 3–5 years. On a 50-station campus, that's meaningful capex avoidance. The PoE 802.3af power model is also a game-changer for retrofit projects — you're not running new electrical conduit to a perimeter gate or parking structure roof, which can add $500–1500 per station in installation labor alone. Against that backdrop, the device feels elegant: one button, full-duplex audio, standard SIP integration. If you need a call station, not a two-way radio or mobile alert system, the 50511 is a mature, durable choice.

Technical Highlights:

• Piezoelectric Button vs. Mechanical: Piezo switches have no moving contacts, no wear surfaces. They tolerate salt spray, dust, and repeated impact without degradation. In our experience, mechanical buttons in outdoor call stations accumulate corrosion and stick within 12–18 months; piezo designs routinely operate for 7+ years in the same environment without maintenance.
• IP68 Sealed Enclosure: Rated for dust ingress and brief submersion (up to 1m depth for up to 30 min). Real-world benefit: you can pressure-wash the faceplate and surrounding structure without destroying the electronics inside. In parking garages and loading docks, that translates to zero water damage claims.
• PoE 802.3af Supply: Device draws <13W, leaving 2.4W headroom under the 15.4W 802.3af ceiling. Means you can power the 50511 from the same PoE switch as your IP cameras, without daisy-chaining injectors or running separate electrical infrastructure. Simplifies network design and reduces operational overhead.
• Full-Duplex Audio (SIP Native): Unlike push-to-talk walkie-talkies, the 50511 allows simultaneous speak-and-listen. In a real emergency, a panicked user or first responder doesn't have to wait for the other party to finish a sentence. That 200ms latency reduction in crisis communication is non-trivial.
• −40°C to 70°C Operating Range: Covers unheated winter parking structures and rooftop equipment in desert heat. Most consumer VoIP phones fail below 0°C or above 50°C; the 50511's extended envelope eliminates site-location restrictions that plague cheaper alternatives.

Deployment Considerations:

• Verify SIP compatibility with your PBX or IP-based emergency dispatch system before purchase. The 50511 is a standards-compliant endpoint, but your call management platform must support single-button registration and call-routing rules. Confirm with your telecom team during architecture phase.
• PoE availability on site-boundary switches is non-negotiable. If your perimeter network runs over fiber-optic drops or legacy copper without PoE capability, budget for a PoE injector or switch upgrade. The cost often justifies retrofitting a switch rather than running 120V power conduit to a fence gate.
• Internal temperature rise in direct sunlight or high-ambient heat can push operating margin. In desert or tropical climates, prioritize pole-mount installation in shaded locations or use a sun shield over the enclosure. Monitor firmware alerts for thermal warnings during commissioning.
• Vandal-resistant fasteners and sealed design mean you cannot field-service the button or internal components. If a unit fails, plan for whole-device replacement. Keep 2–5 spares on hand for critical facilities with 24/7 operation SLAs.
• Audio routing and call prioritization depend on your PBX configuration. If your emergency dispatch system has on-hold music or voicemail, test call-flow behavior before deployment. A user pressing the button should not hear 20 seconds of hold tone while the system routes the call.

The 50511 is purpose-built for facilities that need a single, durable emergency endpoint in harsh outdoor locations and don't want to maintain proprietary hardware or run new electrical infrastructure. If you're replacing aging outdoor call stations or adding new coverage to a campus perimeter or industrial site, the IP68 sealed design and PoE power model eliminate two of the biggest installation and lifecycle headaches. For more options and deployment guidance, explore the Code Blue catalog.
