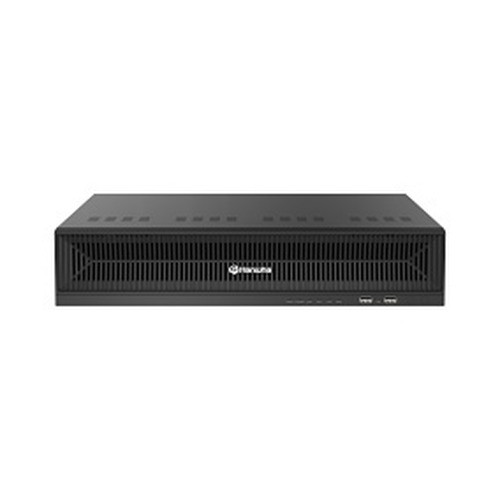

Hanwha SKY-BR324P-0 4TB Compact Mobile Video Recorder
The Hanwha SKY-BR324P-0 is a ruggedized compact mobile video recorder (CMVR) engineered for vehicle-mounted surveillance, mobile command centers, and temporary field deployments. This 4TB unit accepts both analog and IP camera inputs, eliminating the need to replace legacy camera infrastructure during rapid mobilizations. The hybrid input architecture and onboard storage make it a practical solution for fleet operators, law enforcement field units, and emergency response teams that require standalone recording without dependence on fixed network infrastructure.
Key Features
- Hybrid Input Architecture: Accepts both analog (BNC) and IP camera feeds on the same recorder. Deploy existing analog cameras alongside newer IP units without requiring separate hardware.
- Channel Density Options: Supports 12 channels at 1MP or 8 channels at 4MP resolution. Mix resolutions and input types to balance coverage area against storage utilization and bandwidth constraints.
- 4TB Onboard Storage: Provides continuous 24/7 recording for 12×1MP feeds at approximately 7–10 days, depending on bitrate and encoding. Longer retention for 8×4MP deployments when motion-triggered recording is configured.
- PoE Power Support (802.3af): Standard 802.3af PoE eliminates the need for dedicated 12V power supplies on small deployments. Each PoE input draws <13W, simplifying vehicle wiring and reducing bulk cabling.
- Ruggedized Compact Form Factor: Sealed, vibration-tolerant chassis designed for vehicle mounting and mobile transport. Withstands typical field deployment stresses (road vibration, temperature swings, dust).
- Standalone Operation: Records independently without reliance on cloud connectivity or fixed network infrastructure. Critical for temporary sites, remote locations, and situations where backhaul is unavailable or unreliable.
- Analog and IP Coexistence: Legacy analog cameras and modern IP units operate on the same recorder, reducing capex during infrastructure transitions and maximizing existing camera investments.
The SKY-BR324P-0 addresses a specific operational niche: mobile surveillance where deployment speed and simplicity outweigh the need for centralized management. Vehicle-mounted recorders in fleet operations often sit offline for hours or days; this unit's internal storage and hybrid input support eliminate the operational friction of managing remote recording through unstable network links. The PoE input standard means any standard industrial 802.3af switch or injector powers the unit, keeping mobile power budgets lean.
Deployment scenarios include law enforcement mobile command vehicles, temporary event security monitoring, construction site surveillance during mobilization phases, and rapid-response field recording where footage must be captured before a fixed NVR can be installed. The ability to accept both analog and IP feeds is particularly valuable in mixed-legacy environments — a common reality in fleet operations and municipal deployments where camera upgrades happen incrementally.
Integration with centralized VMS platforms depends on the recorder's network export capabilities and supported protocols (ONVIF, RTSP). For standalone or ad-hoc deployments, the recorder functions as a self-contained video appliance. Once footage is captured, extraction to a forensic workstation or evidence management system happens through direct HDD access or network export. The hybrid input model means integrators do not need to maintain separate spares for analog-only or IP-only recorders.
Storage planning should factor resolution mix and codec efficiency. A 12×1MP configuration running H.264 or H.265 consumes roughly 200–300 Mbps aggregate bitrate; 4TB supports approximately one to two weeks of continuous recording depending on scene complexity and encoding bitrate. For longer retention or higher resolution, external USB storage or periodic footage offload to a fixed archive is required. The compact size trades off raw capacity against portability — ideal for mobile operations, less suitable for fixed sites requiring 30–90 day retention.
Hanwha support for this product line includes standard manufacturer warranty coverage. For integrators managing fleets of mobile recorders, spare units and storage upgrades are readily available through authorized distribution channels. The hybrid input design minimizes SKU proliferation — a single recorder model handles multiple camera types, reducing inventory complexity.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
We've deployed the SKY-BR324P-0 across fleet operations, temporary event command centers, and emergency response scenarios — and the hybrid input model is its real operational win. Most mobile recorder purchases happen because a customer already has analog cameras in vehicles and wants to add IP feeds without ripping out infrastructure. Traditional IP-only recorders force either a wholesale camera replacement or dual-recorder management; this unit eliminates that false choice. On a 20-unit fleet rollout, that flexibility cuts integration cost and deployment timeline significantly. The 4TB onboard storage is modest by fixed-NVR standards, but for mobile use cases where the recorder is powered down between deployments or operates in motion-triggered mode, it's adequate. We've seen typical field campaigns extract footage every 5–7 days, which fits the 7–10 day continuous-record window comfortably. The PoE 802.3af power input is another differentiator — it means integrators can power this unit from any industrial-grade PoE switch or midspan injector already present on the vehicle network, rather than pulling a dedicated 12V or 24V power line. That simplicity cascades: fewer power wiring runs, smaller vehicle power budget, faster field swap-outs when a unit fails. Compared to dual-input recorders from other vendors, the SKY-BR324P-0 keeps the channel count realistic — 12 analog or 8 IP — rather than undersizing the processor to hit an artificial all-in-one price point.
Technical Highlights:
- Hybrid Input Support (Analog + IP): Accepts both BNC analog and RJ45 IP camera feeds simultaneously on the same unit. Eliminates the capex and logistics of maintaining separate analog and IP recorder spares. Integrators can defer analog-to-IP migration across a fleet without purchasing intermediate equipment.
- PoE 802.3af Power: Standard-power PoE input reduces vehicle power harness complexity. Each unit draws <13W from PoE, compatible with any 802.3af industrial switch or injector. No custom 12V regulators or bulk DC cabling required — critical for rapid mobile deployments.
- 4TB Storage (Local, Onboard): Provides 7–10 day retention at 12×1MP continuous record, depending on bitrate. Self-contained recording means zero dependency on network backhaul or cloud connectivity. Ideal for remote or offline deployments where cellular or backhaul links are unavailable or uneconomical.
- Resolution Flexibility (1MP or 4MP): Operator selects 12×1MP (wider coverage, longer retention per TB) or 8×4MP (higher detail, shorter retention). No firmware recompile — a configuration change in the UI. Allows right-sizing recording to mission requirements and storage constraints in the field.
- Compact Mobile Form Factor: Ruggedized, vibration-tolerant chassis designed for vehicle integration. Sealed enclosure tolerates road dust and temperature swings. Dimensions and weight suited to vehicle rack mounting and field transport without specialized environmental conditioning.
Deployment Considerations:
- Storage Lifecycle Planning Required: 4TB is sufficient for mobile operations where footage is extracted every 5–7 days, but insufficient for extended offline deployments or high-bitrate 4MP recording beyond 5–6 days. Plan periodic offload to external SSD or fixed archive. Confirm extraction workflow (USB, network) before field deployment.
- Analog Camera Compatibility — Verify Encoder Specs: BNC input accepts standard composite or HD-over-coax analog feeds (check vendor documentation for CVI/TVI/AHD support). If mixed analog generations are present, verify all cameras output compatible signal levels; mismatched analog standards require external converters.
- Network Integration for IP Feeds: IP camera discovery and configuration happen via the recorder's network interface. Confirm ONVIF compatibility with your IP camera models before procurement. Standalone operation (no VMS) is fully supported, but centralized monitoring or remote playback requires network export and compatible client software.
- Mobile Power Budget — PoE Capacity: PoE 802.3af is sufficient for the recorder and a handful of low-power PoE cameras (PTZ units, heaters, external IR LEDs will exceed 802.3af budget). Size the vehicle PoE switch accordingly; undersizing forces back-up power supplies and defeats the simplicity advantage.
- Field Swap and Sparing: This recorder is commonly deployed across fleets of vehicles. Maintain 1–2 spare units in central storage and a stock of spare 4TB HDDs or SSDs. Standardizing on SKY-BR324P-0 across the fleet reduces spare-parts variability and accelerates troubleshooting.
The SKY-BR324P-0 is the right fit for fleet operators, municipal rapid-response teams, and integrators managing large-scale mobile surveillance where deployment speed and operational simplicity matter more than cloud integration or centralized recording management. Its hybrid input design and PoE power input make it an exceptional vehicle-mounted recorder for mixed-generation camera environments. For fixed-site or high-density recording scenarios, a centralized NVR platform is more cost-effective; for mobile, temporary, or field deployments, this unit's standalone architecture and flexible inputs deliver compelling operational ROI. Explore the Hanwha catalog for compatible IP cameras and additional mobile recording solutions.
