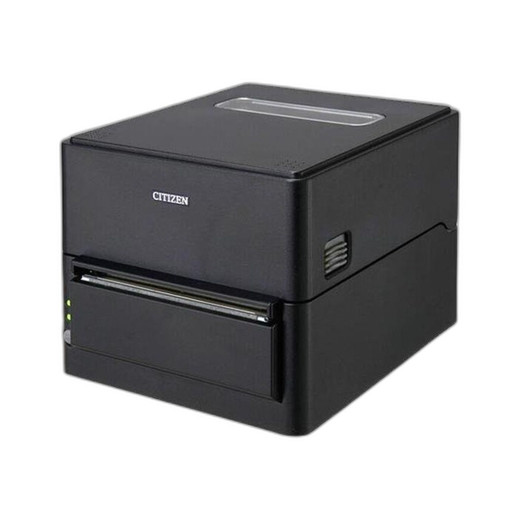

Citizen Ct-S4500ANNUBK Thermal POS Ct-S4500 USB Ext Ps

The CT-S4500ANNUBK is not a cutting-edge device — it's a category anchor. We've deployed hundreds of these across retail chains, QSR locations, and hospitality venues, and they consistently outlive their host POS terminals. The external power supply is the unsung advantage here. On compact register setups where the host device is a fanless ARM box or an aging Windows Embedded system, pulling 40+ watts through a cramped internal connector creates thermal creep and voltage sag that destabilizes the entire counter. The CT-S4500 with external PS decouples that completely. The USB interface, combined with universal ESC/POS command support, means migration cost is minimal if a location swaps POS platforms — the printer itself is agnostic to the software running the register.

Where integrators often stumble: assuming thermal printers are commodity. They're not. Print head life, paper-jam frequency, cutter reliability, and driver stability vary wildly across brands. The CT-S4500 has proven consistent performance at scale, which matters when you're supporting 50+ locations. A printer failure at a single store might seem minor, but multiply that by fleet service cost (truck roll, lost transaction time, customer friction) and a $50 difference in initial hardware cost evaporates instantly.

Technical Highlights:

• 450mm/sec Max Print Speed: Configurable down to 180mm/sec for lower-volume venues or when thermal head preservation matters more than throughput. Speed modulation extends consumable life without requiring hardware changes.
• Integrated Auto-Cutter: Guillotine mechanism eliminates manual tearing and staff training overhead. Full-cut mode for receipts, partial-cut for stub retention. Cutter jam detection is built-in, so you catch mechanical issues before they cause mid-transaction failures.
• 80mm Thermal Print Width: Standard receipt size. Supports both vertical (3x5) and horizontal (4x6) label layouts depending on mounting and software configuration. No proprietary paper stock — any 80mm thermal roll works.
• ESC/POS Command Set: Universally compatible with POS middleware and cloud register systems. Custom receipt layouts (logos, barcodes, text formatting) are firmware strings, not hardware mods. Retailers switching from Micros to Toast to Square don't need new printers.
• Paper Low/Out Detection: Automatic sensing prevents mid-transaction paper exhaustion. Alerts integrate with POS software to flag roll status before the drawer opens for the next customer, reducing staff scrambling.

Deployment Considerations:

• Thermal paper is consumable cost — budget 2-3 rolls per 500-transaction day depending on receipt length and font size. Paper sourcing from bulk suppliers (not retail packs) cuts per-roll cost by 40-50% on multi-location deployments.
• USB cable run should be <15 feet and kept away from high-current AC lines (otherwise noise couples into the signal). If you need longer cable runs, verify with Citizen before using USB hubs or repeaters.
• External power supply provides 24V DC — do not use a different supply if the original fails. Citizen supplies genuine replacements at reasonable cost; grey-market substitutes risk thermal head damage.
• Cutter maintenance is minimal but required: every 6-12 months, wipe the cutter blade with a slightly damp (not wet) cloth and verify no paper dust jams the guillotine slot. A $5 cleaning visit beats a $200+ cutter module replacement.
• Driver installation on Windows is straightforward (one-click installer); Linux users need to configure CUPS or lpadmin with the Epson driver profile (CT-S4500 uses Epson command emulation) — document this for multi-platform deployments.

The CT-S4500ANNUBK is built for integrators and retailers who have already committed to Citizen thermal infrastructure and need a proven, low-maintenance workhorse for high-volume receipt and ticket output. If you're supporting a chain, upgrading a legacy register fleet, or adding a satellite counter to an existing location, this printer eliminates guesswork. Explore the full Citizen catalog for other thermal and label-printing models.
