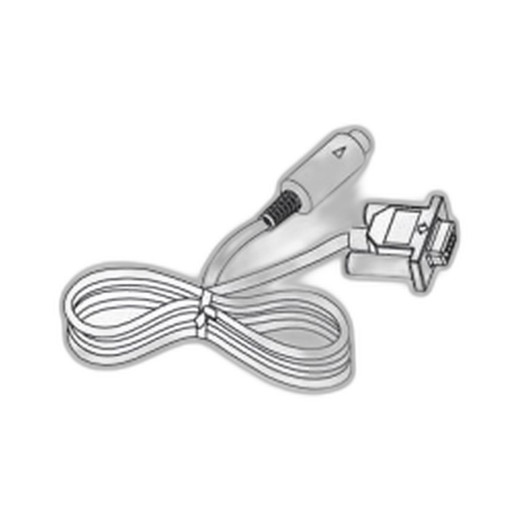

Citizen CA20-S01 Serial 8p Minidin Cable

Overview

The Citizen CA20-S01 is a serial communication cable with an 8-pin mini DIN connector, designed to connect host systems to Citizen CMP-20 and CMP-30 thermal printers. This cable carries RS-232 serial data and control signals required for printer operation, print job submission, and status monitoring. Deploy this cable when integrating a Citizen thermal printer into a POS, warehouse, or surveillance label-printing workflow that communicates via legacy serial interfaces.

Compatibility

The CA20-S01 connects specifically to Citizen CMP-20 and CMP-30 series thermal printers. Verify your printer model supports 8-pin mini DIN serial input before purchase — older or alternate Citizen models may use different connector types (e.g., DB-9, RJ-45). Confirm pin configuration with your printer documentation to avoid miswiring.

Installation Notes

Serial cables must maintain signal integrity over their run length. Keep the CA20-S01 away from high-voltage power lines and RF emitters to prevent data corruption or print errors. Maximum recommended cable length depends on your serial interface card and baud rate — standard RS-232 is reliable to approximately 50 feet at 9600 baud, shorter at higher speeds. Secure the cable to avoid tension on the mini DIN connector, which can loosen over time with repeated insertion cycles.
