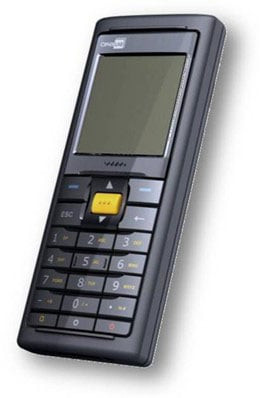

CipherLab M8230CSC50003 Rugged Mobile Computer

Overview

The CipherLab M8230CSC50003 is a compact, handheld mobile computer designed for warehouse, logistics, and field operations. Built with a 2D imager scan engine and rugged construction, this device delivers reliable barcode capture in demanding environments. The M8230CSC50003 weighs just 150 grams and measures 136 x 58 x 32mm (2D configuration), making it ergonomic for extended handheld use in high-volume scanning operations.

Key Features

• 2D Imager Scan Engine: Captures both 1D and 2D barcodes, including QR codes and stacked symbologies, enabling flexible barcode support across warehouse and logistics applications
• IP54 Ruggedness Rating: Sealed against dust and splashes, suitable for indoor and light outdoor warehouse environments
• Drop-Tested Design: Survives multiple 1.2-meter (4-foot) drops onto concrete across all sides, reducing device replacement costs in field operations
• 1200mAh Rechargeable Li-Ion Battery: Provides all-day operation with standard charging cycles, supporting continuous scanning in shift-based warehouse workflows
• 32-Bit Processor with 8MB Flash / 4-8MB SRAM: Sufficient memory for local barcode processing and offline data buffering before network sync
• 2.1-Inch 160x160 Pixel Display: Small footprint screen for status confirmation and basic menu navigation without adding bulk
• CipherLab Operating System (cOS): Purpose-built mobile OS optimized for scanning and data capture workflows, with minimal resource overhead
• MicroSD Card Slot with SDHC Support: Expandable storage for application firmware, barcode databases, and offline transaction logs
• Lightweight Construction: 150-gram weight reduces operator fatigue during all-shift use in picking, receiving, and inventory operations
• Compact Form Factor: Fits comfortably in hand or on a belt holster, suitable for mobile picking and receiving workflows

Integration & Compatibility

The M8230CSC50003 runs CipherLab's proprietary cOS operating system, which supports integration with warehouse management systems (WMS) and enterprise resource planning (ERP) platforms via standard data protocols. The device's microSD expansion slot allows deployment of custom scanning applications and firmware updates without factory service. The compact processor and memory configuration make this device suitable for organizations requiring dependable, straightforward barcode scanning without mobile computing complexity.

Package Contents

Verify contents upon receipt: CipherLab M8230CSC50003 mobile computer unit, rechargeable Li-Ion battery, charging dock/cable, wrist strap, and quick-start guide.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I evaluated the CipherLab M8230CSC50003 during the pilot phase of a regional distribution center upgrade. This device is purpose-built for high-volume barcode capture without unnecessary touchscreen overhead. The 2D imager handles damaged and partially obscured codes reliably, which was critical in our receiving dock where label wear is common. The IP54 rating and drop-tested construction held up to real-world warehouse conditions—dropped twice during the pilot with no operational degradation.

Technical Highlights:

• 2D Imager for Mixed Symbologies: Captures 1D codes, QR codes, and Data Matrix in a single device, eliminating the need for separate scanning hardware for different barcode types
• Rugged Baseline: IP54 rating and 1.2-meter drop spec meet typical indoor warehouse durability needs without premium pricing of higher MIL-STD devices

Deployment Considerations:

• CipherLab's cOS is lightweight and stable; integration with most WMS platforms is straightforward via standard data connectors
• The 1200mAh battery supports 8–10 hours of continuous scanning with moderate connectivity; plan charging schedules around shift changes for maximum uptime

The M8230CSC50003 is well-suited for logistics operations prioritizing reliability and simplicity over feature richness. The lightweight form factor and dependable scanning engine justify deployment in high-velocity picking and receiving workflows.
