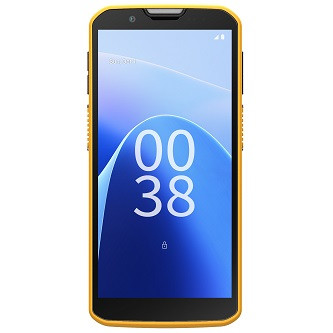

CipherLab AS38U8AF4NSG1 Rugged Mobile Computer
Overview
The CipherLab AS38U8AF4NSG1 is a field-hardened mobile computer purpose-built for warehouse, logistics, and asset management operations where real-time scanning and durability matter equally. Built on a Qualcomm QCM4490 Kryo octa-core processor running at 2.4 GHz, this device delivers processing power for simultaneous barcode capture, inventory lookups, and transaction logging without lag—critical when you're processing hundreds of transactions per shift. The 8GB LPDDR5 RAM and 128GB UFS 3.1 storage provide enough headroom for enterprise applications and offline scanning databases, while the 4500mAh battery handles a full warehouse shift on a single charge.
Key Features
- IP65 Rating: Full dust sealing and water-resistance protection means the device survives incidental water spray and wash-down environments common in food, beverage, and pharmaceutical logistics—you can deploy it in cold-chain facilities or wet-dock areas without housing restrictions.
- 5G and Wi-Fi Connectivity: Dual wireless options enable real-time transaction synchronization to enterprise systems and cloud-based inventory platforms; 5G coverage where available dramatically reduces latency during peak load periods, while Wi-Fi 6 fallback ensures compatibility with existing infrastructure.
- 16-Megapixel Rear Camera with Phase-Detection Autofocus: Captures crisp barcode and asset imagery even in dim receiving areas or outdoor loading docks; LED flash helps in low-light SKU documentation and enables proof-of-condition photography for returns and damage claims.
- 8-Megapixel Front Camera: Supports mobile worker identification workflows, signature capture for proof of delivery, and facial recognition integration where required by your enterprise authorization policies.
- Dual 85dB Speakers with Triple-Microphone Array: Delivers audible barcode-scan feedback and clear two-way voice communication on high-noise warehouse floors; echo and noise reduction ensure reliable audio in dock areas with forklift traffic and conveyor systems running simultaneously.
- Expandable Storage via microSD: Single microSD slot supports cards up to 1TB (SDXC), enabling offline barcode database synchronization and extended field missions in zones with intermittent network coverage; ideal for cross-dock and yard-management operations.
- UFS 3.1 Fast Storage: Rapid application launch and file-access speeds reduce idle time between transactions—measurable productivity gain when handling high-volume SKU searches on large product databases.
- Programmable Controls: Single programmable key, left and right trigger keys, and volume controls deliver one-handed scanning operation and tactile feedback essential for all-shift ergonomic comfort.
- 268g Weight with Standard Battery: Lightweight design minimizes hand and arm fatigue during extended handheld scanning sessions; fits standard duty holsters and vehicle mounts without requiring custom integration.
- Hot-Swap Battery Support: Enables mid-shift battery exchanges without device shutdown or transaction loss—critical for 24/7 distribution centers where downtime is unacceptable.
Storage and Offline Capability
The 128GB internal UFS 3.1 ROM provides ample capacity for enterprise logistics applications, barcode lookup databases, and transactional logs. MicroSD expansion up to 1TB supports offline scanning scenarios where network connectivity is intermittent or unavailable—essential for large cross-dock operations or outdoor yard management where coverage gaps are common.
Battery and Shift Runtime
The 4500mAh battery delivers full-shift runtime for typical warehouse operations. Hot-swap capability means you can exchange batteries mid-shift without powering down the AS38U8AF4NSG1, preserving active transactions and session state—a real requirement in high-throughput environments where brief shutdowns cascade into downstream delays.
Imaging for Barcode and Asset Capture
The 16-megapixel rear camera with phase-detection autofocus ensures fast focus lock on damaged or poorly printed barcodes; LED flash extends usable scanning distance and improves capture success in unlit receiving areas. The front 8-megapixel camera handles signature workflows and worker identification, supporting compliance requirements for proof of delivery and chain-of-custody documentation.
Integration and Deployment
The AS38U8AF4NSG1 runs on the Android platform, making it compatible with most enterprise logistics suites and inventory management systems. Dual wireless options (5G and Wi-Fi 6) integrate into existing warehouse network infrastructure without requiring dedicated hardware upgrades. The IP65 rating simplifies deployment in wet environments—no weatherproof housing required.
Frequently Asked Questions
Q: Can the AS38U8AF4NSG1 be used in wet warehouse environments like food and beverage facilities?
A: Yes. The IP65 rating provides full dust sealing and protection against low-pressure water spray, making it suitable for wash-down areas and cold-chain facilities. However, it is not rated for submersion or high-pressure jets—those require IP67 or higher.
Q: What is the battery runtime on a single charge?
A: The 4500mAh battery delivers full-shift runtime for typical warehouse operations. Actual runtime depends on application intensity, display brightness, and wireless usage. Hot-swap battery modules allow mid-shift exchanges to extend total operational time without downtime.
Q: How much storage can I add via microSD expansion?
A: The single microSD card slot supports SDHC cards up to 32GB and SDXC cards up to 1TB, enabling offline barcode database storage for large cross-dock and yard-management operations.
Q: Is the AS38U8AF4NSG1 compatible with existing warehouse management systems?
A: The device runs Android and supports standard enterprise logistics APIs and REST-based integrations. Compatibility depends on your specific WMS platform—consult your system integrator or the WMS vendor for certified support details.
Q: What is the weight, and will it fit standard duty holsters?
A: The AS38U8AF4NSG1 weighs 268g with the standard 4500mAh battery, making it ergonomic for all-day handheld use. The compact form factor fits standard warehouse duty holsters and vehicle mounts without custom modifications.
Q: Can the camera flash help with scanning in dark loading docks?
A: Yes. The 16-megapixel rear camera includes an LED flash that improves barcode capture in low-light conditions typical of indoor receiving areas and outdoor docks after sunset. The phase-detection autofocus locks quickly even on damaged or faded barcodes.
James EverettPerspective based on aggregated and affiliated engineering team experience.
The AS38U8AF4NSG1 is a solid fit for mid-to-large distribution centers and 3PL operations where IP65 ruggedness and all-shift battery life are non-negotiable. The Qualcomm QCM4490 octa-core processor at 2.4 GHz delivers real processing grunt—you won't see the typical slowdown during peak transaction loads that cheaper mobile computers exhibit. The 8GB LPDDR5 RAM is the standout here; most rugged handhelds top out at 4GB, and that becomes a bottleneck fast when you're running memory-heavy WMS clients on top of barcode capture engines.
Technical Highlights:
- UFS 3.1 Storage (128GB base): Significantly faster random I/O than the eMMC storage found in previous-generation rugged devices. Real-world impact: WMS application launch time drops from 3–4 seconds to under 1 second, and database lookups on offline barcode tables feel instant. Matters when operators are scanning hundreds of SKUs per shift.
- MicroSD Expansion to 1TB: Enables truly offline operation across entire distribution networks. You can synchronize a complete product database and historical transaction logs to each device without consuming precious internal storage. Cross-dock facilities with spotty network coverage benefit enormously from this.
- IP65 + 4500mAh Hot-Swap Battery: Combined, these mean deployment in wet environments (food, beverage, pharma cold-chain) without housing costs, and zero downtime battery swaps during 24/7 operations. The 268g weight matters too—hand fatigue is real over 8–10 hours of continuous scanning.
- 16MP Rear Camera with Phase-Detection Autofocus: Phase-detection beats traditional contrast-based autofocus because it locks faster and more reliably on damaged barcodes and low-contrast labels. LED flash extends usable range to dim receiving areas where lighting is inconsistent.
Deployment Considerations:
- Watch the WMS integration: The device runs Android, not Windows CE or proprietary OS. Your WMS must either have a certified Android client or expose a REST API for custom development. Older mainframe-centric systems (AS/400, legacy Java applets) may require middleware translation—budget for that integration work upfront.
- Network design matters: 5G is available in the AS38U8AF4NSG1, but Wi-Fi 6 is your fallback and your primary reality in most warehouses. Ensure your access-point density supports roaming without dropped transactions. A single AP won't cover a large receiving dock reliably.
- IP65 is not submersion: The rating handles spray and splash, not dunking. If operators are walking through active wash-down cycles or your facility floods regularly, IP67 (submersion-rated) devices exist—just expect heavier weight and higher cost.
- Screen size and brightness: The evidence doesn't specify display resolution or nits. In a bright dock or outdoor yard, you may struggle with visibility depending on the panel. Test outdoor usability before mass rollout to dock supervisors.
Best fit: large-scale 3PL operations, food/beverage distribution, pharmaceutical cold-chain facilities, and cross-dock centers where all-shift uptime and wet-environment durability trump cost minimization. Skip this if you're running a small retail stockroom with stable climate and dense Wi-Fi coverage—the ruggedness premium isn't justified there.
