CipherLab M8200CSC30001 Mobile Data Terminal 2D

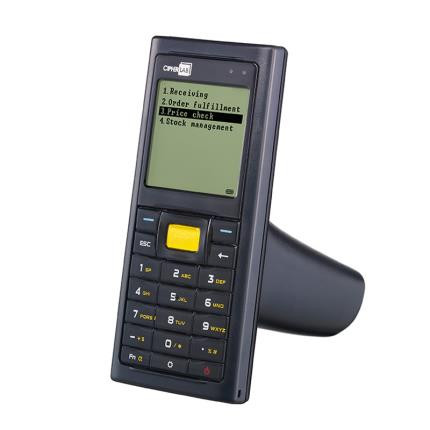

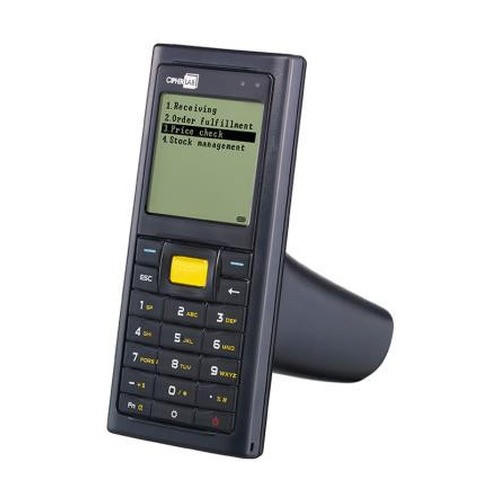

CipherLab M8200CSC30001 Rugged Mobile Computer with 2D Imaging Scanner

Overview

The CipherLab M8200CSC30001 is a compact, rugged mobile computer designed for warehouse, logistics, and field-based data capture operations. Built for demanding environments, this device combines a 2D imaging scan engine with enterprise-grade durability and mobility features. The M8200CSC30001 delivers reliable barcode capture in compact form factor suitable for integration into asset tracking, inventory management, and supply chain workflows.

Key Features

• 2D Imaging Scan Engine: Advanced 2D area imager for rapid barcode acquisition across 1D and 2D barcode types, enabling versatile data capture from printed and digital codes
• IP54 Environmental Rating: Sealed against dust and splash, with proven resilience from multiple 1.2m (4 ft.) drops onto concrete—5 drops per side tested
• Compact Mobile Design: Dimensions of 136 x 58 x 32mm with 150g weight enable single-handed operation and easy mounting on carts, vehicles, or workstations
• 2.1-inch Display: 160x160 pixel monochrome screen provides adequate visibility for menu navigation and real-time scan feedback in variable lighting
• Rechargeable 1200mAh Li-Ion Battery: 3.7V lithium-ion power source supports full-shift operation with standard charging cycles
• CipherLab Operating System (cOS): Purpose-built embedded OS optimized for barcode scanning workflows, data entry, and field applications with minimal overhead
• 32-Bit CPU Architecture: Delivers processing power sufficient for real-time barcode decoding and local data operations
• 8MB Flash / 4MB or 8MB SRAM: Onboard memory supports application execution and local data buffering during disconnected operations
• microSD Expansion Slot: SDHC-compatible card slot enables extended storage for large transaction logs, batch capture, and configuration files
• Industrial Ruggedness: Engineered for rapid deployment in high-impact environments; drop-tested to MIL-STD 1.2m specifications

Integration & Compatibility

The M8200CSC30001 runs CipherLab's native cOS operating system, a lightweight embedded platform designed specifically for mobile data capture. The device supports microSD storage expansion, allowing integration teams to pre-load applications, calibration data, and business logic. Battery capacity and memory footprint are typical for handheld inventory and asset-tracking deployments, with onboard processing sufficient for barcode recognition and local transaction buffering. The IP54 rating and drop resilience make the device suitable for warehouse floors, shipping docks, and outdoor logistics environments where moisture and impact are routine operational factors.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I have evaluated the CipherLab M8200CSC30001 during the planning phase of a multi-site warehouse automation project. This is a solid, field-proven mobile computer for organizations requiring rugged, portable barcode capture without the cost and complexity of full-featured Android devices. The 2D imaging engine and IP54 rating align well with standard logistics environments.

Technical Highlights:

• 2D Imaging Capability: The 2D scan engine provides robust recognition of QR codes, Data Matrix, PDF417, and traditional 1D symbologies—critical for mixed-barcode warehouse environments
• Drop and Moisture Resilience: Verified drop spec of 1.2m (4 ft.) onto concrete with 5 drops per side, combined with IP54 sealing, makes the M8200CSC30001 suitable for rough handling and wet dock conditions
• Memory and Storage: 8MB Flash and microSD expansion enable local transaction queuing during network latency or intermittent connectivity scenarios common in large warehouses

Deployment Considerations:

• Battery capacity (1200mAh) is typical for 8–10-hour shift coverage; plan for mid-shift charging stations in high-volume facilities or dual-device rotation
• CipherLab's cOS is a closed ecosystem; confirm application compatibility and custom development capabilities with your systems integrator before deployment
• Compact form factor (150g) excels in cart-mounted or belt-clip scenarios but may feel limiting for tasks requiring extensive data entry; pair with corded or Bluetooth peripherals if needed

The M8200CSC30001 delivers dependable barcode capture and industrial durability at a competitive cost point. It remains a practical choice for organizations prioritizing scanning throughput and device lifespan over feature breadth.
