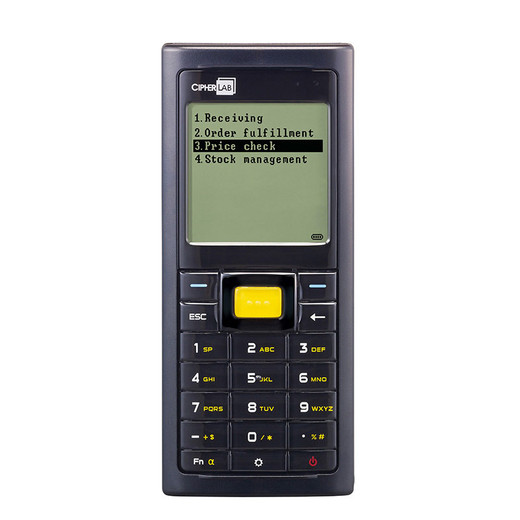

CipherLab M8001LSC20001 1D Mobile Computer

CipherLab M8001LSC20001 1D Barcode Mobile Computer

Overview

The CipherLab M8001LSC20001 is a compact, purpose-built 1D barcode mobile computer designed for warehouse, logistics, and field inventory operations. Built on the CipherLab operating system (cOS), this device delivers batch and serial communication capabilities through IrDA connectivity at 115.2 Kbps. The M8001LSC20001 combines rugged construction with practical scanning performance, making it suitable for organizations requiring reliable data capture in demanding environments without the complexity of touchscreen systems.

Key Features

• 1D Scan Engine: Dedicated 1D barcode capture optimized for linear codes commonly used in warehouse and logistics workflows
• 16-bit CPU Architecture: Efficient processor designed for barcode scanning and basic data handling tasks
• 100-Hour Battery Life: Extended runtime supports multi-shift operations and reduces mid-day charging requirements in high-volume picking and receiving environments
• IrDA Serial Connectivity (115.2 Kbps): Industry-standard infrared communication for batch data transfer and integration with host systems over serial protocols
• LCD Display (100 x 64): Monochrome LCD with LED backlight provides confirmation feedback and status indication in varied lighting conditions
• Rugged Drop Specification: Rated for multiple 1.2-meter (4-foot) drops onto concrete from all sides (5 drops per side), meeting durability requirements for warehouse floor environments
• CipherLab Operating System (cOS): Proprietary, lightweight OS optimized for scanning-centric applications and serial-based data interchange
• Batch Communication Mode: Supports offline data collection with deferred synchronization, reducing real-time network dependency

Integration & Compatibility

The M8001LSC20001 connects to host systems via IrDA serial interface at 115.2 Kbps, supporting batch upload workflows common in warehouse management systems (WMS) and inventory control platforms. Batch mode operation allows the device to function independently during picking or receiving cycles, then transfer collected data during scheduled sync windows. This architecture reduces infrastructure requirements for sites without continuous wireless coverage.

Deployment Context

This model is well-suited for organizations operating scanning-focused workflows where touchscreen functionality is not required and battery endurance is critical. The rugged drop specification and extended battery life make it appropriate for high-volume picking operations, cycle counting, and receiving functions where devices encounter frequent handling and occasional impact. The 16-bit processor and cOS foundation deliver straightforward barcode reading and data queuing without the overhead of full mobile computing platforms.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The CipherLab M8001LSC20001 represents a straightforward, durable approach to barcode data collection in warehouse environments where 1D scanning and batch communication meet operational requirements. During integration planning, this device's 100-hour battery capability and rugged drop rating (1.2m/4ft concrete) are significant advantages for facilities operating extended shift cycles or outdoor receiving areas without charging infrastructure.

Technical Highlights:

• 1D-Only Scanning: Eliminates 2D processing overhead; ideal for facilities using linear barcode labeling systems (Code 39, Code 128, UPC, EAN)
• IrDA Serial at 115.2 Kbps: Supports synchronous data upload to legacy WMS platforms and modern systems with serial gateway adapters
• 100-Hour Runtime: Reduces device rotation and charging dependency in high-volume picking operations spanning multiple shifts
• Batch Mode Operation: Functions offline during collection cycles; no continuous network or cellular connection required

Deployment Considerations:

• Batch-mode workflow requires defined sync windows and WMS integration architecture to handle deferred data transfer
• IrDA connectivity demands line-of-sight to cradle or receiver; confirm serial gateway infrastructure compatibility before deployment
• LCD display (100 x 64) provides status confirmation but no graphical interface; train operators on audio/haptic feedback for scan confirmation
• Drop specification (1.2m/4ft, 5 drops per side) validates durability for typical warehouse handling; protective case recommended for high-impact environments

The M8001LSC20001 is a practical choice for organizations seeking reliable, long-battery 1D scanning without the cost or complexity of full mobile computer platforms. Validate IrDA integration points and batch sync intervals with your WMS team before rollout.
