Overview
SKU:
M2564ESC30001
Condition:
New
Availability:
Backorder Available — Contact for ETA
Warranty
2-Year Warranty

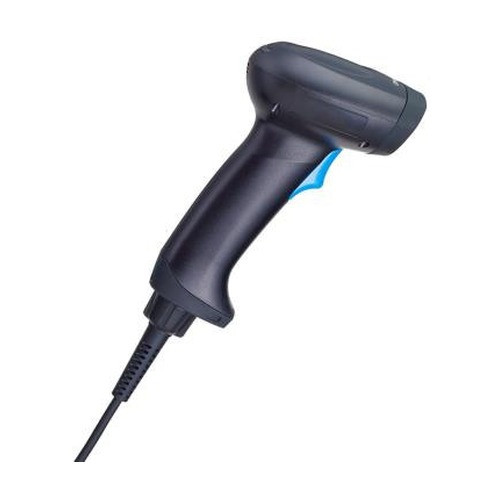

Cipherlab M2564ESC30001 1D Linear Imager Barcode Scanner
Cipherlab M2564ESC30001 1D Linear Imager Barcode ScannerOverviewThe Cipherlab M2564ESC30001 is a compact 1D linear imager designed for warehouse, reta…
Cipherlab M2564ESC30001 1D Linear Imager Barcode Scanner
$255.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
M2564ESC30001
Condition:
New
Availability:
Backorder Available — Contact for ETA
Warranty
2-Year Warranty
Description
Cipherlab M2564ESC30001 1D Linear Imager Barcode Scanner
Overview
The Cipherlab M2564ESC30001 is a compact 1D linear imager designed for warehouse, retail, and logistics operations requiring fast, reliable barcode capture. Built with IP65 dust and water resistance, it delivers 578 scans per second with a maximum read range of 60 cm (23.6 inches) on 20 mil Code 39 barcodes. The 3 mil minimum resolution and 15% print contrast requirement support high-density labeling environments.
Connectivity & Performance
Bluetooth connectivity enables wireless integration with mobile computers and enterprise management systems. Auto-sense and continuous scan modes adapt to dynamic warehouse workflows. Supports 30+ 1D symbologies including Code 39, Code 128, UPC/EAN, GS1 DataBar, Interleave 2 of 5, and ISBT-128 for healthcare and logistics compliance.
Durability
IP65 rating provides protection against dust ingress and water spray, meeting typical warehouse environmental demands. Black and white color options integrate into various operational contexts.
Specifications
Product Type:
1D Barcode Scanner
Connectivity:
Bluetooth
Form Factor:
Handheld
IP Rating:
IP65
Scan Engine:
1D
Scan Range:
Code 39 3 mil: 3 to 10 cm/ 1.2 to 3.9 in. Code 39 5 mil: 2 to 14 cm/ 0.8 to 5.5 in. UPCA 13 mil: 0.5 to 38 cm/ 0.2 to 15 in. Code 39 20 mil: 1.5 to 60 cm/ 0.6 to 23.6 in.
Resolution:
3 mil
Bluetooth:
Bluetooth
Cable_Category:
Linear Imager
Color:
Black, Register White
Min_Print_Contrast:
15%
Scan_Pattern:
Auto-sense and continuous modes
Scan_Rate:
578 scans/ second
Scanner_Type:
Handheld
Symbologies:
Codabar; Code 39; Code 93; Code 128; GS1 DataBar (RSS); Industrial 2 of 5; Interleave 2 of 5; ISBT-128; Italian and French Pharmacodes; Matrix 2 of 5; MSI; Plessey; Telepen; UPC/EAN/GS1-128; Code 11
Symbologies_1D:
Codabar; Code 39; Code 93; Code 128; GS1 DataBar (RSS); Industrial 2 of 5; Interleave 2 of 5; ISBT-128; Italian and French Pharmacodes; Matrix 2 of 5; MSI; Plessey; Telepen; UPC/EAN/GS1-128; Code 11
