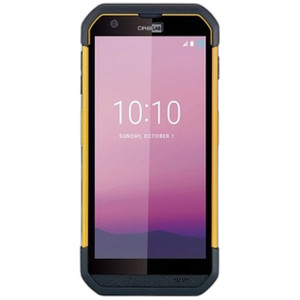

CipherLab AS36S4GF4SUG1 WiFi6 Rugged Android Mobile Computer
Overview
The CipherLab AS36S4GF4SUG1 is a rugged handheld mobile computer designed for warehouse, logistics, and field asset-management workflows. It combines IP65 environmental protection with WiFi6 connectivity, enabling fast transaction processing in high-density facility environments where multiple devices compete for bandwidth. The device runs Android, integrates with standard warehouse management systems (WMS) and enterprise resource planning (ERP) platforms, and delivers the processing power, storage, and durability needed for sustained inventory, fulfillment, and asset-tracking operations. This is a workhorse device, not an entry-level reader.
Key Features
- WiFi6 Connectivity: Modern 802.11ax standard delivers faster, more efficient data transfer than WiFi5, a real advantage when you're deploying dozens of devices in a single warehouse. Less congestion means fewer retransmissions and lower latency during barcode lookups and database queries — measurable in high-density scan-intensive environments.
- IP65 Environmental Rating: Protects against dust ingress and water jets without requiring protective cases. Dock operations, yard work, and outdoor inventory don't require additional housings. Limits you to splash and dust exposure; if full submersion is required (water tank monitoring, aquatic facilities), you'll need IP67 or higher.
- Qualcomm Octa-core 2GHz Processor: Eight cores running at 2GHz deliver responsive performance for simultaneous barcode scanning, local database queries, and offline inventory caching. Multi-threaded workloads complete faster, reducing operator wait times during peak scanning cycles.
- 4GB LPDDR4X RAM with 64GB UFS Flash Storage: 4GB is sufficient for enterprise mobile applications and local caching of product databases, enabling offline operation during network disruptions — a critical feature in facilities with spotty WiFi coverage in certain zones. 64GB storage supports extended field operations without constant synchronization, and UFS flash (faster than eMMC) cuts application load times.
- Micro SD Expansion up to 2TB (SDXC): Expands capacity for firmware updates, portable databases, and backup logs. SDHC cards support up to 32GB; SDXC up to 2TB. Useful for deploying database snapshots across multiple devices without touching your network.
- 4000mAh Battery with 288g Form Factor: Achieves full-day runtime on a typical warehouse shift (eight to ten hours depending on scanning intensity and WiFi usage). At 288 grams (10.2 oz), the device is light enough for prolonged handheld use without inducing operator fatigue during high-volume picking and packing cycles.
- Rear 16MP Camera with Phase-Detect Autofocus and LED Flash: High-resolution imaging enables capture-based documentation for damage assessment, barcode imaging in low-light dock areas, and asset verification workflows. Phase-detect autofocus reduces focus lag on small barcodes; LED flash compensates for dock lighting gaps.
- Front 5MP Camera: Supports video conferencing and remote expert assistance, useful when field technicians need real-time guidance from warehouse management or logistics planners.
- 80dB Speaker and Dual Microphones with Echo/Noise Cancellation: 80dB output at 40cm ensures alert and notification audibility in high-noise warehouse environments (forklifts, conveyor systems). Dual mics with active noise and echo cancellation maintain clarity during voice-directed picking operations and hands-free calls on noisy dock floors.

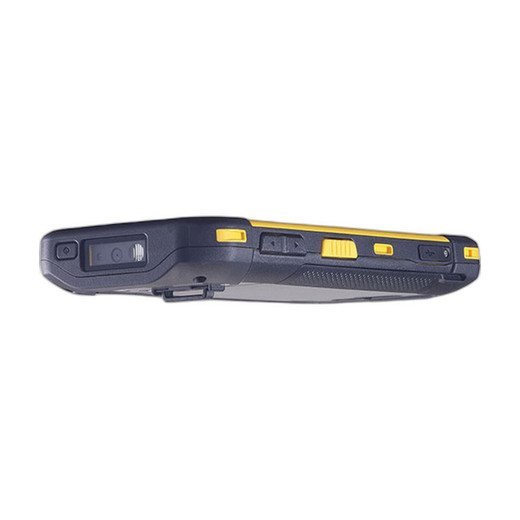

- Programmable Hardware Controls: Single programmable key, volume controls, left/right trigger keys, and power button enable rapid access to critical scanning and data functions without screen navigation. Reduces screen interaction time in fast-paced environments and supports custom workflows specific to your WMS configuration.
- 1-Year Standard Warranty: Covers manufacturer defects during deployment and evaluation phases.
Integration & Compatibility
The AS36S4GF4SUG1 runs Android, ensuring compatibility with standard warehouse management systems (WMS), ERP platforms, and custom mobile applications built on the Android framework. Mobile computers in this class integrate via WiFi6 or hardwired Ethernet, with the AS36S4GF4SUG1 supporting wireless deployment. Micro SD expansion enables offline database functionality and eliminates dependency on constant network connectivity during zone-level operations. Hardware trigger keys and programmable buttons integrate directly with barcode scanning workflows, minimizing retraining. For facilities with legacy serial-based scanners or specialized hardware interfaces, verify custom application compatibility before rollout.
What's in the Box
The AS36S4GF4SUG1 is supplied with a USB connectivity kit for device charging, data transfer, and firmware configuration. Verify with your reseller on exact contents, as kit composition may vary by region or purchasing agreement.
Frequently Asked Questions
Q: Will the AS36S4GF4SUG1 work offline if the WiFi network goes down?
A: Yes. With 4GB RAM and 64GB local storage, you can cache product databases and transaction logs locally. The device continues scanning and data entry; transactions synchronize once the network returns. Micro SD expansion further extends offline capacity for database snapshots.
Q: Is the AS36S4GF4SUG1 suitable for outdoor dock operations?
A: IP65 rating protects against dust and water jets, making it suitable for dock, yard, and covered outdoor environments. Not rated for full submersion or heavy rain sustained over hours. If you need IP67 (temporary submersion), check with CipherLab on alternative models in the RS36 family.
Q: What's the battery life on a typical shift?
A: The 4000mAh battery delivers full-day (eight to ten hour) runtime on standard warehouse shifts. High-intensity scanning with WiFi6 enabled and video conferencing will reduce that; lower-intensity scanning with periodic WiFi only extends it. Real-world testing in your environment is recommended before full rollout.
Q: Can I integrate the AS36S4GF4SUG1 with our existing WMS?
A: The device runs Android and connects via WiFi6, so it works with any WMS or ERP that supports Android mobile clients or standard web services. Verify with your WMS vendor that they test and support this specific model before procurement.
Q: Does the AS36S4GF4SUG1 require a separate power supply, or does it use PoE?
A: The device charges via USB (included kit). It is not a PoE device and does not draw network power. You'll need USB power outlets or charging docks at your depot or facility to recharge between shifts.
Q: What camera features are useful for barcode scanning?
A: The rear 16MP camera with phase-detect autofocus and LED flash is designed for barcode imaging in low-light dock environments. The front 5MP camera supports video conferencing for remote support, not scanning. The rear camera can also handle damage assessment and asset documentation workflows.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CipherLab AS36S4GF4SUG1 is a solid mid-tier warehouse mobile computer that hits the key marks for high-throughput scanning operations. The WiFi6 and 4GB RAM pairing is the real story here — in facilities with dozens of active mobile devices, WiFi6's efficiency reduces packet loss and latency measurably. The octa-core processor keeps barcode lookups snappy, and 64GB onboard storage plus up to 2TB micro SD expansion means you can cache entire product databases locally, so network outages don't stop picking.
Technical Highlights:
- WiFi6 + 4GB RAM: Combined, these reduce transaction latency in congested warehouse networks. WiFi6 (802.11ax) is roughly 40% more efficient than WiFi5 in dense device deployments, translating to fewer retransmissions and faster barcode lookups during peak picking cycles.
- 64GB UFS Storage + Micro SD to 2TB: UFS flash is 2–3x faster than eMMC, cutting app load times. 64GB handles several complete product databases; Micro SD expansion enables deployment of regional snapshots to individual devices without network sync overhead.
- IP65 + 288g Weight: Splash and dust protection without a protective case, and light enough (10.2 oz) that an operator picking for eight hours won't suffer wrist or shoulder fatigue common with heavier units.
- 16MP Rear Camera with PDAF + LED Flash: Phase-detect autofocus eliminates the lag you get with passive autofocus when scanning small barcodes. LED flash is essential in poorly lit dock zones where ambient light fails barcode readers.
Deployment Considerations:
- WiFi6 only works if your facility's access points support 802.11ax. Older WiFi5 deployments will fall back to 5GHz or 2.4GHz standards, losing the bandwidth advantage. Verify AP firmware and coverage before rollout.
- USB-only charging means you'll need dedicated charging infrastructure (dock or powered cart) at your facility. No built-in fast-charging; plan 2–4 hours per recharge cycle depending on charger spec.
- The 5MP front camera is marketed for video conferencing, but in noisy dock environments, the dual mics and echo cancellation will do more work than the camera. Test voice clarity during a live picking simulation before committing to hands-free picking workflows.
Deploy the AS36S4GF4SUG1 in high-throughput scanning operations (pick-pack-ship, cross-dock, inventory audits) where WiFi6 coverage exists and offline database caching aligns with your operational model. It's not the lightest or the most rugged, but it delivers solid performance-per-dollar for facilities with modern network infrastructure. Skip it if you're still on WiFi5 or require IP67 submersion.
