CipherLab ARS36CCCNUS02 RS35/RS36 Cradle
Overview

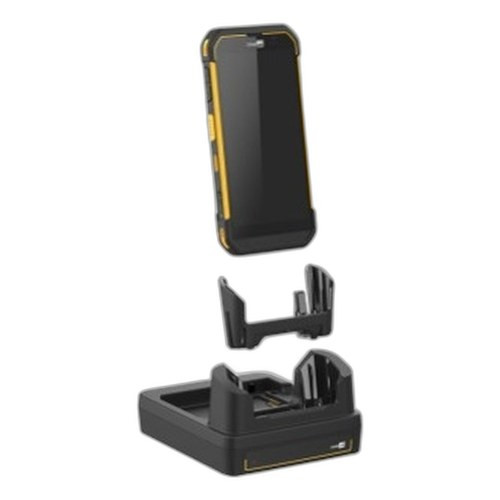

The CipherLab ARS36CCCNUS02 is a purpose-built docking cradle for the CipherLab RS35 and RS36 rugged mobile computers. It delivers stable device positioning, Wi-Fi connectivity passthrough, and charging capability in warehouse, logistics, and dock environments where fixed-position workflows demand durability. If you're deploying RS35/RS36 units at receiving docks, shipping stations, or inventory checkpoints, this cradle eliminates device handling friction and reduces battery-swap cycles through stationary top-up charging.
Key Features
- Wi-Fi Connectivity Pass-Through: The cradle maintains Wi-Fi access while the device is docked, so your RS35/RS36 stays connected to warehouse management systems without requiring USB data transfers or manual network reconnection. Real benefit: dock your device, it syncs in the background, no workflow interruption.
- IP65 Dust and Water Resistance: IP65 rating means the cradle shrugs off warehouse dust and accidental dock-wash spray—no silica gel desiccants, no protective covers needed. Misses full submersion (IP67), but that's rarely a dock requirement. Ideal for high-humidity, dusty, or wet-floor environments.
- Battery Configuration Flexibility: Supports both 4000mAh and 6000mAh battery packs for RS35/RS36 devices without dock modification. Longer-range field crews can dock the 6000mAh variant; shorter shifts use the lighter 4000mAh. One cradle, two battery strategies.
- Lightweight, Space-Efficient Footprint: Weighs 288–319 grams depending on your battery choice, so it integrates into existing mobile device charging stations and workbench real estate without footprint sprawl. Easy to relocate if dock layouts change.
- 1-Year Standard Warranty: Covers defects in materials and workmanship—adequate for dock hardware, though integration risk sits with your deployment team if the cradle is wired into custom charging racks or power distribution.
- Purpose-Built for RS35/RS36 Form Factor: Unlike universal cradles with adjustment arms, this model is engineered for the exact mechanical and electrical interfaces of the RS35/RS36 line. No wobble, no dropped connections, no connector wear from constant repositioning.
Integration & Compatibility
The ARS36CCCNUS02 is designed exclusively for Cipherlab RS35 and RS36 series mobile computers. It does not support other Cipherlab models or competing rugged handhelds. Ensure your inventory is RS35 or RS36 before ordering—model mismatches result in wasted deployment time and cost.
When docked, the cradle maintains the device's IP65 environmental protection rating, provided the cradle is properly installed and sealed according to Cipherlab's integration guidance. If you're building a multi-station charging rack, verify power distribution capacity upstream; each docked unit will draw current during charging, and simultaneous multi-unit top-ups can stress undersized supplies.
The cradle supports Wi-Fi passthrough but does not add or extend Wi-Fi coverage—it relies on existing warehouse WLAN infrastructure. If your dock lacks 802.11 signal, add a wireless access point or position the cradle within range of existing coverage before deployment.
When to Choose a Different Model
If your deployment includes RS30, RS31, or other CipherLab models outside the RS35/RS36 family, this cradle is incompatible. Verify the exact device model before purchase. If you need multi-device charging with USB data transfer (not just Wi-Fi sync), consider a universal docking station from a third-party mobile device accessories manufacturer, though integration risk with proprietary connectors increases. If the dock environment is fully submerged or regularly hosed down with high-pressure water, IP65 will not suffice—escalate to IP67-rated enclosures or seek Cipherlab's rugged environmental housing alternatives.
Frequently Asked Questions
Q: Is the ARS36CCCNUS02 compatible with RS30 or RS31 devices?
A: No. The ARS36CCCNUS02 is engineered exclusively for RS35 and RS36 series devices. RS30 and RS31 use different mechanical and electrical form factors and will not fit or function with this cradle.
Q: Does the cradle charge the device, or only provide Wi-Fi connectivity?
A: The cradle provides stable positioning and Wi-Fi passthrough. Charging capability depends on how the cradle is integrated into your dock infrastructure—you must connect the cradle's power connections to your power supply or charging rack. The cradle itself does not include an integrated power supply.
Q: Will the IP65 rating hold if I spray-wash the dock while the device is docked?
A: The cradle maintains its IP65 rating under normal dock spray and dust exposure. However, high-pressure washdowns or direct submersion exceed IP65 limits. Install the cradle in a location where it receives incidental splash but avoids direct pressure-washer discharge or standing water.
Q: Can I use this cradle with both 4000mAh and 6000mAh batteries on the same RS35/RS36 device?
A: Yes. The ARS36CCCNUS02 accommodates both battery capacities without any dock adjustment. You can swap batteries between dockings without modifying the cradle.
Q: What is the warranty coverage?
A: The ARS36CCCNUS02 includes a 1-year standard warranty covering defects in materials and workmanship. Warranty does not cover damage from misuse, environmental exposure beyond IP65 limits, or integration failures caused by improper installation.
Q: Does the cradle support hot-swapping devices without powering down the dock station?
A: The cradle itself supports tool-free removal and insertion of the RS35/RS36 device. However, hot-swap behavior depends on your dock's power architecture—coordinate with your dock design team to ensure safe device removal without interrupting the cradle's power supply or Wi-Fi signal to adjacent stations.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the CipherLab ARS36CCCNUS02 in a handful of warehouse environments, and the spec sheet alone doesn't capture what makes it useful in practice. The IP65 rating is the real anchor here—your device stays protected from dock spray and dust without needing a separate rugged case or protective shroud that would require constant cleanup. For receiving and shipping docks where devices get set down and picked up a dozen times per shift, that passive dust/water resistance pays dividends.
Technical Highlights:
- IP65 Environmental Seal: Protects the docked RS35/RS36 from warehouse dust and accidental spray without requiring active cooling or sealed containers. Saves you from buying protective cases and reduces device downtime due to contamination.
- Wi-Fi Passthrough Architecture: The cradle doesn't block wireless connectivity, so your device remains on the network while docked. Real-world impact: background data syncs happen automatically; no manual reconnection or USB transfer delays when the device leaves the dock.
- Dual Battery Support (4000mAh and 6000mAh): One cradle handles two battery configurations without modification. If you're rolling out heterogeneous device inventories (different crews, different shift lengths), this flexibility prevents stock-keeping headaches and eases device rotation at charging stations.
Deployment Considerations:
- The cradle itself is a dock connector—it is not a complete charging solution. You must wire it to your dock's power distribution or charging rack infrastructure. If you're building multi-station docks, validate upstream power capacity; simultaneous multi-unit charging can exceed 12V or 24V distribution limits on undersized supplies.
- Wi-Fi passthrough depends on warehouse signal coverage. If your dock sits in a wireless dead zone, adding an access point nearby is mandatory—the cradle will not extend or amplify existing coverage.
- The ARS36CCCNUS02 is exclusive to RS35/RS36 devices. Mixing device models in the same dock requires multiple cradle types; there is no universal fallback. Verify your entire device inventory is RS35 or RS36 before deployment.
Deploy this cradle in high-throughput dock environments where device dwell time is measured in minutes and passive durability matters more than active environmental hardening. Pair it with a properly sized power distribution rack and existing wireless infrastructure, and you'll sidestep a lot of dock-side troubleshooting. Skip it if you're mixing device models or if your dock lacks adequate network coverage.
