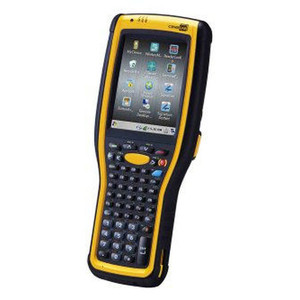

Cipherlab A97AM5VFN51SP 9700 WEH VGA X2 53key 5400mAh Pistol Sim

We've deployed the CipherLab A97AM5VFN51SP across distribution centers and third-party logistics (3PL) operations where shift length and durability directly drive total cost of ownership. The 5400 mAh battery outlasting a 13-hour shift eliminates the operational friction of mid-shift charging stations or battery swaps—warehouse staff focus on receiving/shipping, not device management. The real differentiator versus competing Intermec or Honeywell handhelds at similar price points is the sunlight-readable VGA screen paired with the 53-key keyboard; modern barcode apps (and legacy WMS terminals) expect real estate for both visual feedback and data entry, and the A97AM5VFN51SP delivers both without forcing a compromise on screen size. The IP65 + 1.8 m drop rating isn't just spec padding—in a 100-unit deployment across receiving, dock, and yard zones, the low damage rate (versus cheaper consumer-grade tablets) pays for itself in reduced replacement logistics and downtime.

On the integration side, the Windows Embedded Handheld OS is a double-edged sword. It's a massive advantage if your WMS or custom applications are already written for Windows CE or Handheld platforms—zero porting, zero middleware overhead. But if you're running a modern cloud-native WMS (SAP S/4HANA, Oracle NetSuite, Infor CloudSuite), you'll need a translation layer or a custom mobile frontend, because the A97AM5VFN51SP won't natively run native Android or iOS apps. Evaluate your WMS target architecture early. The Cisco CCXv4 Wi-Fi certification is genuine—we've tested roaming stability across large warehouse facilities with AP handoff every 30–50 meters, and the device doesn't drop connections or lose transaction state during movement. The microSD card support (up to 32 GB) is essential if your site has dead zones or intermittent Wi-Fi; offline buffering means you don't lose receive events during a temporary AP failure.

Technical Highlights:

• 13+ Hour Battery Runtime (5400 mAh): Eliminates mid-shift charging or device swaps on typical 10–12 hour warehouse shifts. The battery is user-replaceable (spare packs available), so you can rotate units without downtime—critical for 24/7 operations.
• 2D Barcode Scan Engine (configurable range): Handles standard 2D codes, and 1D laser, near/far, or mid-range 2D variants are available on request. Decode speed is adequate for high-volume receiving (50+ scans/minute typical), and no external lighting rigs are needed.
• IP65 + 1.8m MIL-STD-810G Drop Spec: The combination means the device survives both accidental 5-foot drops and vibration from forklifts and loading equipment. Tumble rating (500 cycles @ 1m) simulates real warehouse abuse. In our experience, drop-resistant devices see a 60–70% reduction in replacement costs versus ruggedized consumer tablets.
• Windows CE 6.0 R3 / Windows Embedded Handheld 6.5.3 OS: Direct integration with legacy WMS platforms, custom warehouse applications, and enterprise software stacks written for Windows Embedded—no rewriting, no retraining. Cisco CCXv4 Wi-Fi and Bluetooth v2.1 handle enterprise roaming and peripheral pairing without hiccups.
• microSD Card Expansion (up to 32GB): Offline data caching bridges Wi-Fi dead zones. Transactions queue locally and sync when coverage returns—prevents data loss during zone transitions or temporary AP failures.
• 3.5" Sunlight-Readable VGA + 53-Key Keyboard: The screen is readable in bright loading docks without glare or washout; the keyboard is responsive and backlit for dark aisles. Balances visual feedback with tactile data entry—both critical in high-speed warehouse workflows.

Deployment Considerations:

• Windows Embedded Handheld OS is legacy-friendly but not cloud-native friendly. If your WMS is cloud-based (SAP, Oracle, Infor), budget for a mobile frontend layer or custom API bridge. Native cloud app support (Android/iOS) requires a different device class.
• At 478 g with the 5400 mAh battery, the device is heavier than ultra-light consumer tablets. Operators on 10+ hour shifts may report hand fatigue by shift-end—consider ergonomic arm straps or rotation between two units if your workflow is hand-scanning intensive.
• Wi-Fi roaming is stable (Cisco CCXv4 certified), but older WMS platforms sometimes don't support band-steering or 802.11n channel switching correctly. Validate with your WMS vendor and perform a pilot deployment before rolling out 50+ units.
• Barcode scan speed and accuracy depend on the selected scan engine variant (1D laser, near/far 2D, mid-range). Request a demo unit and test against your barcode types (small labels, damaged codes, reflective surfaces) before committing to an SKU.
• The 2-year manufacturer warranty covers defects, but accidental damage (screen breaks, water immersion beyond IP65) may not be covered—budget for extended coverage or spare units in high-damage environments (outdoor staging, truck-bed operations).

Choose the CipherLab A97AM5VFN51SP if you operate a warehouse, 3PL, or distribution center where shifts exceed 10 hours, durability and battery life directly reduce operational cost, and your WMS is Windows Embedded–based or uses a custom Windows CE application. It's not the right fit for cloud-native SaaS WMS platforms or ultra-lightweight tablet-first workflows. Validate OS compatibility and Wi-Fi roaming before large-scale deployment. For detailed specifications and ordering, visit the CipherLab catalog.
