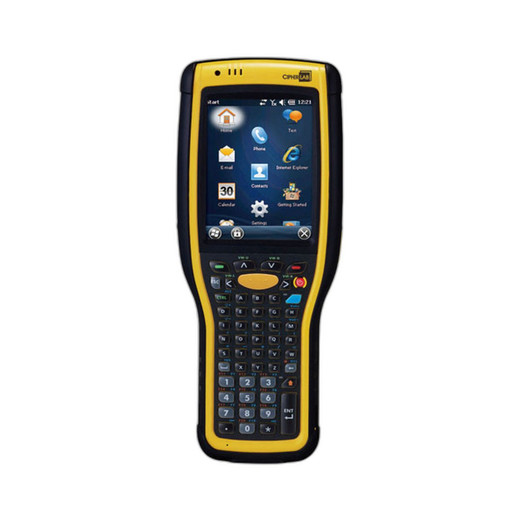

Cipherlab A97AM1CLN31S1 9700 2D Laser Handheld Scanner
The Cipherlab A97AM1CLN31S1 is a rugged mobile computer designed for warehouse and logistics operations requiring durable field data capture. Built on Windows CE 6.0 R3 or Windows Embedded Handheld 6.5.3, this handheld scanner integrates 2D laser scanning with integrated WiFi connectivity, making it suitable for real-time inventory tracking, receiving, and order fulfillment workflows where network access is essential.
Overview
The A97AM1CLN31S1 delivers enterprise-grade durability in a compact 447g form factor (with 3600mAh battery). The device combines a TI OMAP 3730 1GHz processor with 512MB DDR SDRAM and 4GB NAND FLASH storage, providing sufficient performance for multi-tasking warehouse applications. The 3.5-inch sunlight-readable VGA/QVGA touchscreen with LED backlight ensures visibility in indoor and outdoor dock environments, while the resistive touch panel maintains accuracy when wearing gloves.
Key Features
- 2D Laser Scan Engine: Captures both 1D and 2D barcodes, enabling compatibility with legacy UPC/EAN systems and modern 2D barcode standards
- IP65 Ruggedness Rating: Sealed against dust and water ingress, certified for warehouse and dock environments
- MIL-STD-810G Drop Certification: SGS-certified to survive 1.8 m multiple drops onto concrete, plus 500 tumbles at 1 m and 1000 tumbles at 0.5 m
- WiFi Connectivity: 802.11a/b/g/n for real-time synchronization with warehouse management systems; no cellular modem option
- 13-Hour Battery Life: Rechargeable 3.7V 3600mAh lithium-ion battery supports full shift operation without mid-day charging
- 30-Key Numeric Keypad: LED-backlit input with tactile feedback for manual data entry in low-light receiving areas
- 3.5-Inch Sunlight-Readable Display: VGA/QVGA TFT color LCD with LED backlight and resistive touchscreen for outdoor dock scanning
- Expandable Storage: microSD slot with SDHC support up to 32 GB for offline transaction logging
- Enterprise Operating System: Windows CE 6.0 R3 or Windows Embedded Handheld 6.5.3 with full support for legacy warehouse applications and custom development via .NET Compact Framework
- Compact Dimensions: 214 mm × 87 mm × 47 mm form factor designed for prolonged handheld use in picking and receiving operations
Integration & Compatibility
The A97AM1CLN31S1 integrates into WiFi-enabled warehouse networks via 802.11a/b/g/n connectivity. Windows CE and Windows Embedded Handheld support standard industry applications including warehouse management systems (WMS), enterprise resource planning (ERP) modules, and custom business logic. The device's 512MB DDR SDRAM and 4GB NAND FLASH provide adequate memory for multitasking and batch processing. The 30-key numeric keypad with LED backlighting supports manual SKU or location entry when barcode scanning is not applicable. MicroSD expansion (up to 32 GB) enables offline transaction caching for areas with intermittent network coverage, with synchronization upon reconnection.
Physical Specifications
Dimensions: 214 mm × 87 mm × 47 mm. Weight: 447 g (3600 mAh battery) or 478 g (5400 mAh battery option available). The device is engineered for balance between durability and portability, supporting 8–12 hour handheld operation in receiving, picking, and cycle counting roles.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Cipherlab A97AM1CLN31S1 during a regional logistics hub refresh. This device is a solid choice for organizations running Windows-based warehouse systems on WiFi networks with high drop risk. The 2D laser engine and IP65 rating make it practical for mixed indoor/outdoor dock work, and the 13-hour battery life reliably covers a full shift without mid-day charging interruptions.
Technical Highlights:
- Drop Resilience: MIL-STD-810G certification with SGS validation for 1.8 m concrete drops means the device will survive typical dock handling and occasional falls without field replacement
- WiFi-Only Architecture: No cellular modem — deployment requires robust WiFi coverage in receiving, dock, and yard areas; verify coverage before rollout
- Windows CE/Embedded Handheld OS: Well-suited for legacy WMS systems and custom .NET Compact Framework applications; confirm application compatibility before procurement
- Sunlight-Readable Display: The 3.5-inch resistive touchscreen with LED backlight performs well in outdoor dock and yard scanning; glove operation is supported
Deployment Considerations:
- Verify WiFi network capacity and coverage in dock staging areas, parking lots, and outdoor receiving zones before deployment; the A97AM1CLN31S1 does not support cellular fallback
- Test existing WMS and inventory applications on Windows Embedded Handheld 6.5.3 to confirm compatibility; older Windows CE 6.0 R3 images may require legacy application support
- Plan for device lifecycle: ensure spare batteries (3600 mAh or 5400 mAh variants) and charging infrastructure are in place for high-utilization receiving teams
- The 30-key numeric keypad is suitable for zone-based picking and location entry, but organizations requiring extensive manual data input may benefit from alphanumeric keypad variants
For warehouse and logistics operations with established Windows-based systems and reliable WiFi infrastructure, the A97AM1CLN31S1 delivers proven ruggedness and operational continuity. Confirm network topology and application compatibility early in the procurement cycle to avoid deployment delays.
