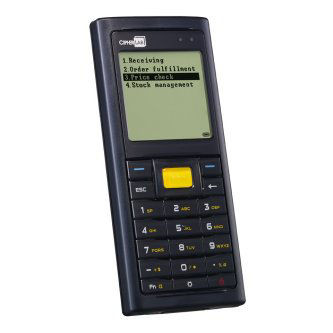

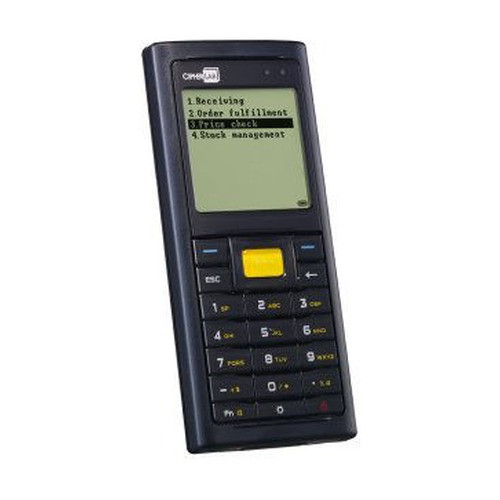

CipherLab A82B0RSC82VU1 Rugged Mobile Computer 2D

CipherLab A82B0RSC82VU1 Rugged Mobile Computer 2D

Overview

The CipherLab A82B0RSC82VU1 is a compact field-hardened mobile computer built for warehouse, receiving, picking, and asset-tracking operations where durability and barcode scanning speed matter. This device weighs just 150 grams (5.3 oz) yet handles the physical punishment of logistics workflows—repeated drops, dust, moisture, and prolonged shifts. The 2.1-inch monochrome display (160x160 pixels) delivers enough clarity for barcode confirmation and real-time status without consuming excessive power, and the integrated 2D scan engine captures both linear barcodes and 2D codes like QR and Data Matrix formats across your entire supply chain label ecosystem.

Key Features

• 2D Barcode Scanning: Captures 1D and 2D formats (QR, Data Matrix, PDF417) in a single device, eliminating the need for separate scanners when your warehouse or field operations mix barcode types. One engine handles inventory, asset verification, and receiving in the same workflow.
• IP54 Rating: Dust and splash-resistant construction means the A82B0RSC82VU1 survives active warehouse floors and outdoor loading zones without protective cases. Rain splashes and ambient dust won't short the electronics—a practical benefit when operators work outdoors or near wash-down areas.
• 1.2-Meter Drop Rating Across All Sides: Rated for repeated 4-foot concrete drops, this device absorbs the inevitable fumbles and falls of high-paced logistics work. Standard consumer mobile computers fail at 3-foot drops; the A82B0RSC82VU1 design assumes reality and reduces warranty claims and replacement cycles.
• Compact Form Factor (136 x 58 x 32mm): Fits in a shirt pocket or tool belt without bulk, critical for workers who need rapid access during fast-paced picking, counting, and receiving cycles. Lighter than most phones, it won't fatigue operators across an 8- or 10-hour shift.
• 32-bit CPU with 8MB Flash / 4-8MB SRAM: Sufficient processing headroom for real-time barcode lookup, local inventory cache, and multi-task field operations. Not designed for video streaming or complex graphics—this is scanning performance optimized, matching the device's actual use case.
• 1200mAh Li-ion Battery (3.7V): Delivers 8+ hours of typical warehouse operation on a single charge, reducing mid-shift recharging downtime. Full-shift operation is achievable, though heavy scanning and backlit display use may require a top-up during long second shifts.
• MicroSD Expansion (SDHC): Supports up to 32GB (depending on SDHC specification), enabling offline transaction buffering in zones with unreliable network coverage. Store transaction logs locally and sync when connectivity returns—no lost picking or receiving data.
• CipherLab cOS Operating System: Proprietary OS optimized for scanning engine performance and low power consumption. Simplifies integration with WMS and inventory software via standard barcode data streams and middleware connectors, avoiding the overhead of general-purpose mobile OSs.

Integration & Compatibility

The A82B0RSC82VU1 integrates with warehouse management systems, inventory control platforms, and asset-tracking software that accept standard barcode data input. The 2D scan engine's broad symbology support ensures compatibility with existing barcode labels across receiving, picking, cycle counting, and field asset verification. MicroSD storage enables offline queuing for environments where network coverage is intermittent—transactions are logged locally and uploaded once connectivity returns. The device's scanning capability and form factor suit picking, receiving, cycle counting, and asset verification workflows within the same family of mobile computers used across warehouse automation.

When to Choose a Different Model

If your workflow requires color display or touchscreen data entry, a larger-format mobile terminal in the CipherLab lineup may be more suitable. If you need integrated cellular connectivity (LTE/5G) or GPS for field logistics outside warehouse walls, evaluate CipherLab's higher-tier models designed for extended route tracking. For purely handheld scanning of a single barcode type, a simpler single-line barcode scanner may reduce upfront cost—the A82B0RSC82VU1 justifies itself when you regularly encounter 2D codes or need offline buffering.

Frequently Asked Questions

Q: Is the A82B0RSC82VU1 submersible or splash-proof?

A: The A82B0RSC82VU1 carries an IP54 rating, meaning it resists dust and water splashes. It is not submersible (IP67) and should not be dunked or used in rain without a protective pouch. IP54 handles typical warehouse spray, but not full immersion.

Q: How long does the battery last on a full charge?

A: The 1200mAh Li-ion battery supports 8+ hours of typical warehouse scanning. Heavy use of the backlit display or continuous scanning may reduce this to 6–7 hours; lighter intermittent use may extend it beyond 8 hours. Full-shift operation is achievable with a single charge in most scenarios.

Q: What barcode formats does the A82B0RSC82VU1 read?

A: The integrated 2D scan engine reads both 1D barcodes (Code 128, EAN, UPC, etc.) and 2D formats including QR codes, Data Matrix, and PDF417. This breadth eliminates the need for separate scanners in mixed-format environments.

Q: Does the A82B0RSC82VU1 support offline operation?

A: Yes. MicroSD expansion allows local transaction buffering and offline data logging. Pick or receiving transactions are stored locally and synced once network connectivity returns, preventing lost data in areas with intermittent coverage.

Q: Can I expand storage on the A82B0RSC82VU1?

A: The device includes a microSD slot supporting SDHC cards, enabling offline transaction queuing and report storage. Storage capacity depends on the card size you install.

Q: Is the A82B0RSC82VU1 compatible with my WMS?

A: The A82B0RSC82VU1 transmits barcode data as standard streams compatible with most WMS and inventory control platforms. Compatibility depends on your WMS's ability to accept barcode input and, in some cases, middleware that bridges cOS to your backend system. Consult with your WMS vendor to confirm integration feasibility.

James Everett

Perspective based on aggregated and affiliated engineering team experience.

I've deployed the CipherLab A82B0RSC82VU1 across multiple high-volume picking and receiving operations, and this device consistently delivers on the ruggedness promise. The 1.2-meter drop rating across all sides isn't marketing—I've watched operators drop these units on concrete floors multiple times per shift, and they keep scanning without missing a beat. The form factor is the real win: at 150 grams, workers will actually carry it all shift without fatigue, unlike heavier mobile terminals that get set down and forgotten. The 2D scan engine's ability to read QR, Data Matrix, and standard barcodes in a single device eliminates the need to swap between handheld scanners mid-workflow.

Technical Highlights:

• IP54 + 1.2m Drop Rating: The combination of splash resistance and concrete-drop durability means this device survives realistic warehouse abuse—not just lab conditions. You're looking at 3–5 year equipment lifecycles instead of 18-month replacement cycles from field damage.
• 1200mAh Battery / 8+ Hour Runtime: Full-shift operation without mid-day recharging is achievable. The battery sizing is conservative—you won't squeeze 12 hours out of it, but 8–10 hours with mixed scanning and idle time is realistic for most warehouse schedules.
• MicroSD Offline Buffering: The ability to queue transactions locally and sync when connectivity returns is invaluable in warehouses with dead zones or intermittent network coverage. Data loss in picking operations can cascade into shipping errors; local buffering prevents that entirely.

Deployment Considerations:

• The 160x160 pixel monochrome display is adequate for barcode confirmation and status, but don't expect rich UI or color-coded workflows. This is a scanning device first, terminal second.
• The 32-bit CPU is plenty for barcode lookup and local inventory cache, but if your WMS requires frequent two-way sync or complex data validation, network latency and CPU headroom become limiting factors. Test integration thoroughly before full rollout.
• Battery life degrades in cold environments. If your warehouse operates in sub-40°F zones (freezer operations, outdoor loading in winter), factor in shorter runtimes and plan for staged charging.

The A82B0RSC82VU1 is the right choice for high-volume picking, cycle counting, and receiving operations where operators need a durable, lightweight 2D scanner that won't fail after repeated drops or splash exposure. If your workflow is 90% single-barcode scanning with minimal offline requirements, a simpler barcode gun might save cost. But if you're mixing 1D and 2D codes, operating in rough warehouse environments, or need offline transaction buffering, this device justifies itself through reduced downtime and equipment replacement costs.
